3-6
Chapter 3. INSTALLATION
z
Model C15S (Socket mount type)
Items to be prepared:
Phillips-head screwdriver
DIN rail
Socket
Stopper
Stopper hole
Main unit

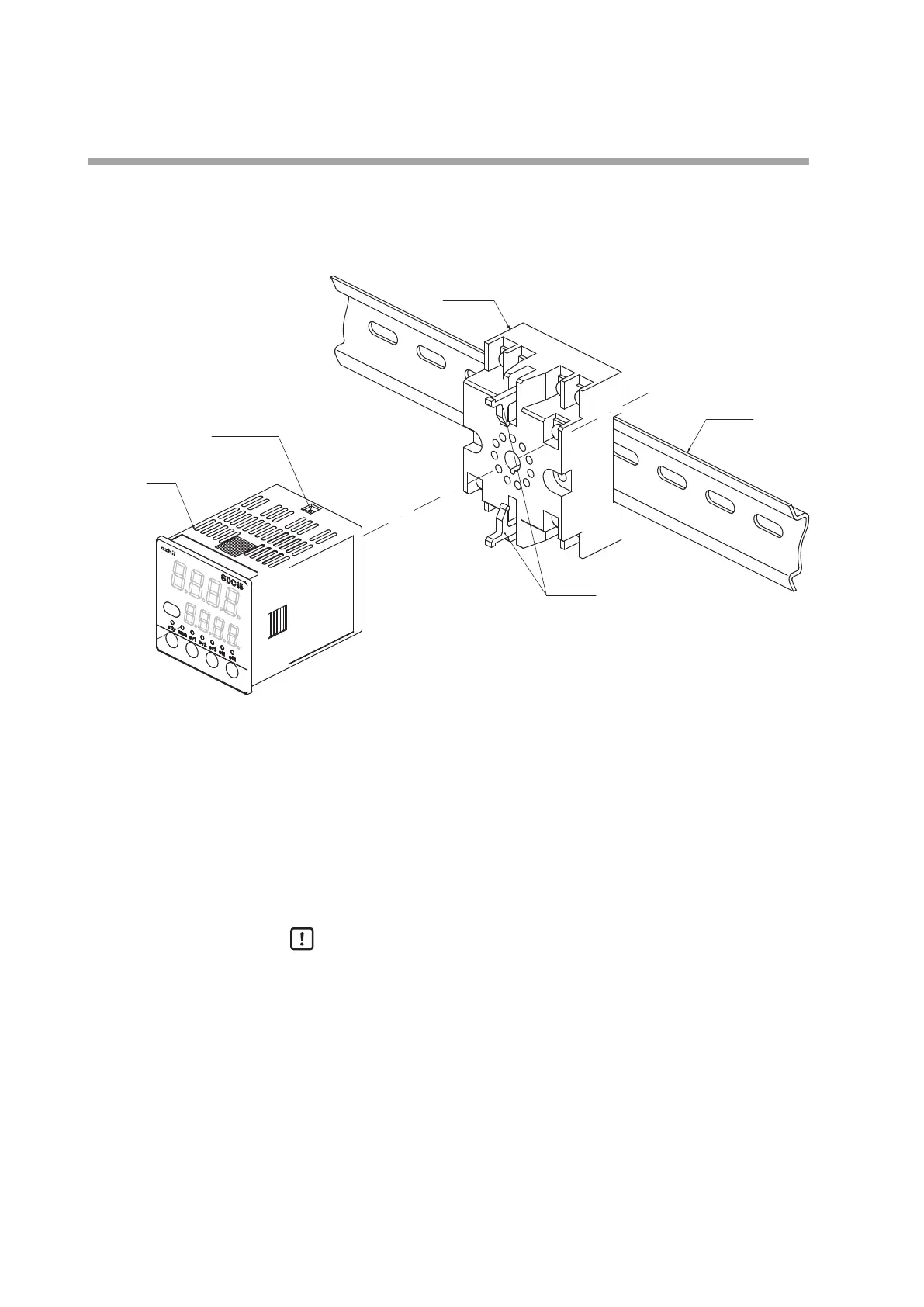

The above Figure shows the DIN rail mounting.
(1) Mount the socket inside the panel. (For screw tightening, mount the socket
directly.)
(2) Perform the wiring to the socket.
(3) Push this unit into the socket.
(4) Put the upper and lower socket stoppers in the stopper holes in the main unit,
and then insert them.
Handling Precautions
• For socket mount type, it is necessary that the wiring must be completed
before mounting this unit on the socket.
To Next Page
