3-12
Chapter 3. MOUNTING AND WIRING
z
Connector terminal block
Sometimes two or more connections must be made to the same pin during wiring.
In this case, use a connector terminal block. If you need a 20-core cable for the
connectors on the device and connector terminal block, contact the azbil Group or
your dealer.
Note
•
Recommended connector terminal block
Manufacturer: Toyo Giken
Model: PCN-1H-20
M ounting connector
HIROSE ELECTRIC CO., LTD., HIF3BA-20PA-2.54DSA
Compatible connector (other side)
HIROSE ELECTRIC CO., LTD., HIF3BA-20D-2.54R
This terminal block can be mounted directly on a DIN rail.

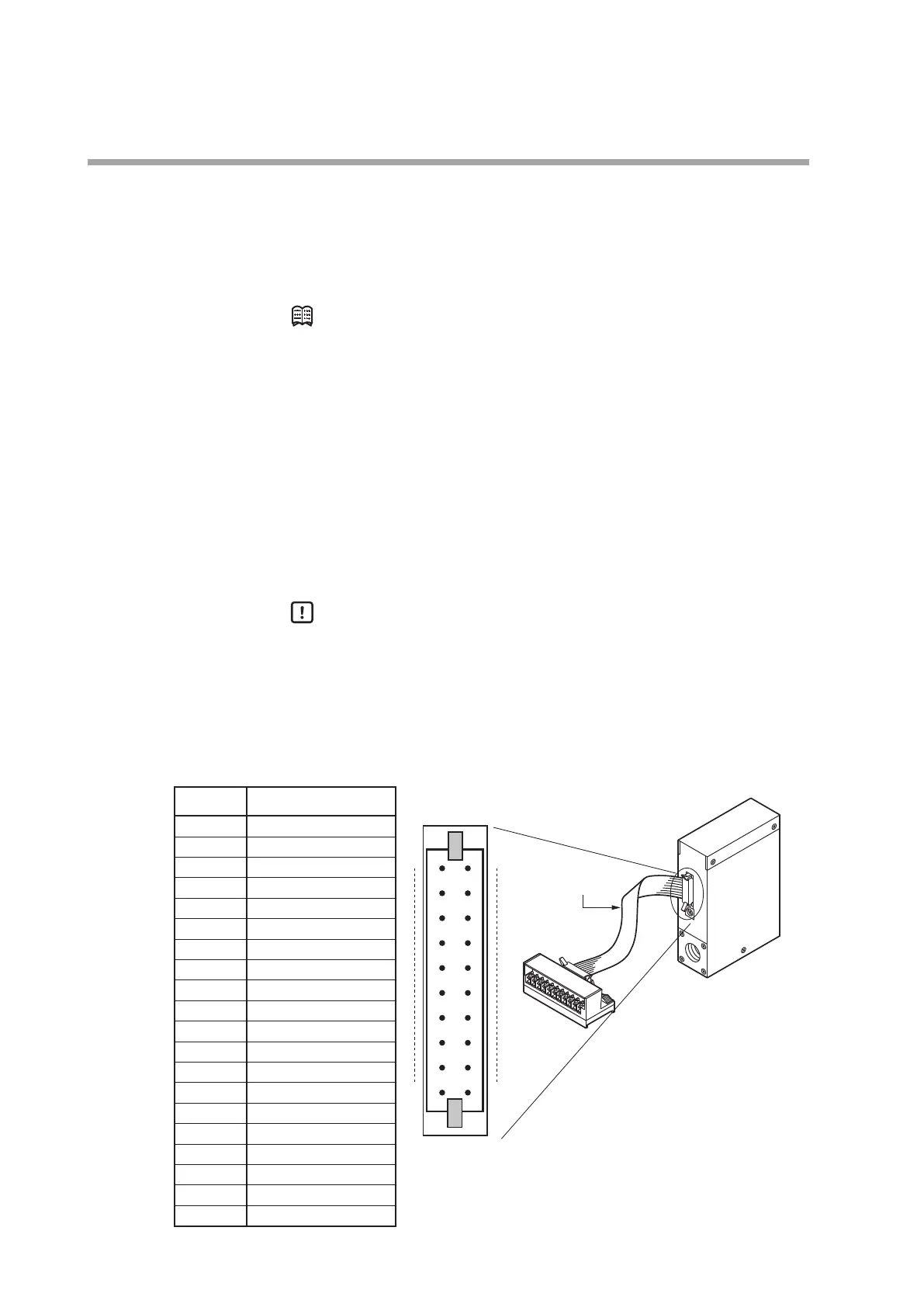

The following table shows the correspondence between connector pin Nos. and
terminal block Nos:
Handling Precautions
•
For details regarding the cable with connector on both ends, contact
the azbil Group. (The optional dedicated connector, 81446681-001 or
81446951-001, cannot be used to connect to the connector terminal
block.)
•
The specifications of the recommended connector terminal block are
subject to change. Contact the manufacturer beforehand for details.
Pin No. Terminal block No.
20 B-10
19 A-10
18 B-9
17 A-9
16 B-8
15 A-8
14 B-7
13 A-7
12 B-6
11 A-6
10 B-5
9 A-5
8 B-4
7 A-4
6 B-3
5 A-3
4 B-2
3 A-2
2 B-1
1 A-1
20
19
2
1
MQV
Connector terminal
block
Cable with connector
on both ends
