Azbil Micro Flow MQV9005 - Page 80

7-12
Chapter 7. SPECIFICATIONS
Note
•
The setup and display resolutions described above can be improved by reducing
the flow rate range using flow rate range setup
C-24
or
C-25
.
A still higher resolution can be set using the analog setup (
C-03
= 1). For more
information, 5 - 4 Flow Rate Range Change Function and Settings and
Display Resolutions After Change of Range (P.5-17).


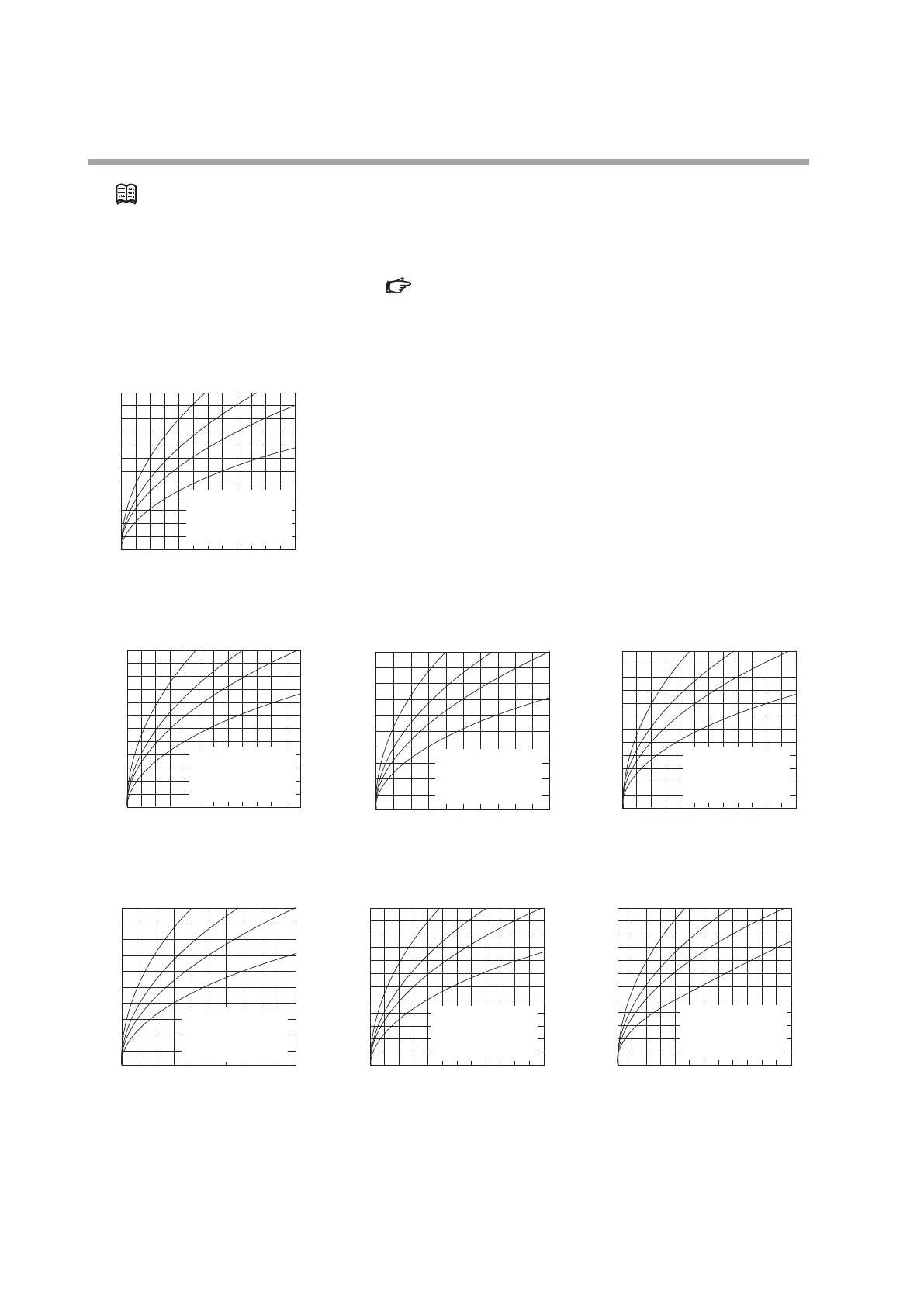

Relationship between differential pressure and flow rate
Condition: the valve is fully open in air.
z
MQV9005/9020
0 10 20 30 40 50
60
0
10
30
20
40
50
60
Dierential pressure [kPa]
Flow rate [mL/min(standard)]
(1)
(2)
(3)
(4)
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
z
MQV9200/9500/0002
0 10 20 30 40 50 60
0
40
120
80
160
200
240
Dierential pressure [kPa]
Flow rate [mL/min(standard)]
0 2 4 6 8 10
0.0
0.2
0.4
0.6
0.8
1.0
Dierential pressure [kPa]
Flow rate [L/min(standard)]
0 10 20 30 40 50
60
0.0
0.4
0.8
1.2
1.6
2.0
2.4
Dierential pressure [kPa]
Flow rate [L/min(standard)]
MQV0002MQV9200 MQV9500
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
(1) (2) (3)
(4)
(1)
(2)
(3)
(4)
(1)
(2)
(3)
(4)
z
MQV0005/0020/0050(B, C)
0 10 20 30 40 50 60
0
4
12
8
16
20
24
MQV0020
(1)
(2)
(3)
(4)
0 2 4 6 8 10
0
2
4
6
8
10
MQV0005
(1)
(2)
(3)
(4)
0 20 40 60 80 100
120
0
10
20
30
40
50
60
MQV0050(B, C)
(1)
(2)
(3)
(4)
Dierential pressure [kPa]
Flow rate [L/min(standard)]
Dierential pressure [kPa]
Flow rate [L/min(standard)]
Dierential pressure [kPa]
Flow rate [L/min(standard)]
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
Outlet pressure condition
(1) 150 kPa(gauge)
(2) 50 kPa(gauge)
(3) 0 kPa(gauge)
(4) –50 kPa(gauge)
