7-20
Chapter 7. SPECIFICATIONS
z

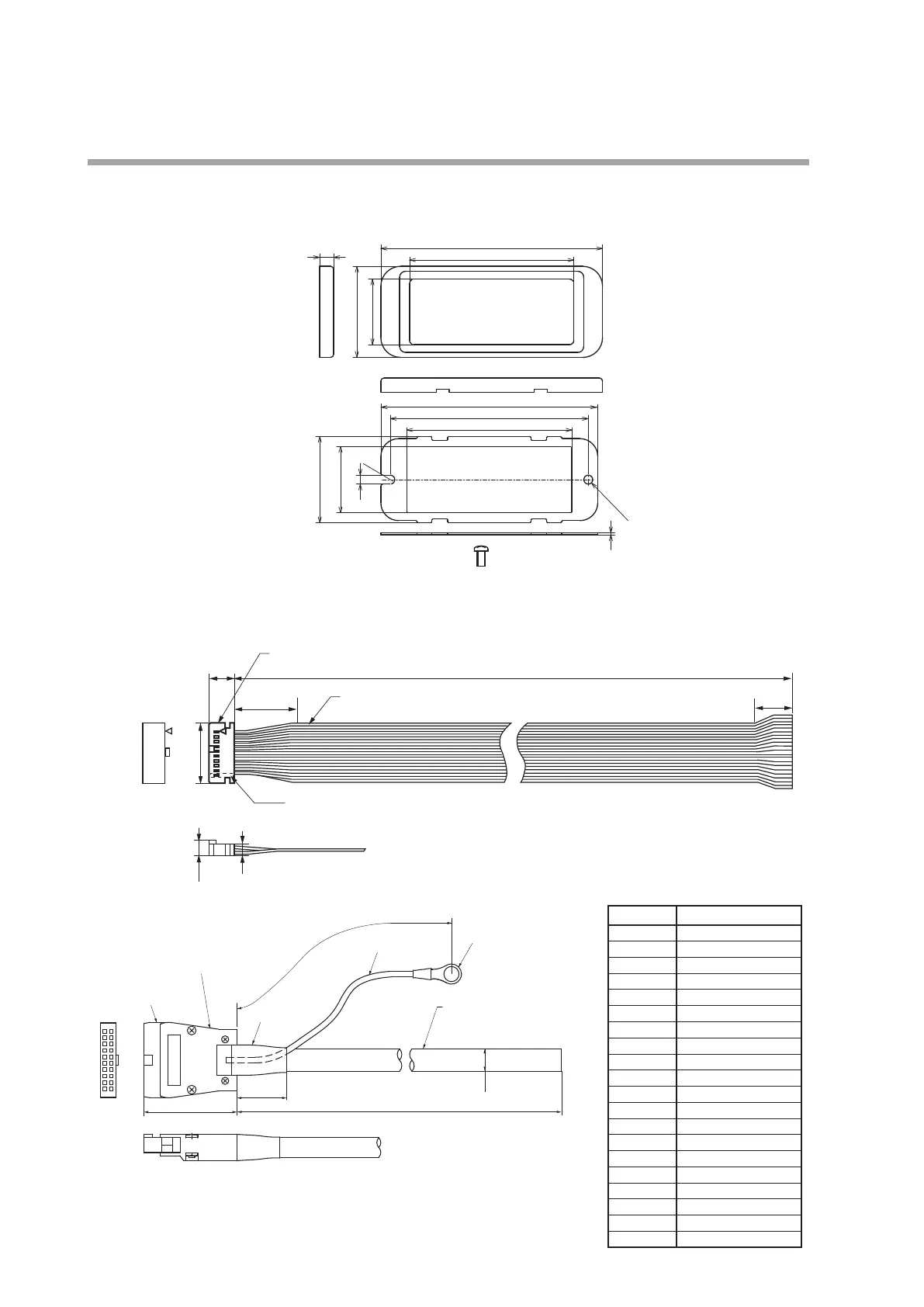

Front cover for separate display unit 81446858-001 Unit: mm
Mask
Material: PC/ABS
Color: Dark gray
M4 cross recessed head machine screws
for mounting (2), 7.5 mm long
Plate
Material: SPCC t1
Color: Black
109.6
43.6
100
112
7.1
1
4.5
46
83
33
83.4
33.4
(R)
4.5
hole
z
Cable with dedicated connector
z 20-wire flat cable 81446681-001 Unit: mm
1 3 5 7 9 11 13 15 17 19
2 4 6 8 10 12 14 16 18 20
End section
25 min.
End section
20 min.
(7.2)
(29.95)
(6)
(14.4)
Housing
HIROSE ELECTRIC CO., LTD. HIF3BA-20D-2.54C
Oki Electric Cable Company, Limited FLEX S20-7/0.2 (AWG #24)
Color: pin No.1, red; pin Nos. 5, 10 and 15, green; others, gray
Pin arrangement
2000 min.
Contact
HIROSE ELECTRIC CO., LTD. HIF3-2226SCC (20 P'ces) compatible lead: AWG#22 to #26
z 20-wire shielded cable 81446951-001
Ground terminal 3.7 ø
Ground wire
Pressure connection
female connector
Pressure connection type special hood
Pressure connection socket contact
Heat-shrinkable
tube
Cable
20-wire, conductor structure
7/0.2 mm
2
, coated wire
diameter 1.06 ø
200
HIF3-20CV
1
2
19
20
37
5000 min.
ø
8.9
19.7
Pin No.-lead wire color correspondence table
Pin No. Lead wire
1 Black
2 Black/White
3 Red
4 Red/White
5 Green
6 Green/White
7 Yellow
8 Yellow/White
9 Brown
10 Brown/White
11 Blue
12 Blue/White
13 Grey
14 Grey/White
15 Orange
16 Orange/White
17 Purple
18 Purple/White
19 Bright Green
20 Bright Green/White
