Aztech DSL600E User Manual

ADSL2+ Ethernet USB Combo Router – Easy Start
1.3.4 Back Panel Indicators (Ethernet Router)
Fig 1-5 shows the back panel indicators of the Ethernet Router.
4
3
2
1

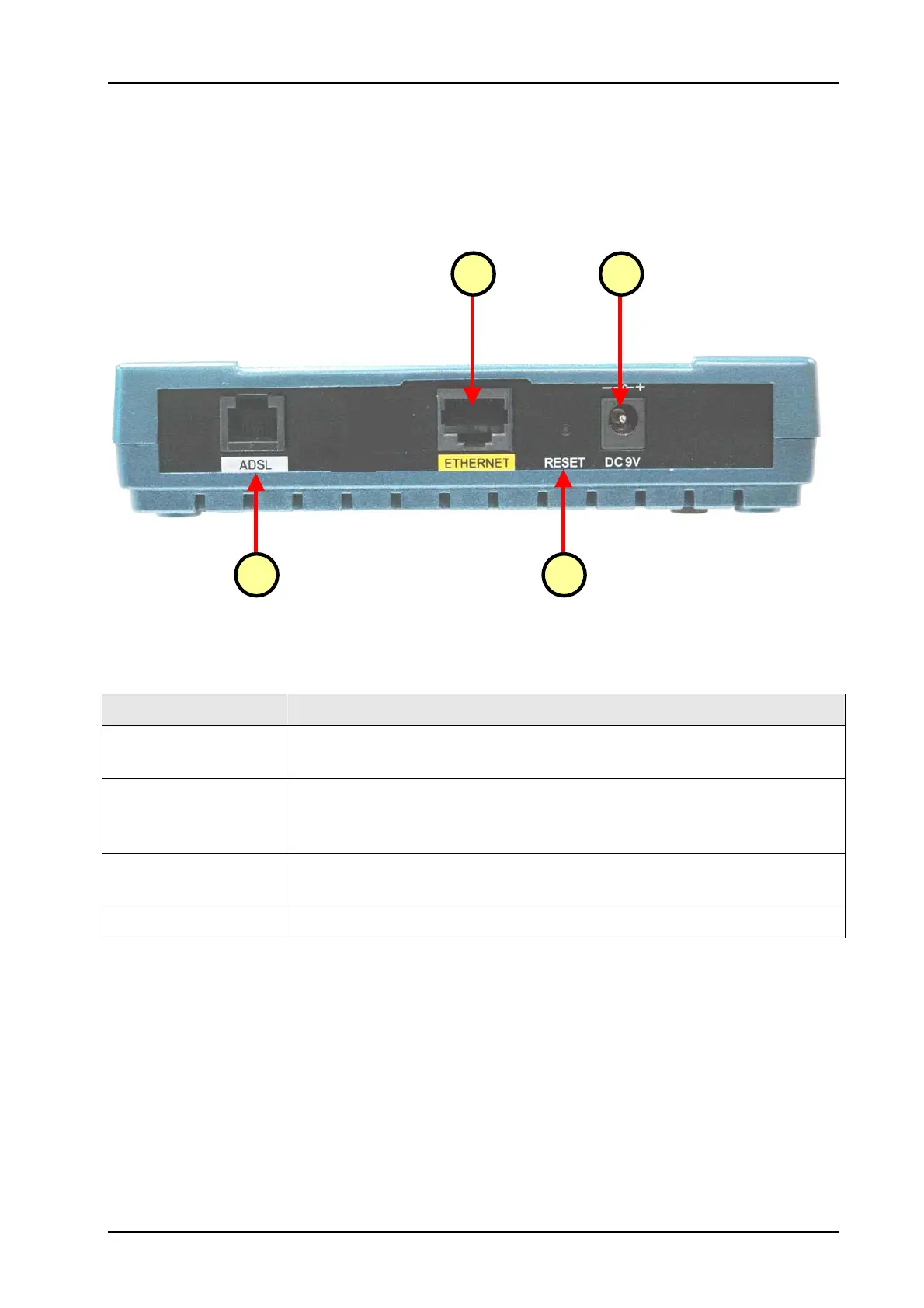

Figure 1-5 : Back Panel Indicators (Ethernet Router)
Label Description
1. DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket
(ADSL line).
2. ETHERNET
10/100 Base-T Auto-MDI/MDIX (allows either cross or straight cable)
Ethernet jack (RJ-45) to connect to your Ethernet Network card or
Ethernet Hub/Switch.
3. RESET
To reset the ADSL Router, simply press the reset button for about 10
seconds (all customised settings that you have saved will be lost!).
4. DC 9V
To connect to the Power Adapter that comes with your package.
Page 10 of 42
