Aztech DSL600E User Manual

ADSL2+ Ethernet USB Combo Router – Easy Start
Chapter 2 - Connecting the ADSL Router to Your PC /
Notebook
CAUTION !
Power off your Computer/Notebook or/and any connected devices before
connecting to the ADSL Router!
2.1 Connecting to the Ethernet

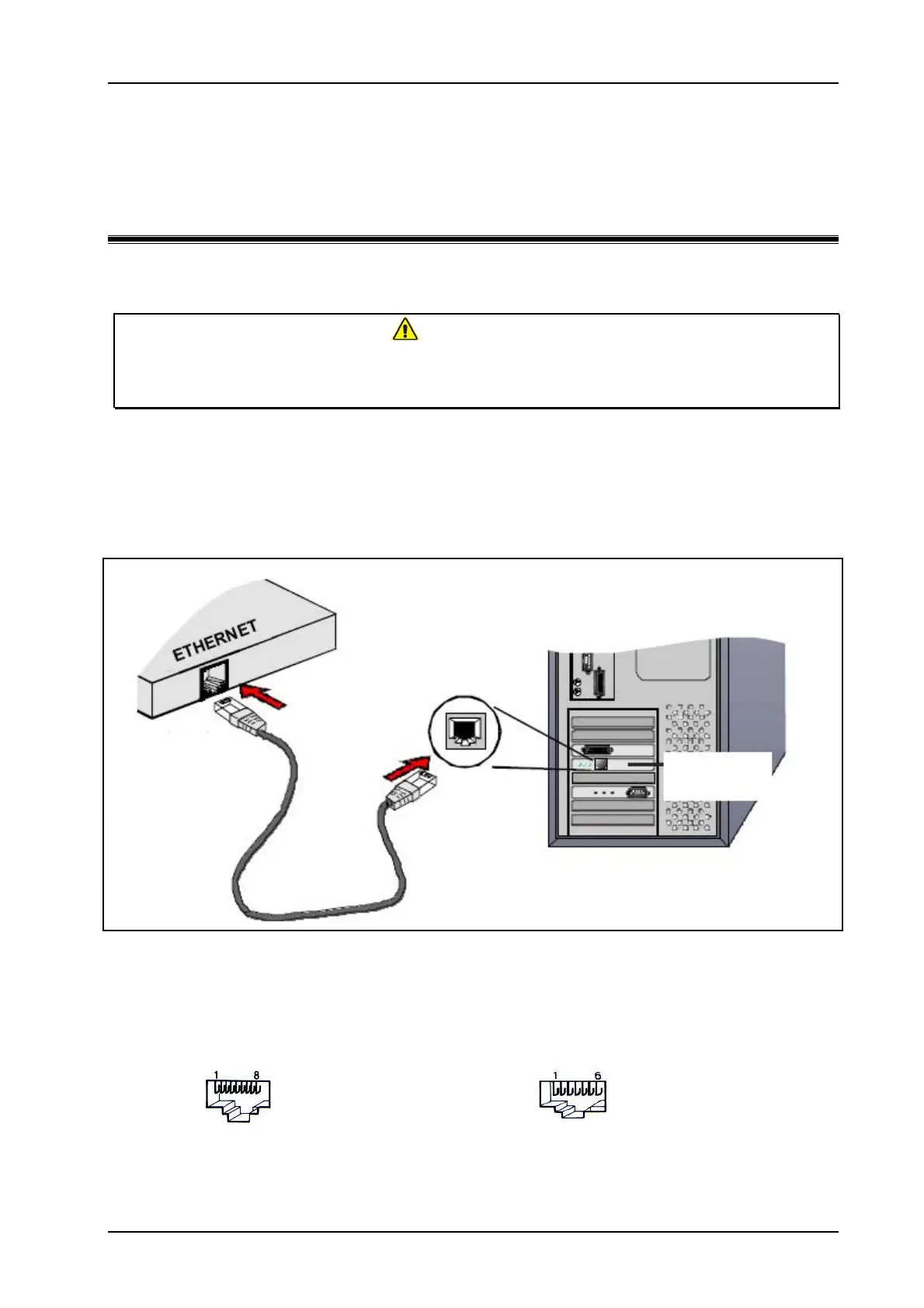

Connect your computer(s)/notebook(s) to the ADSL Router as illustrated. The following
illustration shows the connection of a single computer. See Fig 1-8.
Ethernet
Network Card
Back view of a
Computer
Ethernet
Network Cable
Ethernet Port
Back View of
ADSL Router
Figure 1-8 : Connecting to Ethernet
Do not be mistaken by an Ethernet Port and a Line Port. Picture A below illustrates that of an
Ethernet port, whilst Picture B shows a Line port.
B : LINE
A : ETHERNET
Page 12 of 42
