Aztech DSL600E User Manual

ADSL2+ Ethernet USB Combo Router – Easy Start
1.3.2 Back Panel Indicators (Ethernet USB Combo Router)

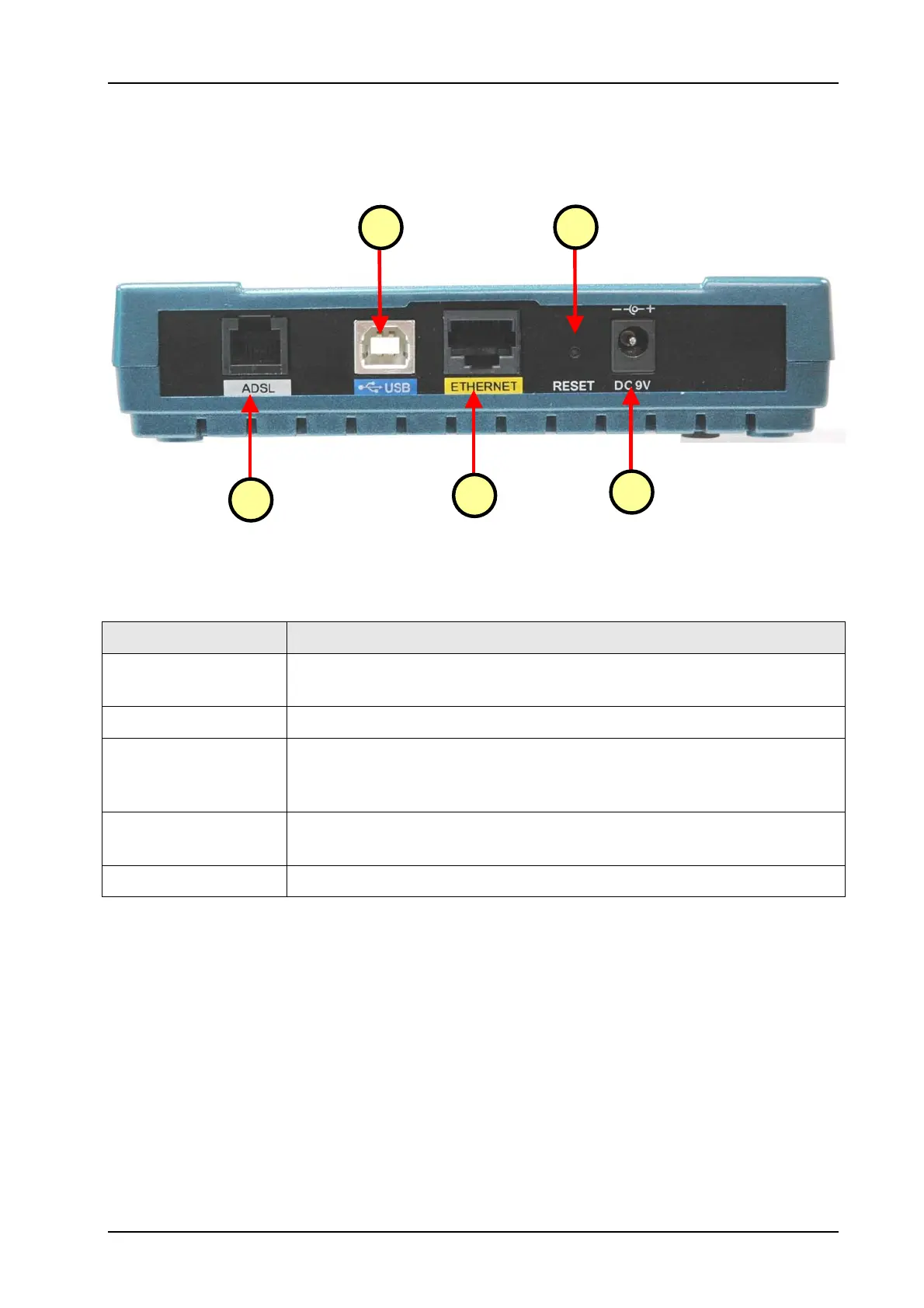

Fig 1-3 shows the back panel indicators of the Ethernet USB Combo Router.
4
5
3
2
1
Figure 1-3 : Back Panel Indicators (Ethernet USB Combo Router)
Label Description
1 DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket
(ADSL line).
2 USB
USB Port to connect to the USB port on your Computer/Notebook.
3 ETHERNET
10/100 Base-T Auto-MDI/MDIX (allows either cross or straight cable)
Ethernet jack (RJ-45) to connect to your Ethernet Network card or
Ethernet Hub/Switch.
4 RESET
To reset the ADSL Router, simply press the reset button for about 10
seconds (all customised settings that you have saved will be lost!).
5 DC 9V
To connect to the Power Adapter that comes with your package.
Page 8 of 42
