Aztech DSL600E User Manual

ADSL2+ Ethernet USB Combo Router – Easy Start
1.3 ADSL Router Overview

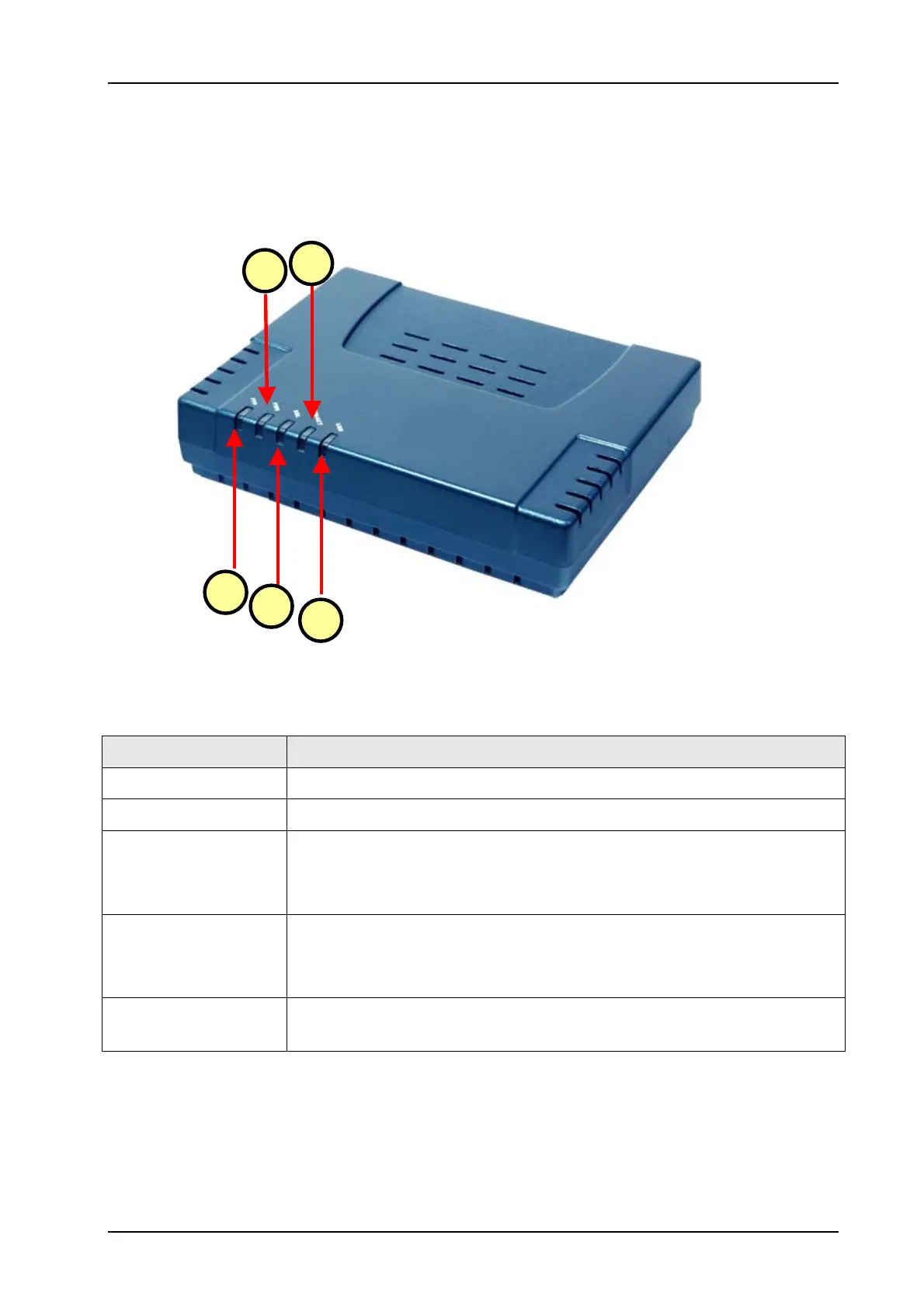

1.3.1 Front Indicators (Ethernet USB Combo Router)
Fig 1-2 shows the front indicators of the Ethernet USB Combo Router.
4
2
5
3
1
Figure 1-2 : Front Indicators (Ethernet USB Combo Router)
Label Description
1 PPP
Lights up when the PPP connection is established.
2 PWR
Lights up when power is supplied to the Router.
3 DSL
Lights up when the ADSL connection is established.
Flickers when the ADSL Router is trying to establish a connection with
the ADSL Service Provider.
4 ETH/ACT
Lights up when the Ethernet cable is properly connected from your
ADSL Router to the Ethernet Card.
Flickers when the ADSL is transmitting / receiving data.
5 USB
Lights up when the USB device driver is successfully installed in your
Computer/ Notebook.
Page 7 of 42

Aztech DSL600E Specifications

General

Brand	Aztech
Model	DSL600E
Category	Network Router
Language	English
