Balluff MATRIX VISION mvBlueFOX-200wC User Manual

1.18 Use Cases 127

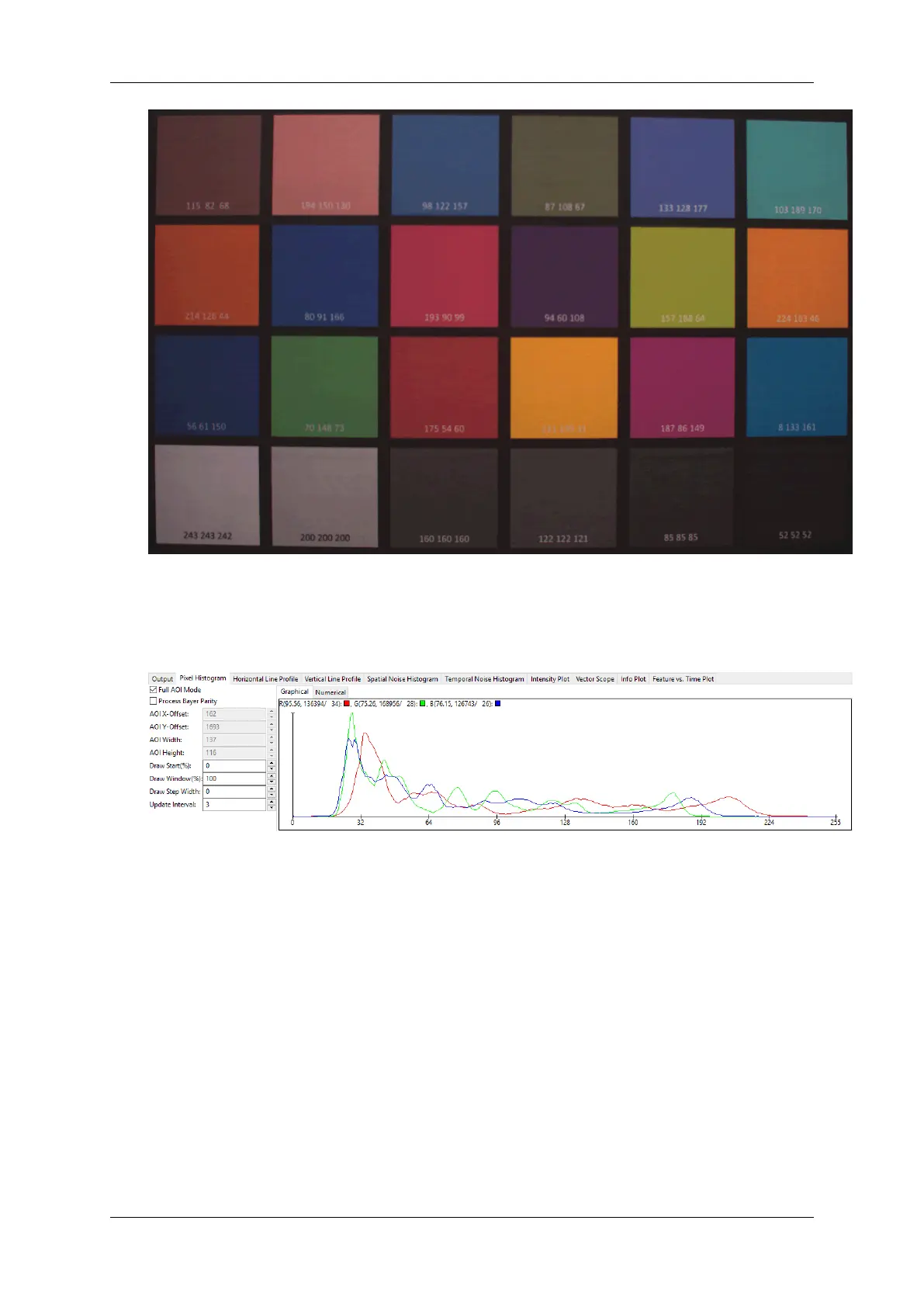

Figure 10: The image with 1.0625dB gain in the red channel
Figure 11: The histogram with 1.0625dB gain in the red channel
5. The individual black-level can be assigned using the channel specific 'Offset_pc'. Analogous to 'GainOffset←-
KneeMasterOffset_pc', a positive offset increases the black-level of the channel, whereas a negative offset
reduces it. To visualize the effect, an offset of 5% is given as an example in the red channel. The histogram
(see Figure 14) shows therefore a 12.75 (which is 5% x 255) offset increase in the red channel.
MATRIX VISION GmbH
