Banner D10 Series User Manual

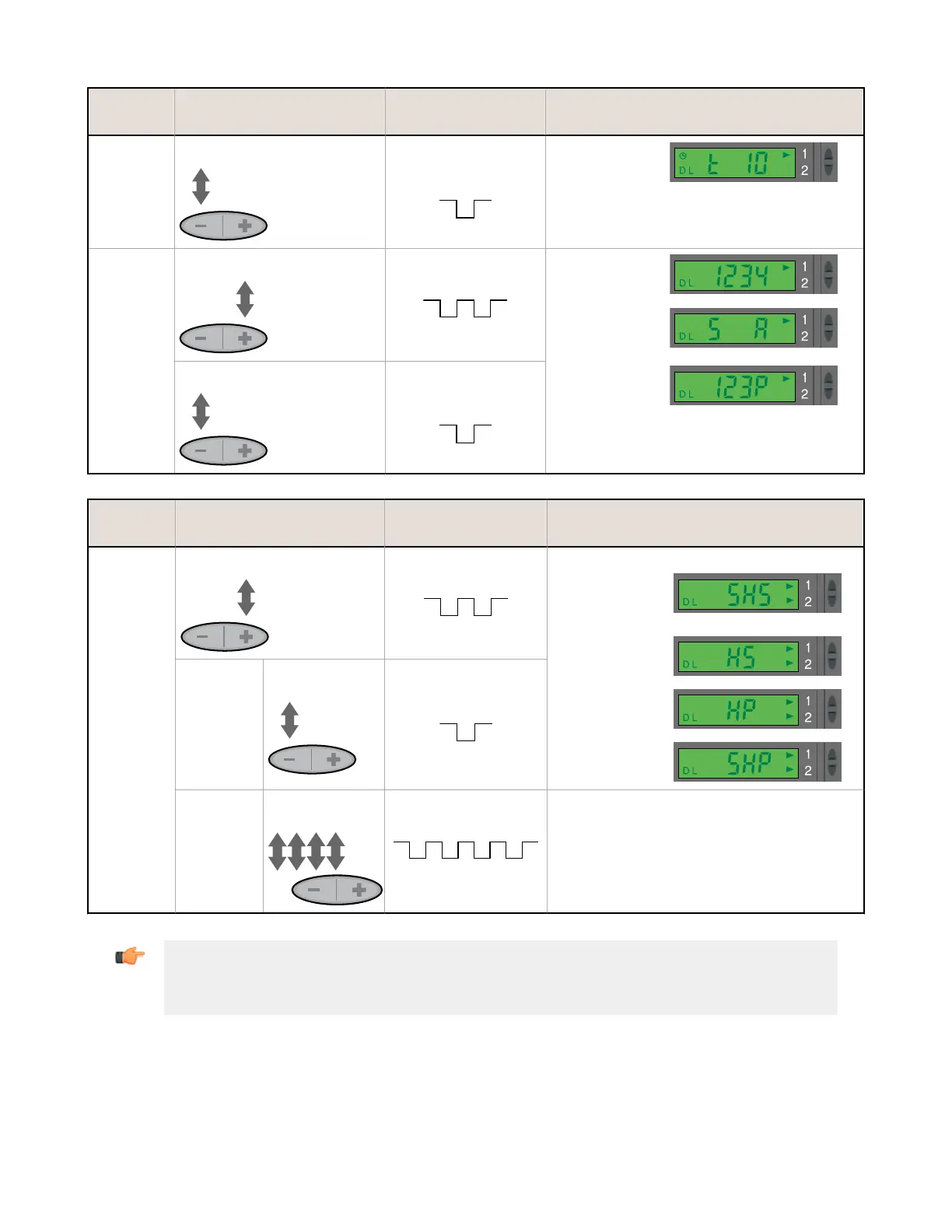

Push Button Remote
0.04 seconds ≤ T ≤ 0.8
seconds
Result
Click Static (-) to save selection and advance
to "Display."
Single-pulse remote line to save
selection and advance to
"Display."
T
2 to 100 ms OFF-
Delay
• “t 2,” “t 5,” “t 10,” “t 15,” “t 20,” “t 30,” “t 40,” “t 60,” “t
80,” or “t100”
• Clock icon ON
Select Display
Parameters
Click Dynamic (+) to toggle between
selections.
Double-pulse remote line to
toggle between selections.
T T
T
Raw Signal Value
Discrete: "1234"
Analog: 4 -20, 0-10, A
= mA , V = Volts
Percent of excess
signal
Discrete: "123P"
Click Static (-) to save selection and advance
to "Power/Speed."
Single-pulse remote line to save
selection and advance to "Power/
Speed."
T
Push Button Remote
0.04 seconds ≤ T ≤ 0.8
seconds
Result
Select Speed
and Power
Combination
Click Dynamic (+) to toggle between
selections.
Double pulse the remote line to
toggle between selections.
T T
T
Indicator Arrow Icons 1 and 2 ON Red
Super-high-speed (50-
μs response)
"SHS" (Complementary
outputs; see note below)
High-speed (200-μs
response)
"HS"
High-power (1-ms
response)
"HP"
Super-high-power
(2.5-ms response)
"SHP"
Return to RUN
mode.
OR
Click Static (-) to save
selection and return to
RUN mode.
Single-pulse the remote line to
save selection and return to RUN
mode.
T
Proceed to
Advanced Setup.
Quad-click Static (-) to
proceed to Advanced
Setup.
Quad-pulse the remote line to
proceed to Advanced Setup.
T T
T T T
T T
See Advanced Setup on page 11.
Super-High-Speed Operation Note: Under most conditions, the sensor’s two discrete outputs operate
independently. However, the outputs become complementary when operating at Super-High-Speed, due to its
extremely fast response time. Only channel 1 is taught/adjusted; channel 2 is complementary to it (output 1 conducts
for the taught ON condition, and output 2 conducts for the OFF state). To invert these conditions (output 1 – OFF
condition, output 2 – ON), change light/dark operate setting.
Advanced Setup
• Advanced adjustments to previously configured sensor display and operating parameters
• Quad-click Static (-) or quad-pulse remote line before exiting “Power and Speed” settings to enter this mode
• Click Dynamic (+) or double-pulse remote line to select an option
• Click Static or single-pulse remote line to advance
• Changes are updated instantly
D10 Expert
™
- Analog and Discrete Outputs
P/N 65448 Rev. G www.bannerengineering.com - Tel: +1-763-544-3164 11
