3. Display installation
3.2 Unlocking the tilt mechanis m
In the factory, the tilt system in the display stand is locked with a red pin to prevent dam-
age during t ransportation. You’ll have to remove this pin before adjusting your display
position.
Push the display against the buffer part to easily remove the pin.

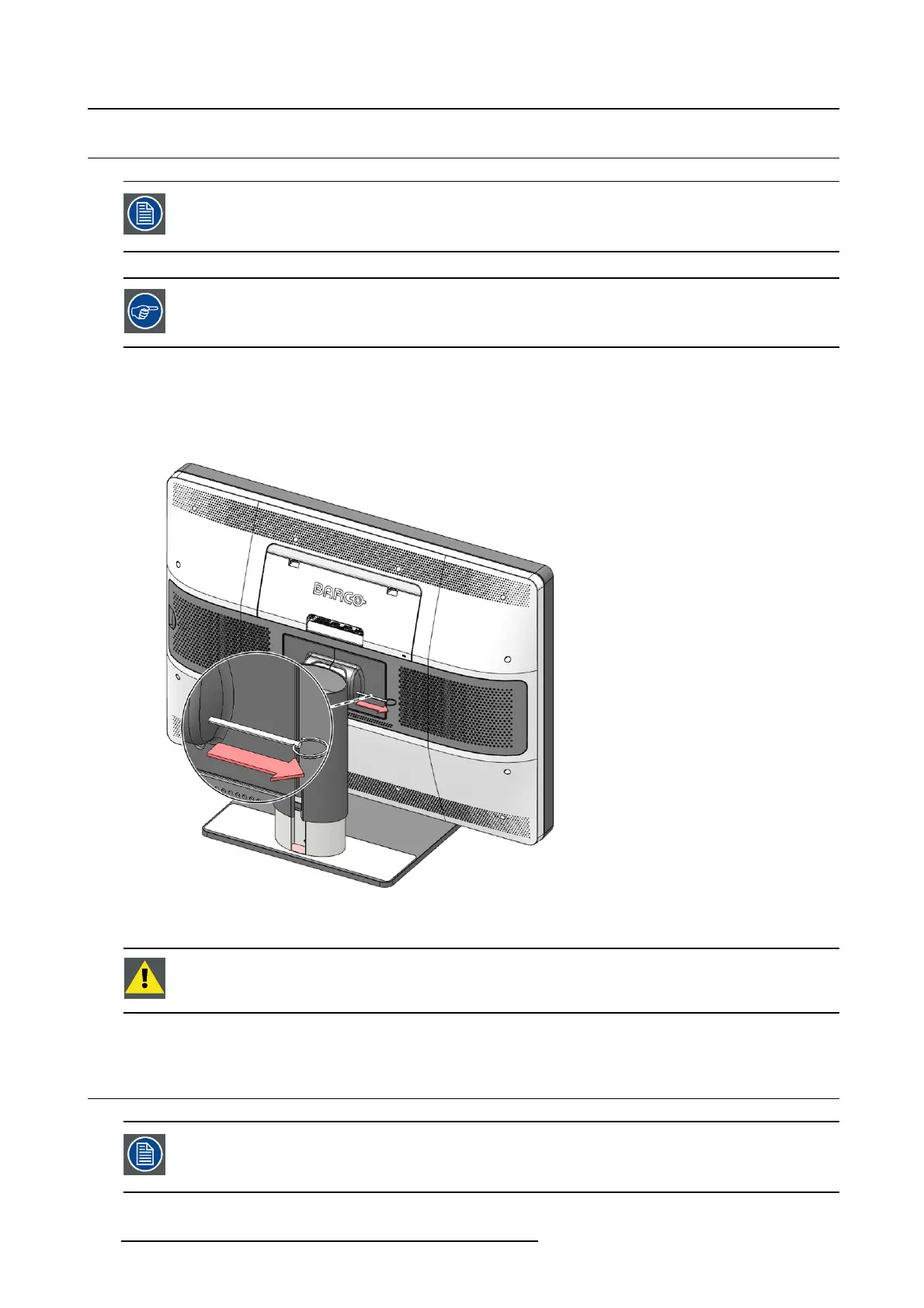

To remove the pin:
1. Position the display with its rear side facing you.
2. Pull out the red pin in the display stand.
3. Keep the pin in case the display needs to be shipped later.
WARNING: Before transportation of the display, insert the pin in the lock mechanism so
that the grey c ol or of the pin isn’t visible anymore.
3.3 Unlockin g the heigh t mechani s m
In the factory, the height-positioning system in the display stand is locked with a red pin
to prevent damage during transpor
tation. You’l l have to remove this pin before adjusting
your display height position.
10 K5902079 CORONIS UNITI 21/04/2015
