5. Lenses & lens holder
1/3 to 1/2

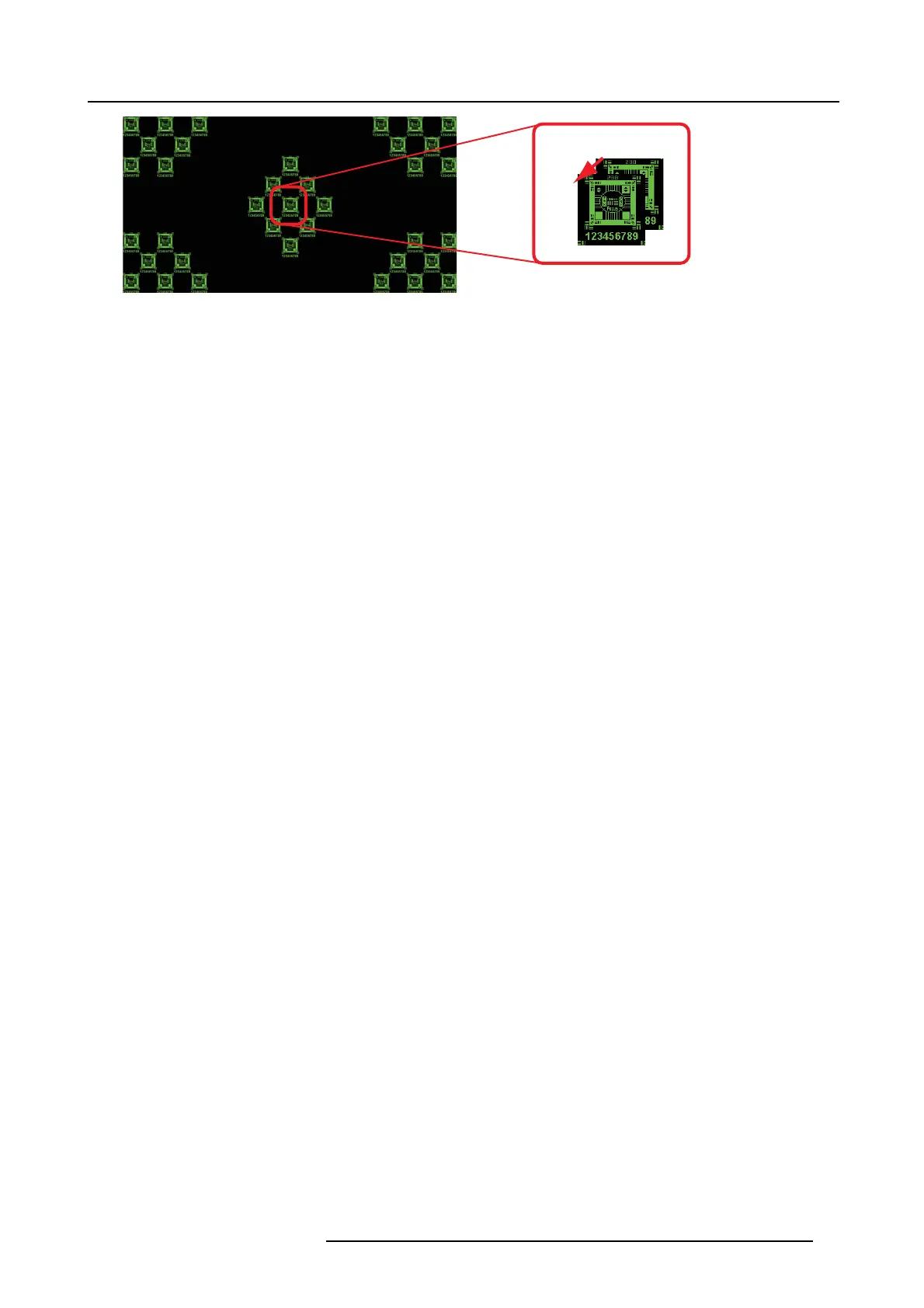

Image 5-28
4. Fas ten lock nut d.
5. Tighten nut 4 until the offset of the im age movement created in step 3 is canceled.
Tip: The amount of image movement in step 3 will determ ine how tight the nut in step 5 will need to be turned to return the
image to its original position
R5905067 DPXK-19B/23B/P 17/09/2012
55
