7. Cold mirror assembly
3

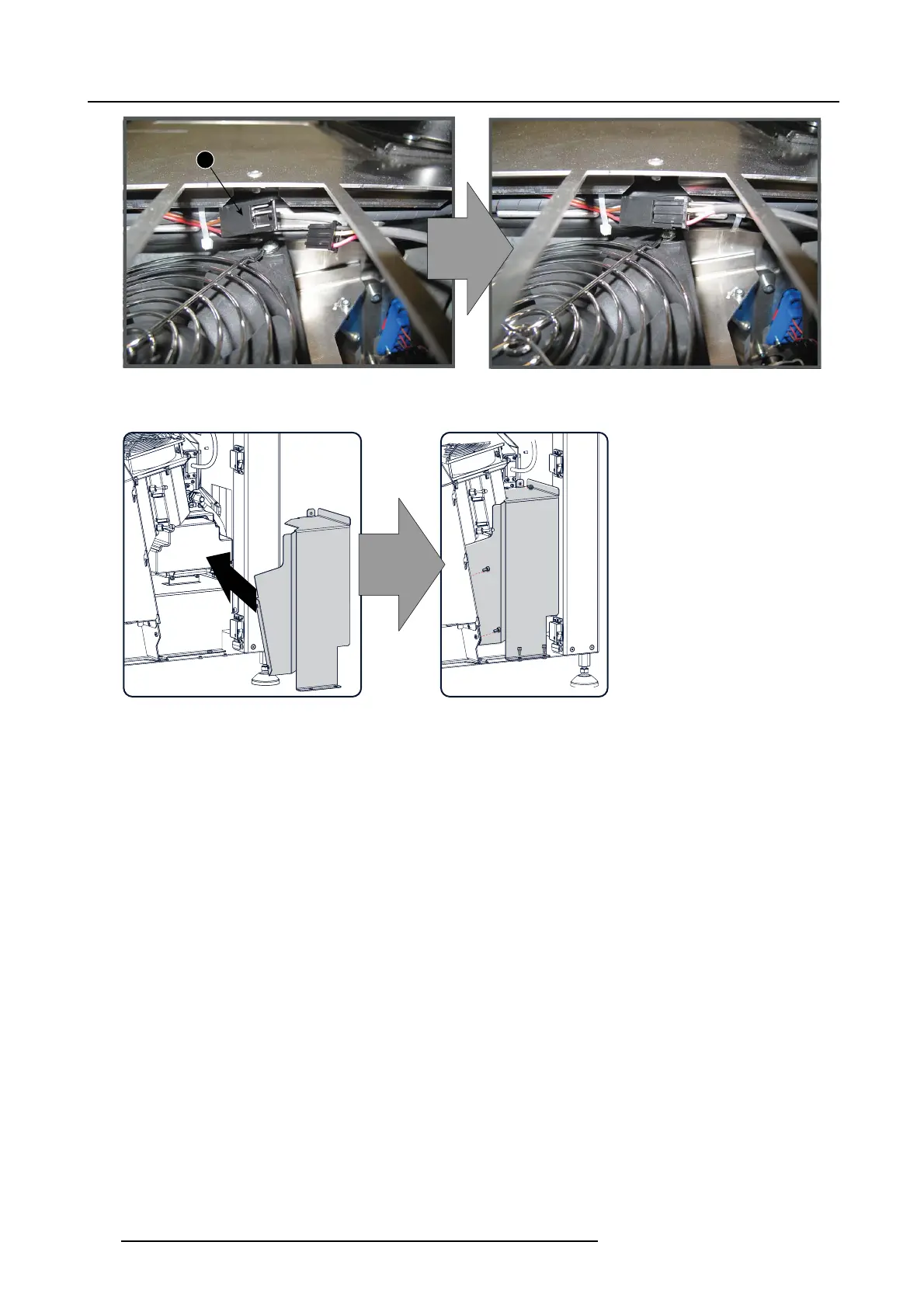

Image 7-8
4. Install the cover of the Start Pulse Generator as illustrated . The cover has to be fa sten wi
th 5 hexagon socket head cap screws.
Use for that a 3 mm Allen wrench.
Image 7-9
5. Close the sealed compartment. S ee "Close the s ealed com partment", page 86.
6. Readjust the cold mirror. See "Adjusting the cold mirror", page 131.
