Barco DP2K-C Series Service Manual

9. Convergence
9.4 G reen on Blue convergence
This proce dure can only be executed when all preparations are taken to co nverge the image.
Necessary tools
No tools.
How to converge

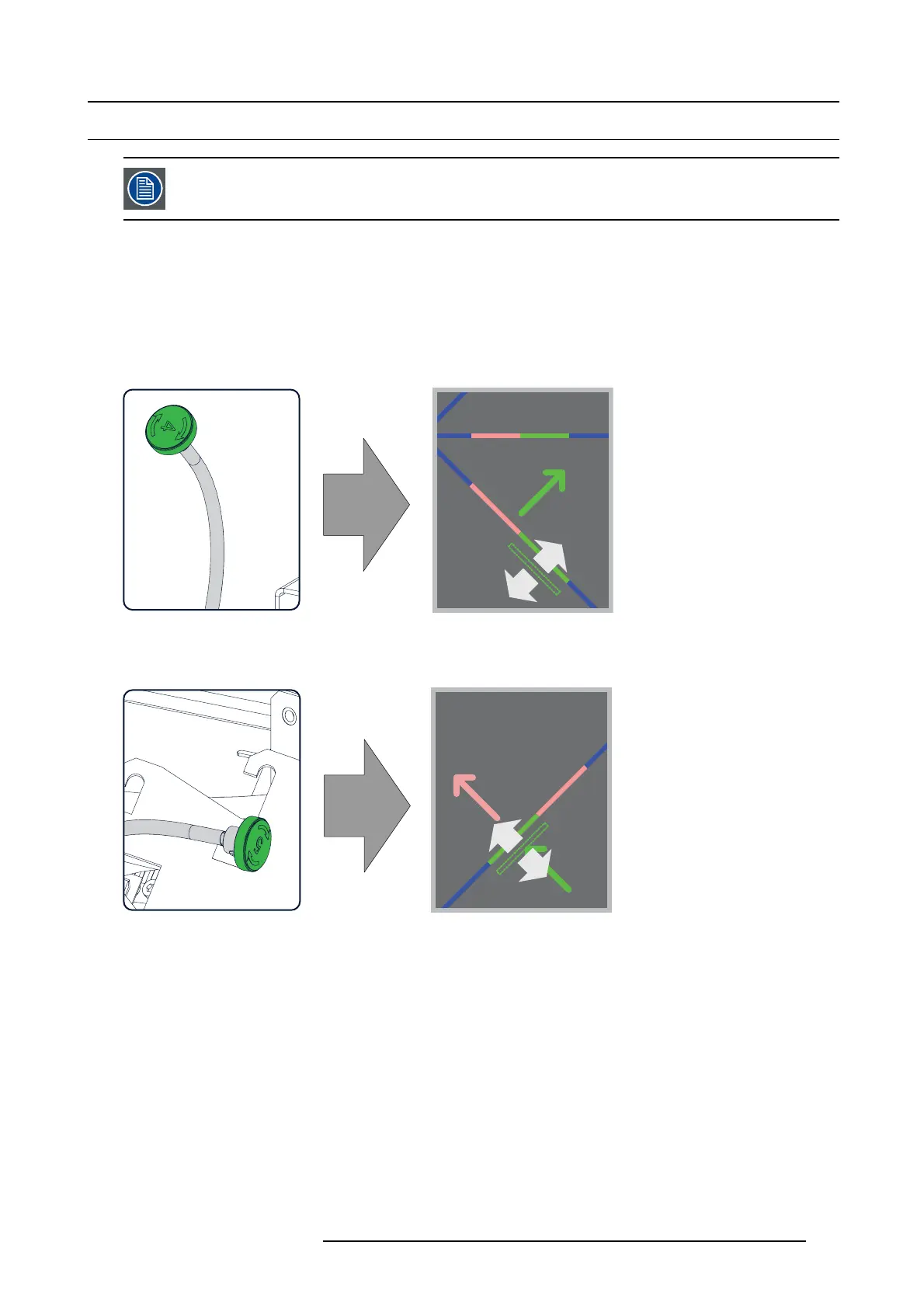

1. Slightly turn the green colored control knob number 4 until the green pattern in the center of the projected image converges with
the blue pattern. N ote that a turn of a few degrees corresponds with one full pixel.
Note: When start turning the knob, a little resistance can be felt. T his resistance is part of the internal locking mechanism of
the adjustment.
4
Image 9-8
Clockwise turning will move the line downwards.
2. Slightly turn the green c olored control knob number 5 until the green pattern in the lower left of the projected image converges
with the b lue pattern.
2
5
Image 9-9
Clockwise turning will m ove the line upwards.
3. Slightly turn the g reen colored control kno b number 6 until the green pattern in the upper right of the projected image converges
with the b lue pattern.
R5905043 DP2K-12C/11CX 19/02/2018
165
