Barco DP2K-C Series Service Manual

5. Removal and installation of projector covers
5.4 Removal of the side cover
Necessary tools
Flat screw driver.
How to remove the side cover of the projector?

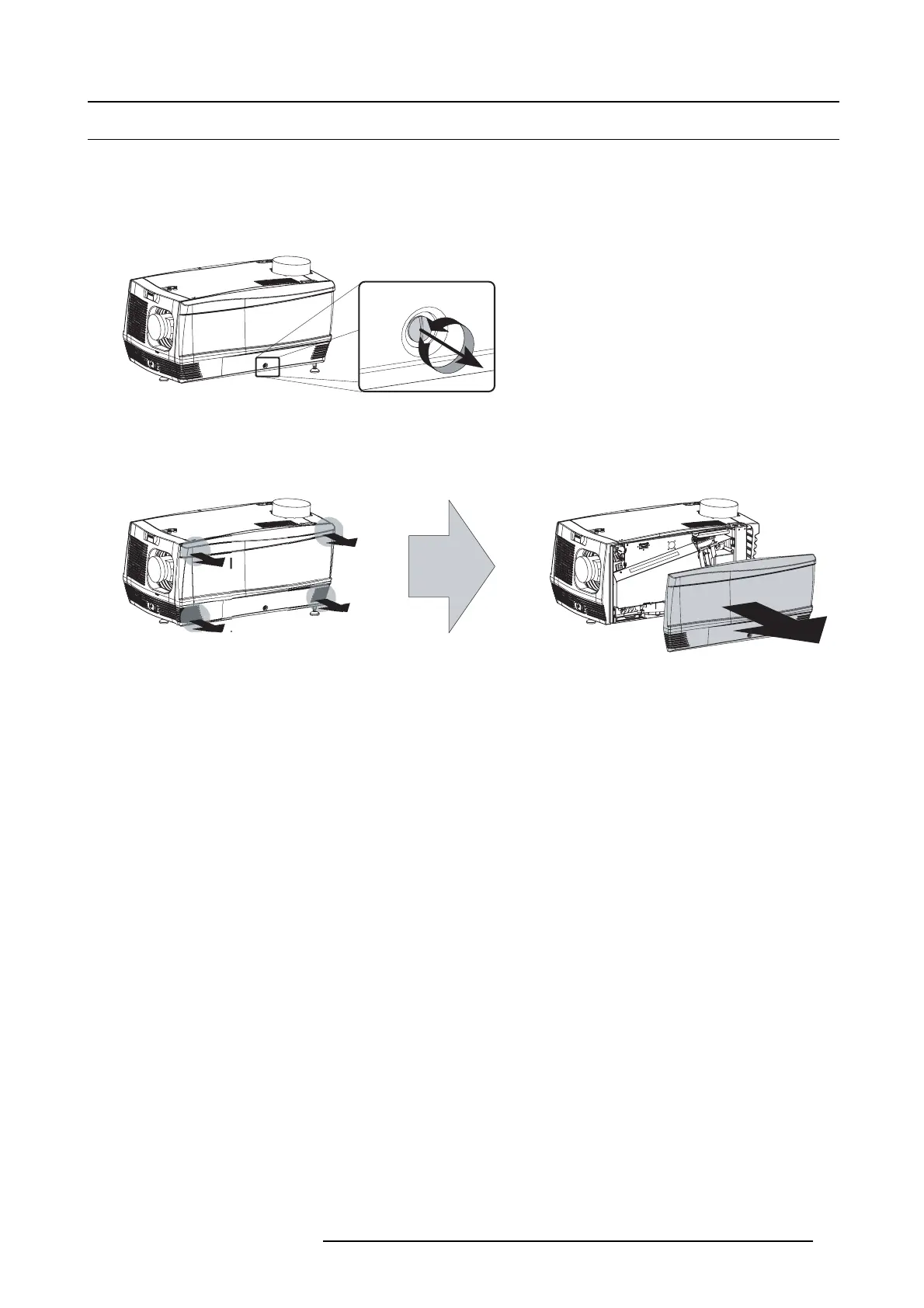

1. Release the c aptive screw at the m iddle bottom of the s ide cover, us ing a flat scre w driver.
Image 5-7
2. Remove the side cover from the projector doing the following:
a) gently pull out the bottom corners (A) of the s ide cover,
b) then gently pull out the top corners (B) of the s ide cover,
c) then m ove the side cover away from the projector (C).
B
B
A
A
C
Image 5-8
R5905043 DP2K-12C/11CX 19/02/2018 81
