5. Removal and installation of projector covers
5.10 Installation of the rear c over
Necessary tools
Flat screwdriver.
How to install the rear cover of the projector?

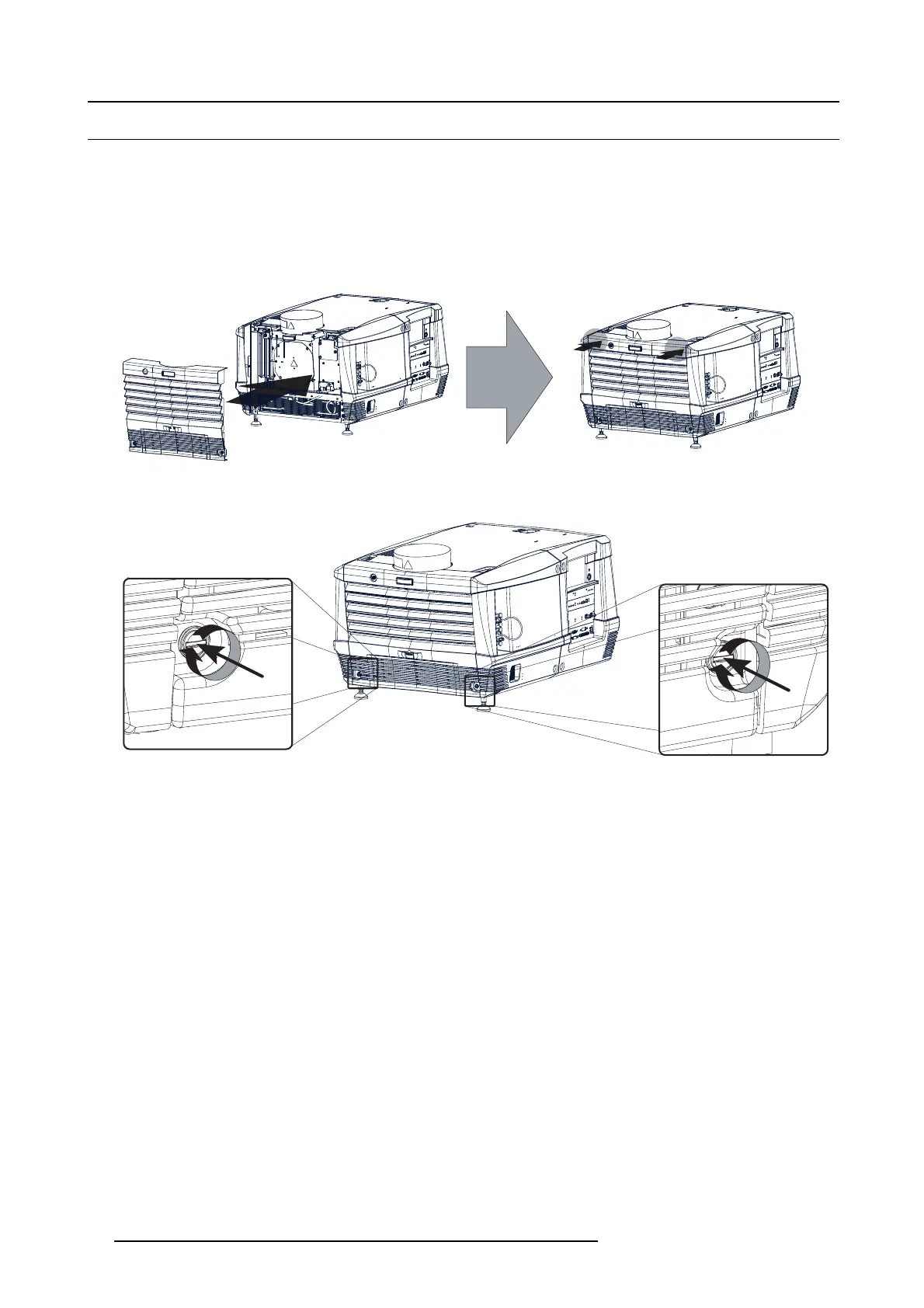

1. Install the rear cover of the projector doing the following:
a) Bring the rear cover towards it final position,
b) then gently push the locking studs of the top corners into their rece ivers
B
B
A
Image 5-19
Install rear housing
2. Secure the rear cover by locking the captive screws at the bottom corners of the rear cover.
Image 5-20
Fasten rear housing
88 R5905043 DP2K-12C/11CX 19/02/2018
