8. Light processor assembly

(1) (2)

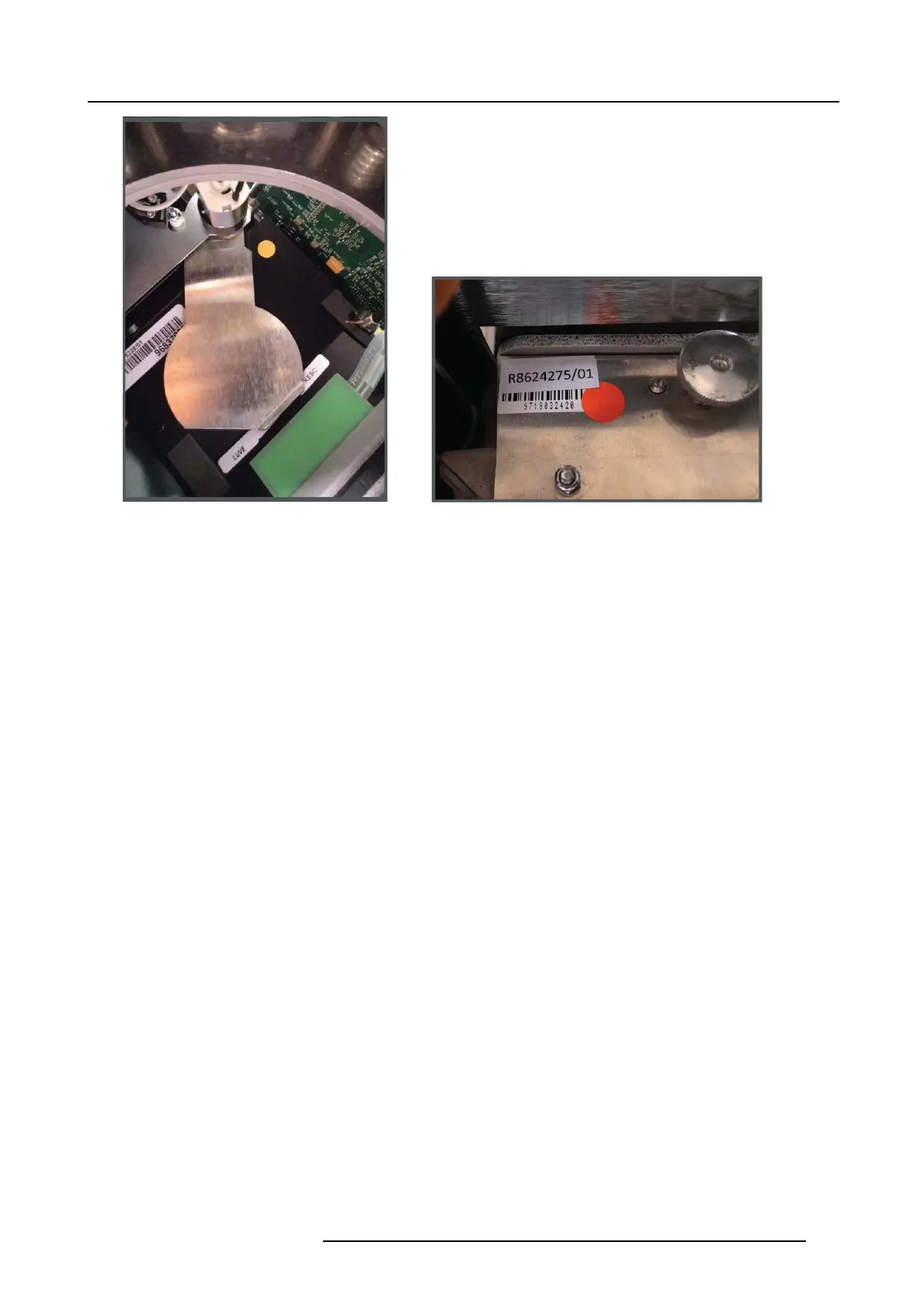

Image 8-23

(1) dot on prism

(2) dot on notch ﬁlter

4. Select the correct notch ﬁlter and slide it in.

5. Drive in both ﬁxation bolts.
