12. Card Cage

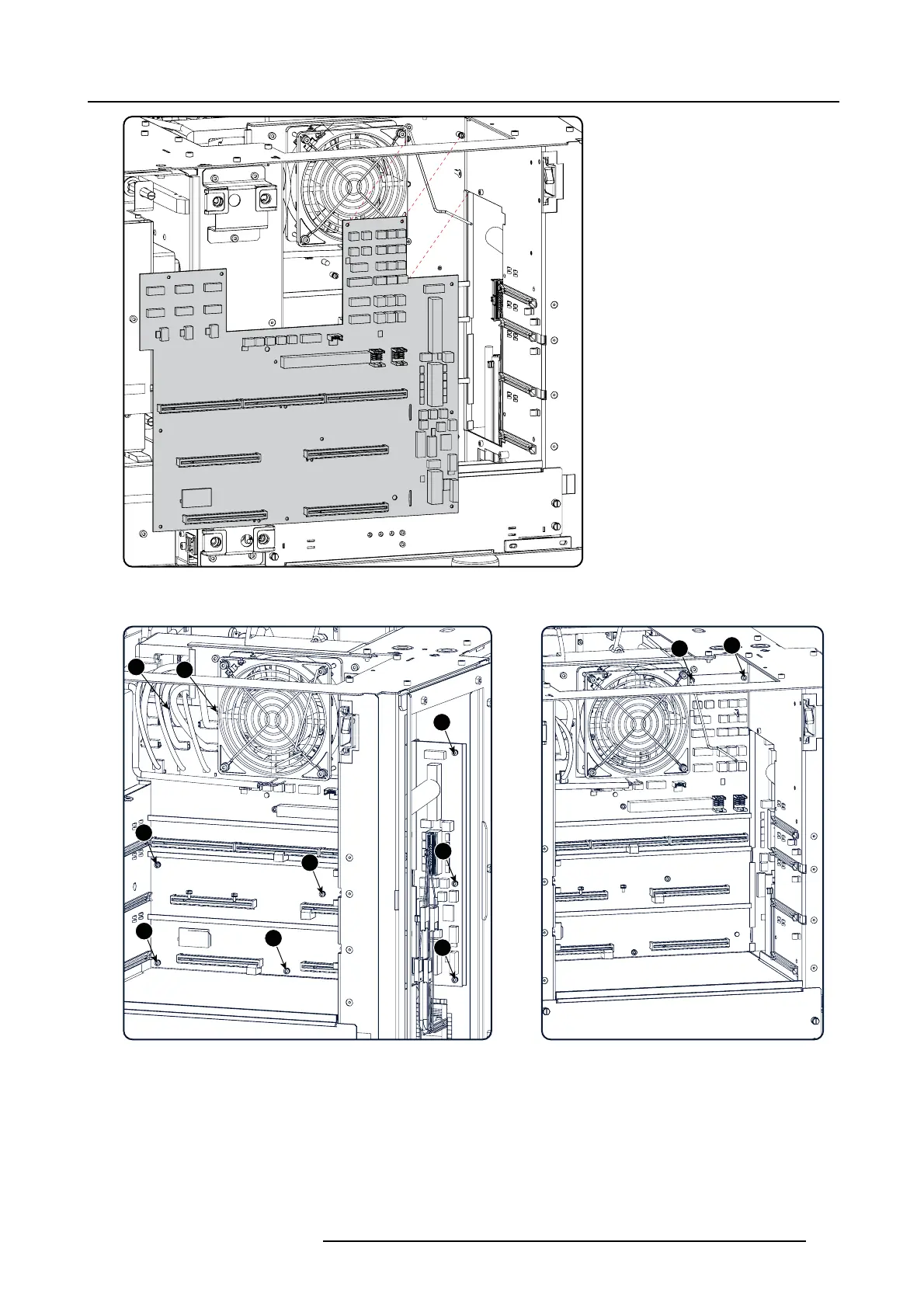

Image 12-47
Signal backplane insertion
3. Driveinscrew1to11.
1
2
3
4
5
6
9
10
11
8
7
Image 12-48
Backplane fixation sc
rews
4. Place the hatch back on its place.
R5905043 DP2K-12C/11CX 19/02/2018
237
