2. ICMP functionality
HDD storage
The maximum recommended storage period for the drive in a non-operational environment is 90 days.
Drives should be stored in the original unopened shipping packaging whenever possible. Once the drive
is removed from the original packaging the recommended maximum period between drive operation cy-
cles is 30 days. During any storage period the drive non-operational temperature, humidity, wet bulb,
atmospheric conditions, shock, vibration, magnetic and electrical field specifications should be followed.
2.3 ICMP communication ports

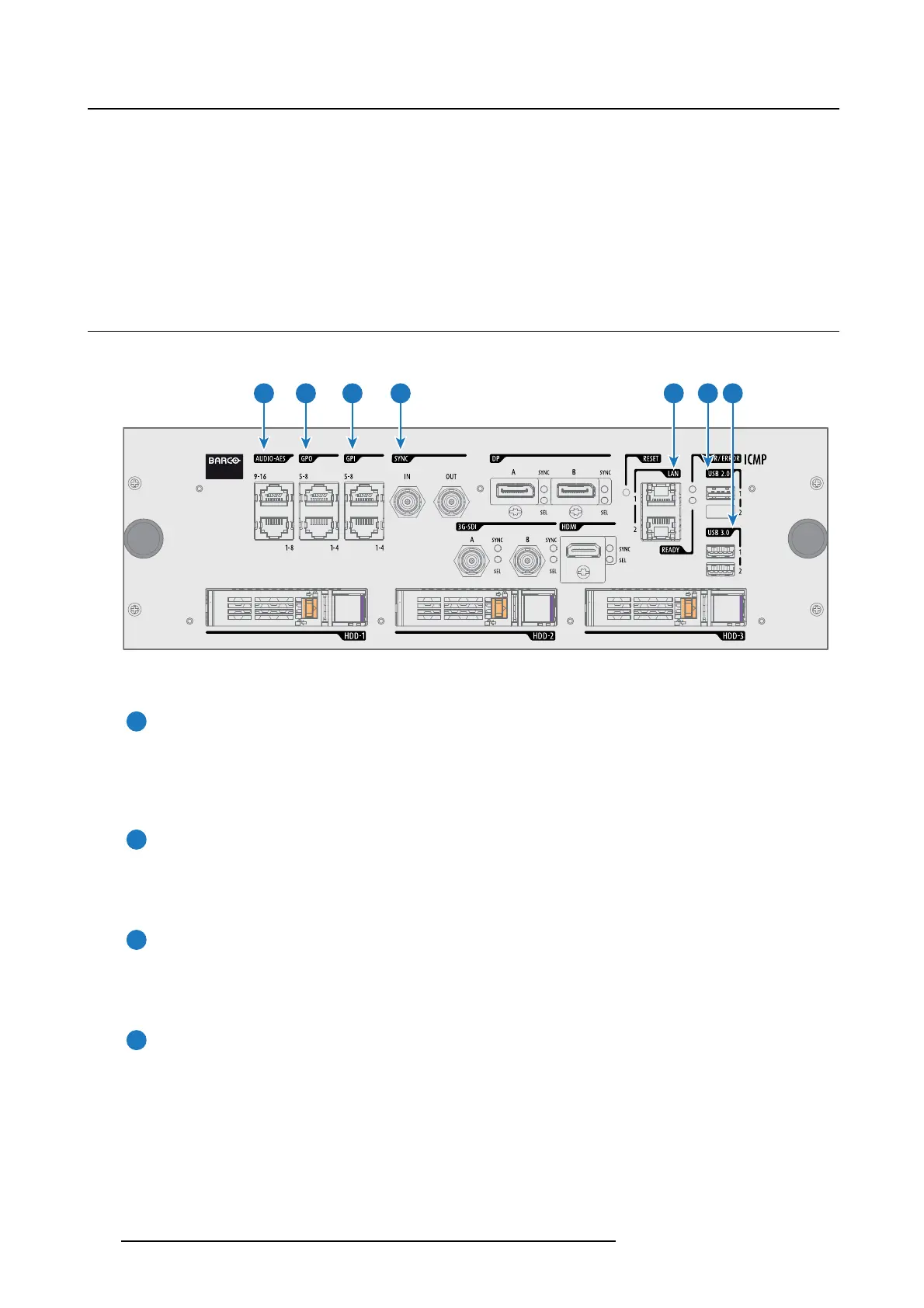

Location of the communication ports
1 2 3 4 5 6 7
Image 2-5
Functionality
1
AUDIO-AES 1-8 (9-16)
ICMP outputs sixteen audio signals equita
bly distributed over these two RJ45 connectors, which
canbeconfigured independently. The mapping of audio channels (content) on each audio output
(AES outputs of the ICMP) is performed by configuring the ICMP via the Communicator software.
Please refer to the Communicator user guide for further information.
2
GPO 1-4 (5-8)
These RJ45 connectors can be used to send trigger signals to other devices. The mapping of user
Cues (output Cues) on each General Purpose Output (GPO) is configured via the Communicator
software. Please refer to the Communicator user guide for further information.
3
GPI 1-4 (5-8)
These RJ45 connectors can be used to receive trigger signals from other devices. The mapping of
the General Purpose Input (GPI) on each input Cues is configured via the Communicator software.
Please refer to the Communicator user guide for further information.
4
SYNC IN / OUT
Synchronization signal IN and OUT: Reserved for multiple-projector projection. Use a 50 Ohm
coaxial cable to connect the sync signal from projector to projector.
12
R5905722 ICMP 09/11/2016
