Barco ICMP Installation Manual

2. ICMP functionality

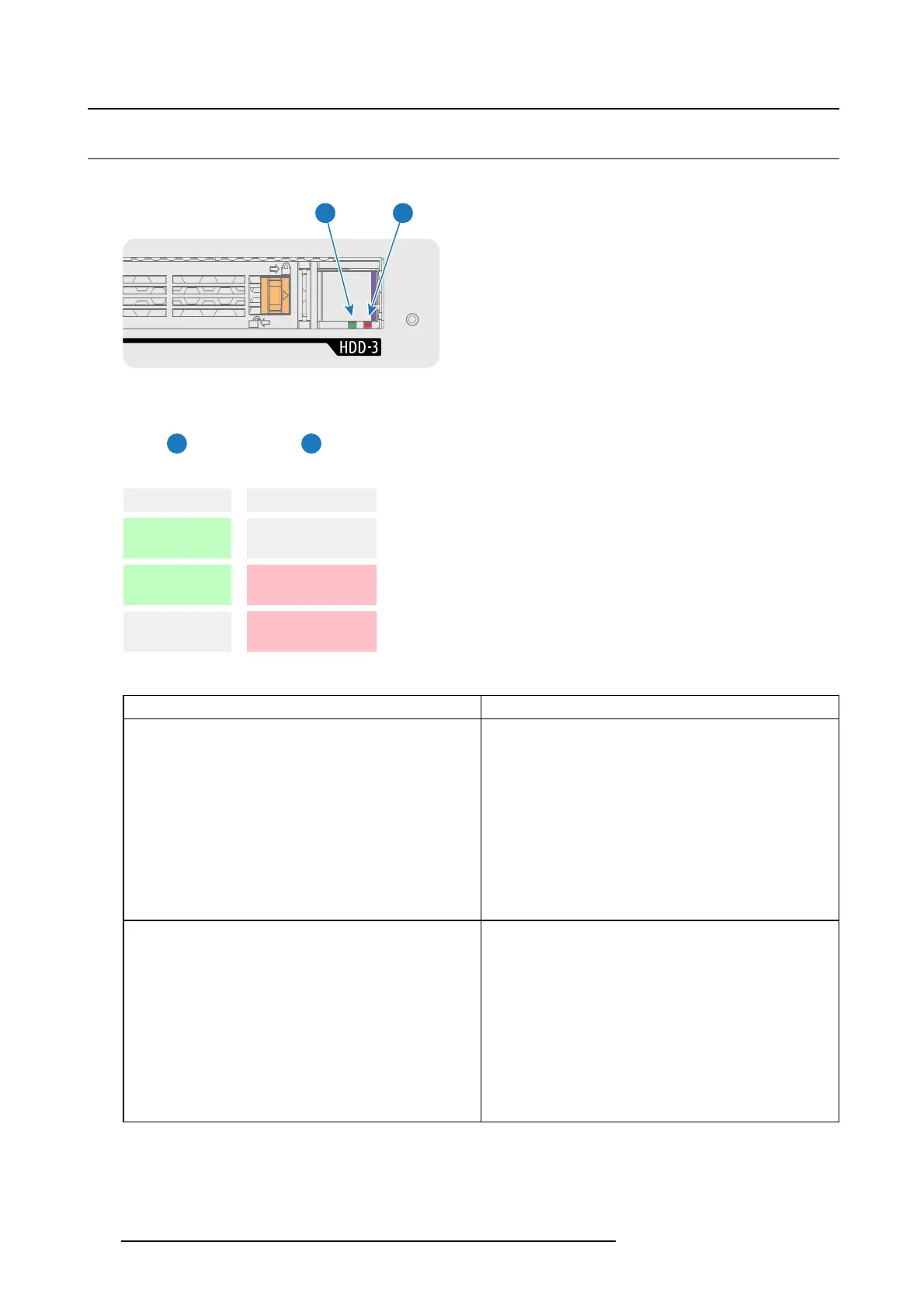

2.9 ICMP HD D status LEDs
ICMP HDD status LEDs
54
Image 2-8
Status overview PWR/ERROR and READY LEDs:
4 5
HDD I/O
RAID
ICMP HDD Status
Off Off HDD idle / Disk in RAID OK.
Blinking
Green
Off HDD I/O activity / Disk in RAID OK.
Blinking
Green
Blinking Red HDD I/O activity / RAID rebuilding.
Off
Red
HDD idle / Disk error. See troubleshooting table below for curative
actions.
Troubleshooting
Situation Solution
Onediskfailed(redLED)+RAID degraded.
The ongoing event is not interrupted.
Note: The disk status (RAID degraded) can be
retrieved via the (Web) Commander. See u
ser
guide of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with an original HDD
spare part. See procedure "Removing a HDD
from the ICMP", page 35, and "Installing a
HDD into the ICMP", page 33. Ensure to insert
the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the
ICMP the rebuild of the RAID is started (Blinking
red LED).
One disk failed (red LED) + Error 10580 “local
storage not a vailable”.
Note: The disk status (Error code) can be
retrieved via the (Web) Commander. See user
guide of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with an original H
DD
spare part. See procedure "Removing a HDD
from the ICMP", page 35, and "Installing a
HDD into the ICMP", page 33. Ensure to insert
the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the
ICMP the rebuild of the RAID is started (Blinking
red LED).
22 R5905722 ICMP 09/11/2016
