2. ICMP functionality
5
LAN 1 (2)
The ICMP can be connected to a LAN (local area network) using one of the Ethernet ports. These
LAN port are used for ‘content’ transfer.
NOTE: These ports are optionally used to connect to external content storage sources. Control
of the ICMP is done via the same IP address as the projector.
6
USB 2.0
The ICMP can be connected to a USB 2.0 Media to load content. The USB port can be used to
load content (DCP) or keys (KDM).
NOTE: It is recommended to use the USB 3.0 ports for faster ingest.
7
USB 3.0
The ICMP can be connected to a USB 3.0 Media to load content. The USB port can be used to
load content (DCP), or keys (KDM), or software update.
NOTE: These ports are recommended for fast ingest when connected to an appropriate USB
3.0 source.
USB
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines
the cables, connectors and communications protocols used in a bus for connection, commu-
nication, and power supply between computers and electronic devices. USB 2.0 (also called
"Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to
35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s.[16]
USB 2.0 connectors are usually colored black. USB 3.0 defines a new SuperSpeed mode with
a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s (500 MB/s). A USB 3.0
port is usually colored blue, and is backwards compatible with USB 2.0.
2.4 ICMP source input ports

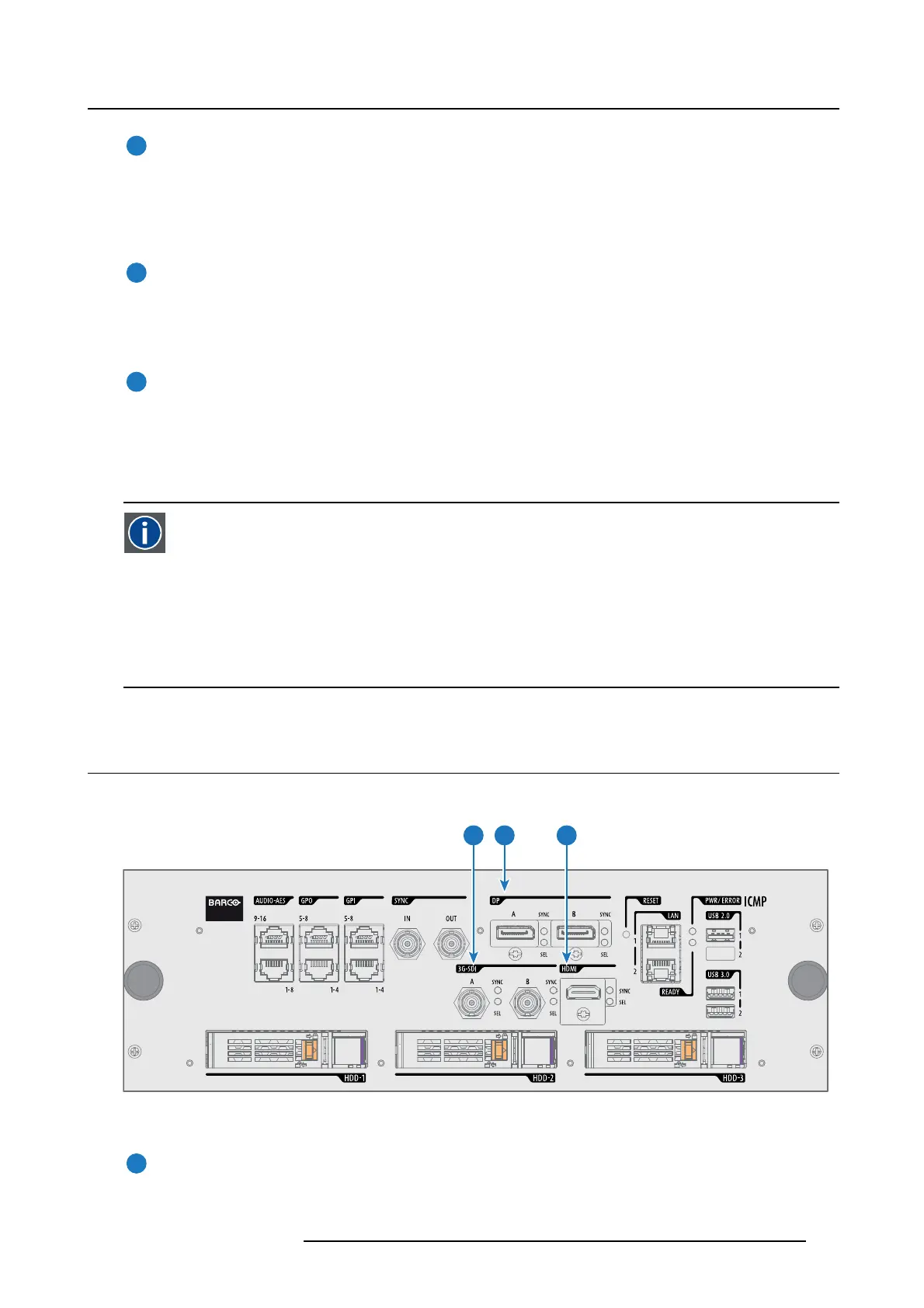

Location of the source input ports
89 10
Image 2-6
Functionality
8
DisplayPort A (B)
DisplayPort connector to connect a video source.
