Barco ICMP Installation Manual

2. ICMP functionality
• 7.1 format / LPCM / 20 bits / 48 kHz
Notes:
• Includes refresh rate = (Hz*1000)/1001
• All input resolutions are scaled towards the desired resolution specified in the screen presentation file.
2.8 ICMP status LEDs

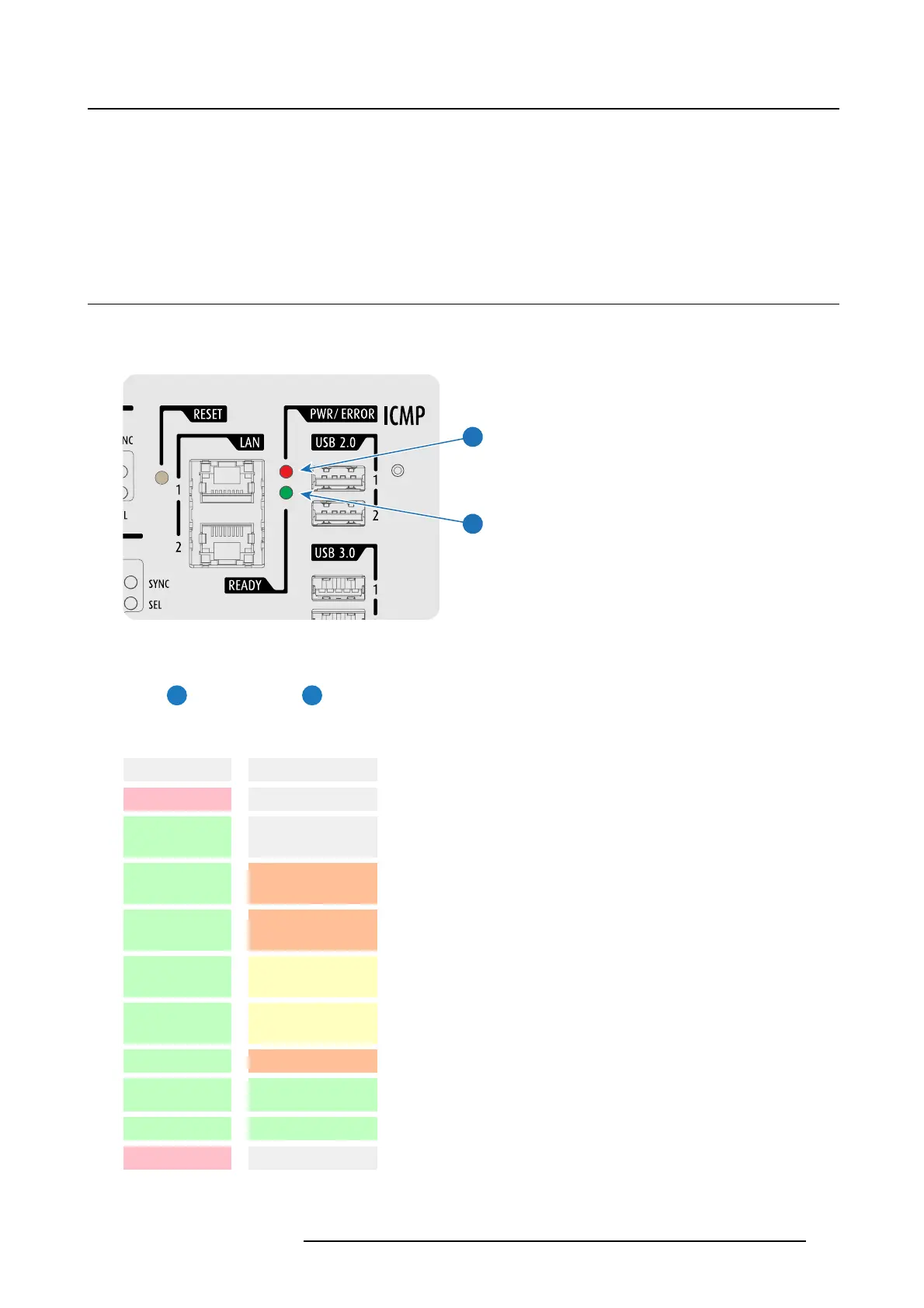

ICMP status LEDs and Reset button
LEDs on ICMP front panel give information on the status of the device.
1
2
Image 2-7
Status overview PWR/ERROR and READY LEDs:
1 2
PWR/ER-
ROR
READY
ICMP Status
Off Off Turned off
Red
Off
Board reset
Blinking
Green
Off
Boot loader
Blinking
Green
Blinking Orange Operating System start up
Blinking
Green
Orange Security Manager - Image Integrity tests
Blinking
Green
Blinking Yellow Security Manager - Self Test
Blinking
Green
Yellow
Security Manager - FPGA self-test
Green Blinking Orange
Update ongoing
Green Blinking Green FIPS ok - Application startup
Green Green Power on & N o Error
Blinking Red
Off FIPS error
R5905722 ICMP 09/11/2016 21
