K5902094 (451920611693) /02 MDSC-8232
11

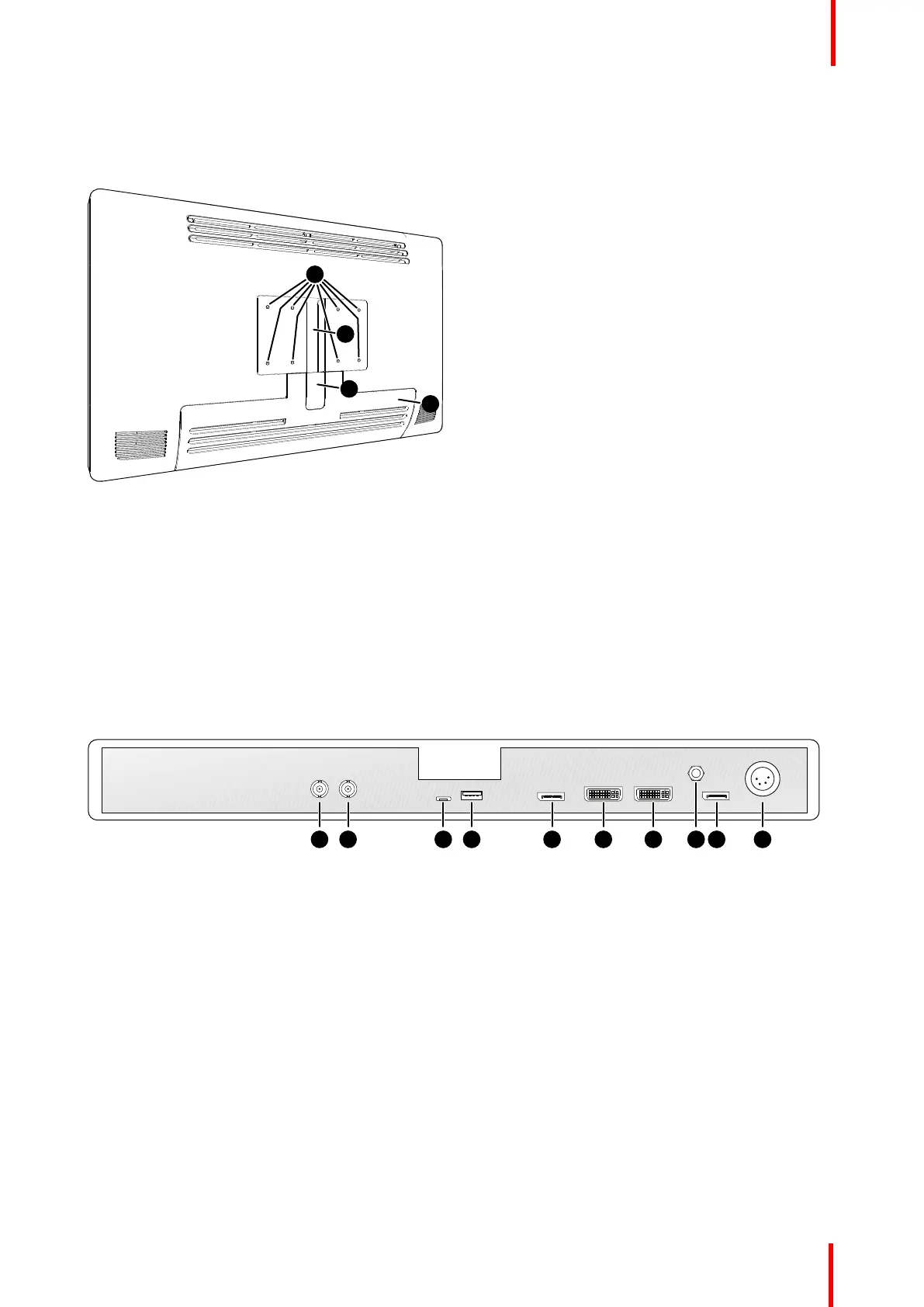

2.2 Rear view
Overview
1
2
3
4
Image 2-2
1. VESA mount screw holes (100 x 100 mm, 200 x 100 mm)
2. Cable routing channel
3. Cable routing channel expansion clip
4. Connector compartment cover
2.3 Connector view
2.3.1 MDSC-8232 LED version
Overview
2 3 4 5 9 106 7 81
Image 2-3
1. SDI in
2. SDI out
3. USB 2.0 micro-B interface
4. USB 2.0 type A interface
5. Main (Right) DisplayPort in
6. DVI-D in
7. DVI-D out
8. Potential Equalization pin (POAG)
9. 2
nd
(Left) DisplayPort in
10.24 VDC power in
Parts, controls and connectors
