K5902094 (451920611693) /02 MDSC-8232
14
4. GND
5. Not connected

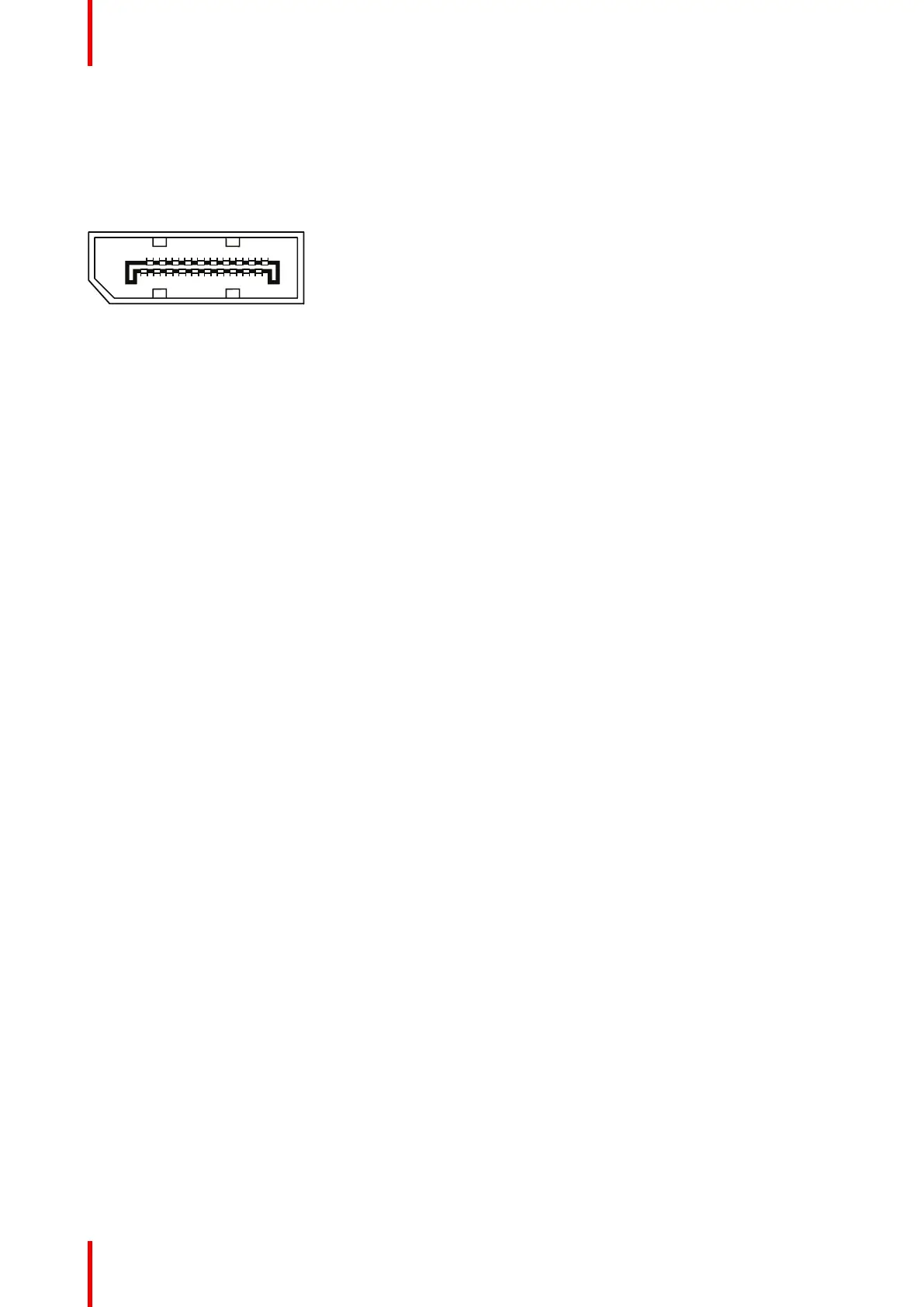

2.4.5 DisplayPort connector
Overview (sink side pin-out)
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Image 2-9
1. ML_Lane 3 (n)
2. GND
3. ML_Lane 3 (p)
4. ML_Lane 2 (n)
5. GND
6. ML_Lane 2 (p)
7. ML_Lane 1 (n)
8. GND
9. ML_Lane 1 (p)
10.ML_Lane 0 (n)
11. GND
12.ML_Lane 0 (p)
13.CONFIG1
14.CONFIG2
15.AUX CH (p)
16.GND
17.AUX CH (n)
18.Hot Plug
19.Return
20.DP_PWR (+3.3 VDC @ 500 mA max)
Parts, controls and connectors
