4. Lamp & Lamp House

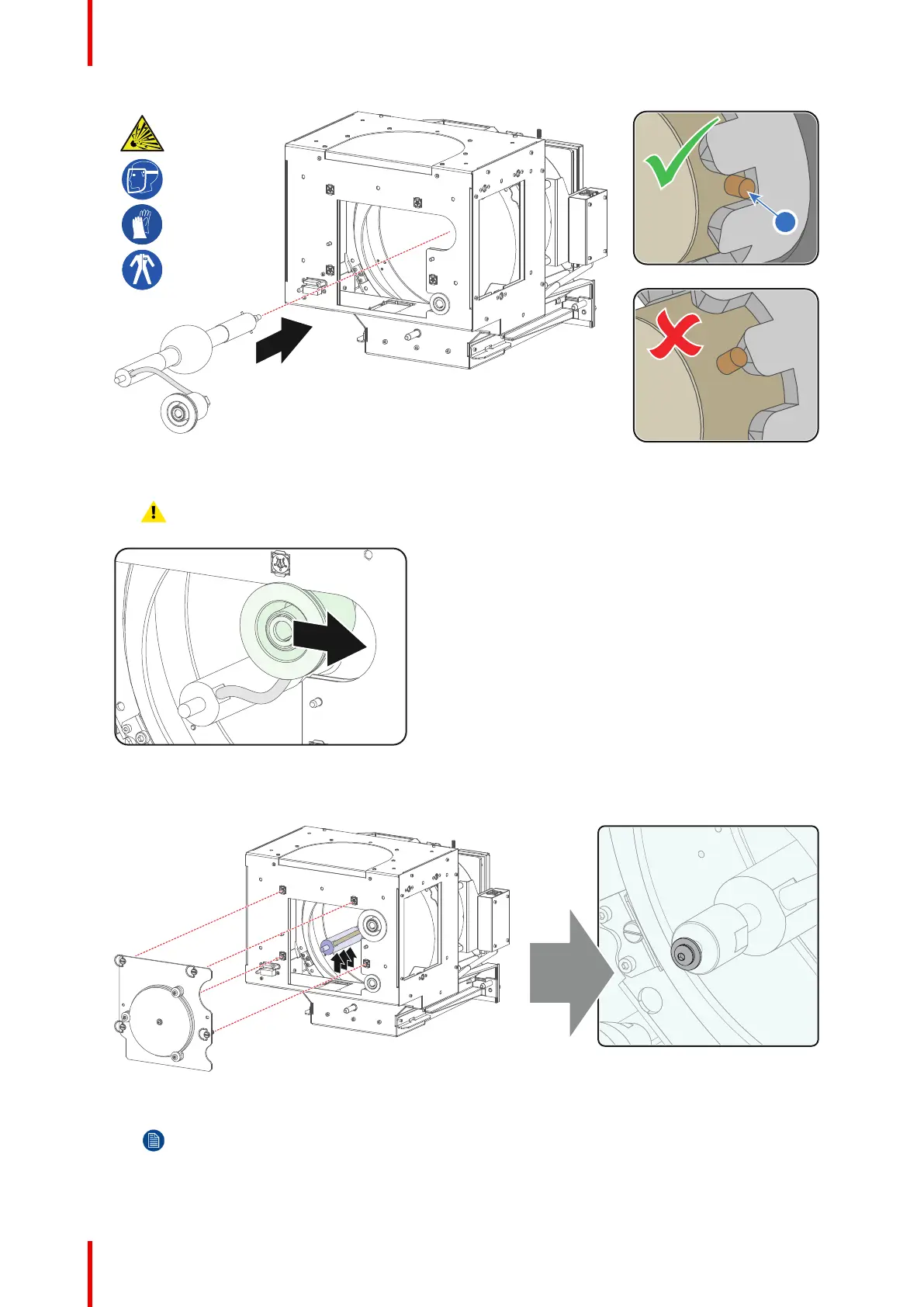

6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use excessive force upon the
xenon lamp. Norm ally the x enon lamp will easily slide out the cathode socket of the Lamp House.
Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents it from bumping against the
chassis of the Lamp House.
Image 4-13
7. Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure w ith two binders.
Image 4-14
Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container.
8. Remove the anode w ire lug (reference 6 image 4 -15) from the anode soc ket as illustrated. Use a 8mm Allen wrench.
Tip: Place the flat washer and bolt (reference 7 & 8 image 4-15) back on its place after the lug is rem oved.
6
7
8
Image 4-15
46 R5905963 PROMETHEUS SERIES 09/03/2015
