1 Lock nut
2 Nut
3 Spring
A
Mower #2 and #3: 140.0 mm (5.51 in)
Mower #1: 60.0 mm (2.36 in)

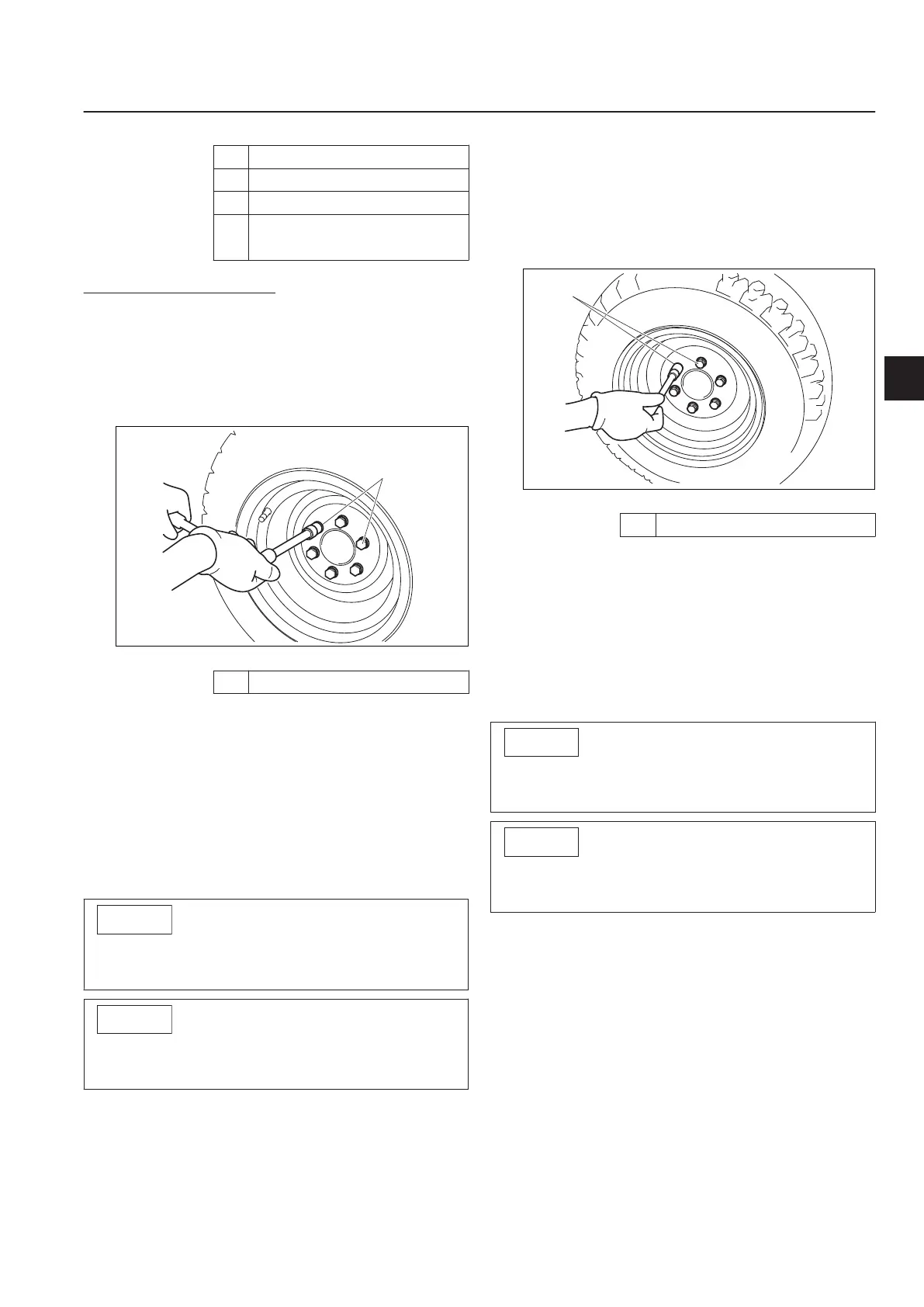

Replacement of Tires
Replacement of Front Tires
Removing front tires
Follow the steps below to remove the front
tires:
Loosen the bolts.
1
lm2ieh-002
Replacement of Front Tires_001
1
Heat-treated bolt
Securely place the jack beneath the jack-
up point of the front left/right frame area,
and then raise it until the tire lifts off the
ground.
"Jack-up Points" (Page 6-2)
Remove the bolts.
Remove the tire from the wheel mounting
seat.
Installing front tires
Important
Tighten the bolts in the tightening order
(diagonally).
Important
Tighten the wheel mounting bolts on the
specified torque by using a torque wrench.
For installing the front tires, reverse the
removing procedure.
1.
[1]
[2]
[3]
[4]
2.
Replacement of Rear Tires
Removing rear tires
Follow the steps below to remove the rear
tires
Loosen the bolts.
1
upekw4-002
Replacement of Rear Tires_001
1
Heat-treated bolt
Securely place the jack beneath the jack-
up point of the rear frame area, and then
raise it until the tire lifts off the ground.
"Jack-up Points" (Page 6-2)
Remove the bolts.
Remove the tire from the wheel mounting
base.
Installing rear tires
Important
Tighten the bolts in the tightening order
(diagonally).
Important
Tighten the wheel mounting bolts on the
specified torque by using a torque wrench.
For installing the rear tires, reverse the
removing procedure.
1.
[1]
[2]
[3]
[4]
2.
Maintenance
LM331
Maintenance
Page 6-9
Adjustment and Replacement
