Basics
7
MAK 3003 Measuring system TIGER / LYNX Operating Instructions, Software version 2.35, BA 190130 (11.07.2022)
3 Basics
With the MAK 3003 system, all processes and operating steps required for the
loading and unloading of milk collection and transport vehicles can be rec-
orded and controlled.
The TIGER 3003 version is used to control milk intake and record the data
entered during that process.
The system is operated from the compact controller.
Switching on the system and operating the vehicle system depend on the spe-
cific vehicle type and the operating instructions applicable thereto.
3.1 Compact Controller
The compact controller is the main control and information unit for the whole
system. Communication between the controller and other components in a
system is handled via USB or, for P-NET devices, via P-NET.
3.1.1 Keypad

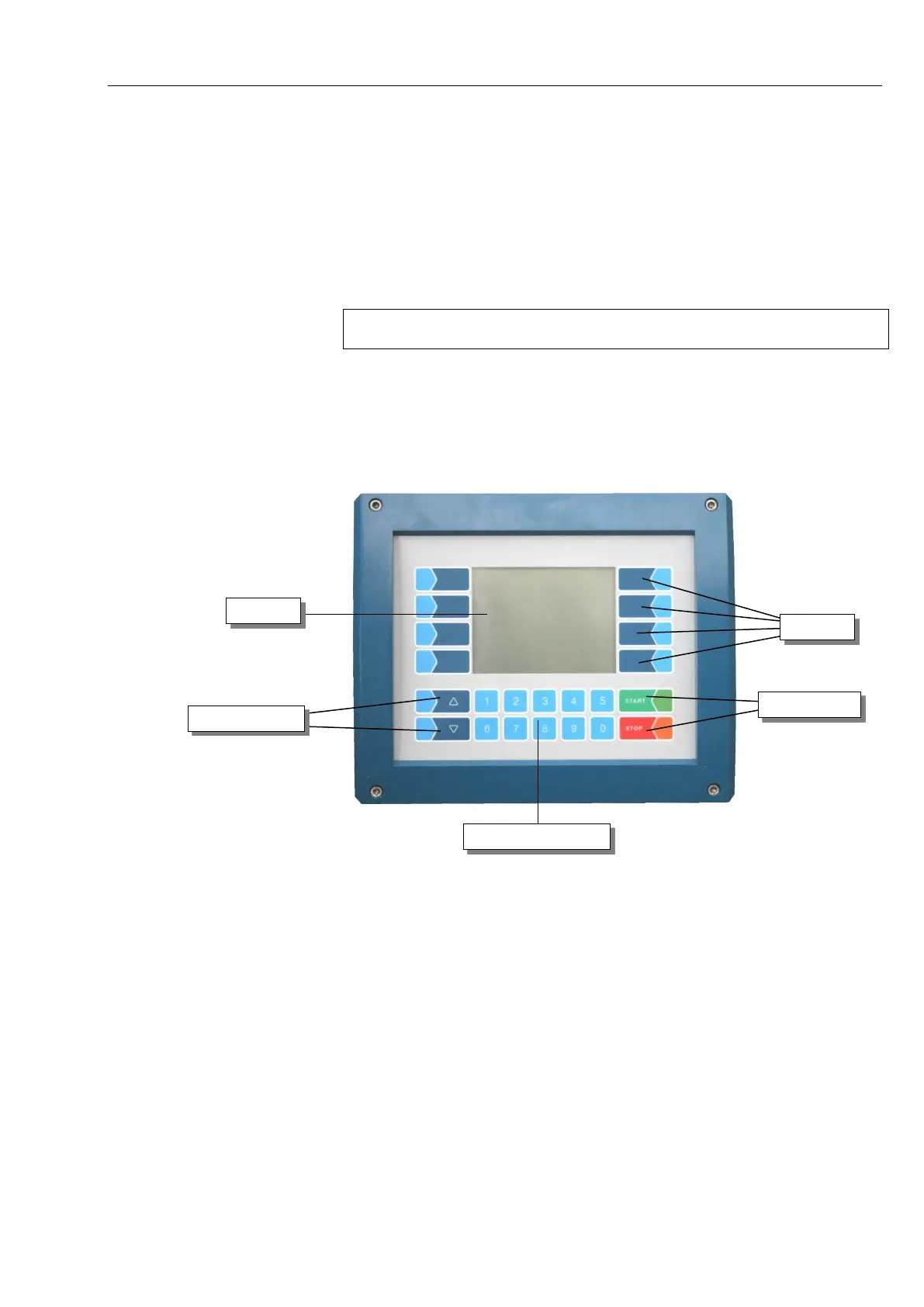

The system is operated using the touch-sensitive keys on the control unit
(touch screen) (number keys, selector keys, soft keys and operating keys) and
using the key functions which appear the display depending on the situation.
The functions of the soft keys are controlled by the software based on the
current operating status.
3.1.2 Display
A graphic display screen which is designed as a touch screen is used to show
all readouts. Thanks to the backlit transreflective liquid crystal technology
used, the display can be easily read even in darkness or bright sunlight.
