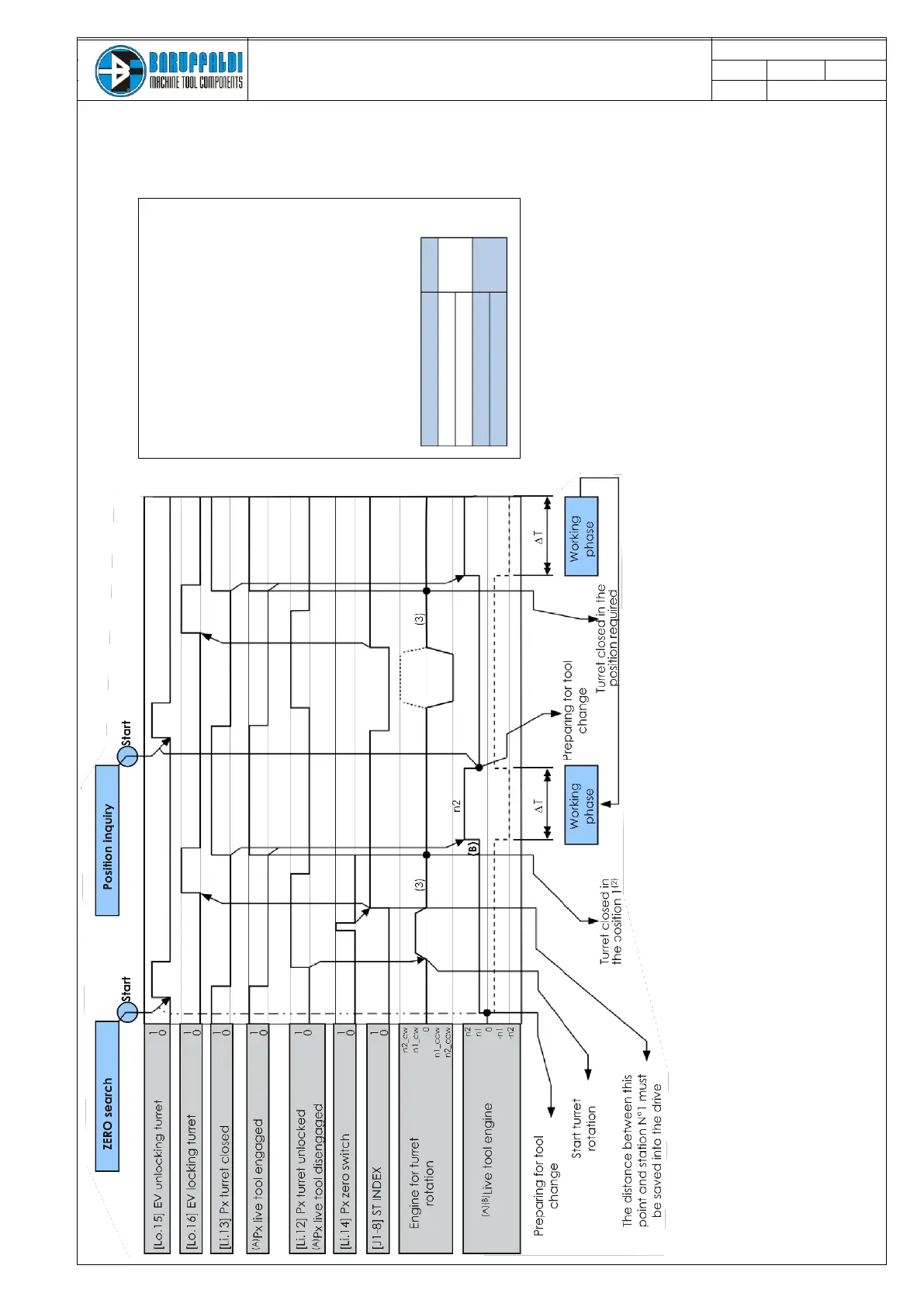

11. DUTY CYCLE (BMT/DIN5480/DIN1809 LIVE TOOL TOOLING SYSTEM)
(A) Only motorized turrets
(B) Keep the motor in
zero
position
(1) Px switch live tool engaged:
management borne by the
manufacturer of CNC.
(2) Hidden Zero search:
with turret
not indexed (for ie after start up
or a reset) you can directly call a
station, the turret will rotate in the
CW direction at low speed, pass
over through the mechanical
station 1 without stops and goes
straight to the position required.
ΔT Minimum time before the new
position request
(2) Management of the proximity live tool switch
engaged
The use of the signal of the live tool engaged is optional and at the discretion of the manufacturer of the CNC.
If you wish to handle the signal of live tool engaged, keep in mind that the live tool may not be engaged even if
the turret is
closed due to the fact that the teeth of the motor and live tool are attested. This condition is
provided, the effective coupling and
therefore also the signal from the proximity switch will arrive as soon as the
tool will lean to the workpiece.
