INSTALLATION AND USE MANUAL
SERVO DRIVE TYPE – DB21

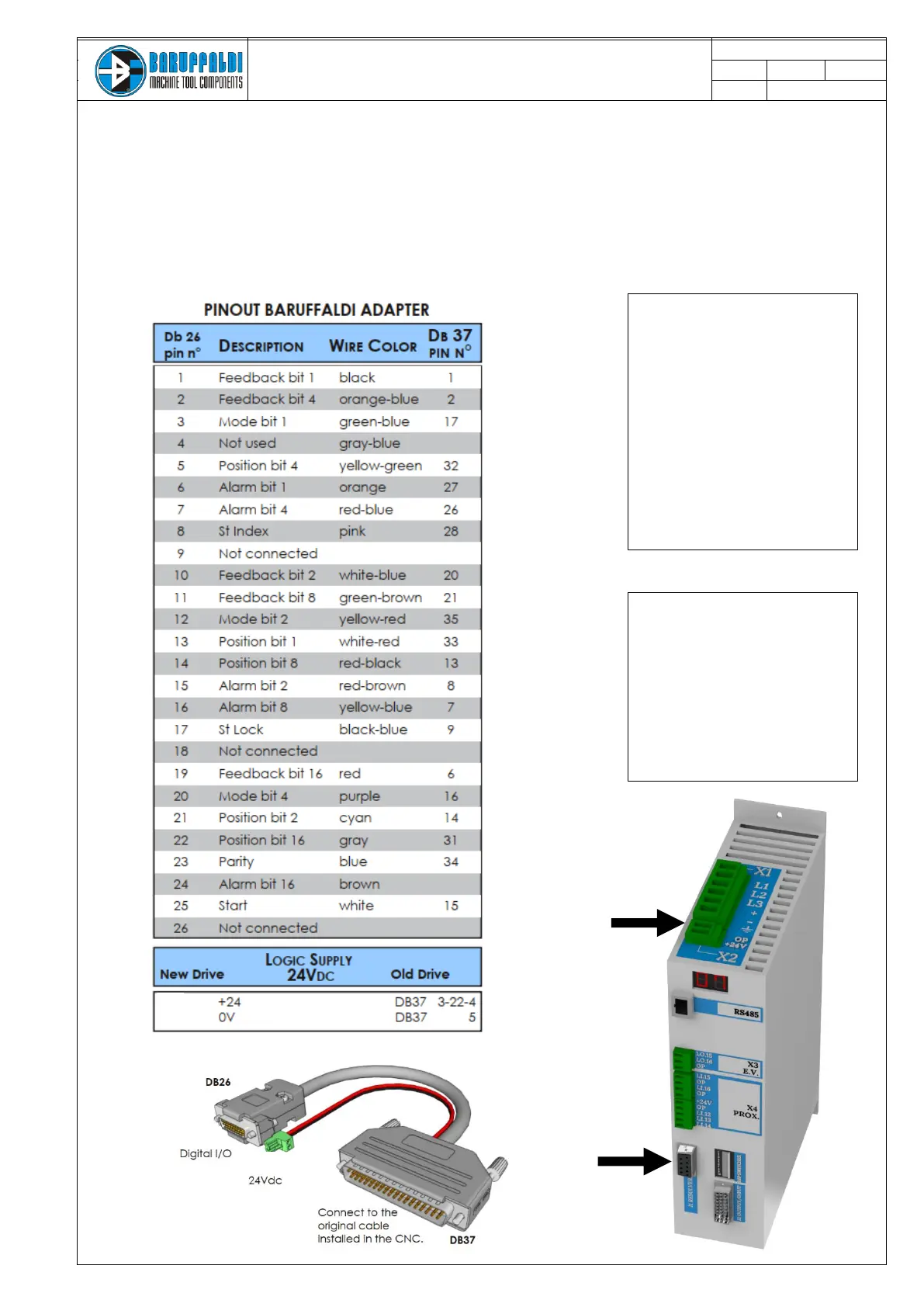

14 CABLE ADAPTER FOR OLD DRIVE INTERFACING
The installation of the new drive (Model DB-21) on CNC instead of the previous versions* requires rewiring the
connector J1 or the adoption of an adapter DB37 to DB26: ask details and price to Baruffaldi service or sales
department.
*not valid for Drive model DMS-08
POSITION FEEDBACK
The outputs of the position
feedback are not present in
the drive before type DMS08-
BF. These outputs
communicate the station of
the turret and gives a
supplementary information.
However it's possible to the
turret signals ST INDEX and
ST LOCK as permission to
work, so it is not necessary
modify the PLC program.
ALARM BIT 16
In the new drive has been
added 1 bit to the alarm list.
Might be possible that the
alarm feedback description
on CNC screen generate a
wrong message, in case of
turret alarm always check
the error number on the
Drive screen.
