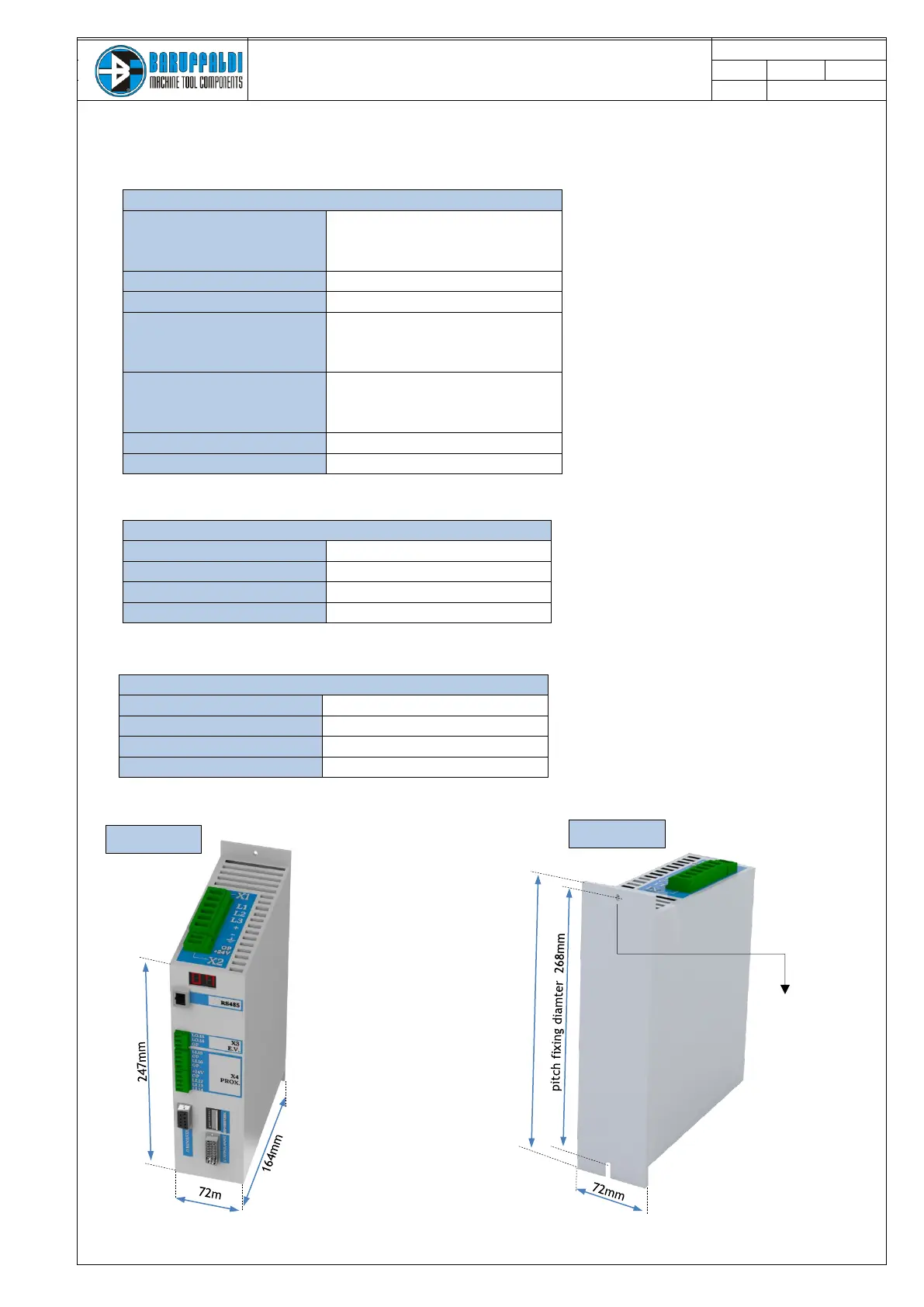

Baruffaldi DB21 - SPECIFICATIONS; PARAMETERS AND LIMITS OF USE; VOLUME AND WEIGHT

INSTALLATION AND USE MANUAL
SERVO DRIVE TYPE – DB21
M.DRIVE.DB-21.GEN.ENG
Ed.
2022
Rev.11
Pag.
6 di 34
1.3 SPECIFICATIONS
PARAMETERS
Power supply
3x230V
3x400V
+10/-15% 50÷60Hz 2KW
Logic power supply
24VDC ±10%
Nominal Current
6Arms
Method of current
control
SPWM, chopper frequency
3÷10 KHz
Motor control method
Torque control, speed
control,
angular position control
Clamp resistance
47Ω/50W
Protection grade
IP 20
LIMITS OF USE
Atmospheric temp.
0/+40°C
Storage
0°C/+60°C
Relative humidity
5-95% *
Altitude
<1000m slm
VOLUME AND WEIGHT
Width
72 mm
Height
278 mm
Depth
164 mm
Weight
2 Kg
FRONT SIDE
REAR SIDE
278mm
fixed screw M4
