13.6 RESOLVER ACQUISITION FOR LINEA ARCHIMEDE (TB/TBMA/TBMR) / LINEA ECOLINE (TBH/TBHMA)/ LINEA LEONARDO
(TC/TCMA/TCMR/TCMQ)
With this operation will be stored in the drive the value of the resolver when the turret is in position 1,
this value will be used to verify that the required station is reached by the turret at the end zero
research (also hidden zero research).
This procedure is performed in the factory during the test drive turret and need to be repeated only in
the case that the drive or the motor are substituted or when the motor is removed from the turret.

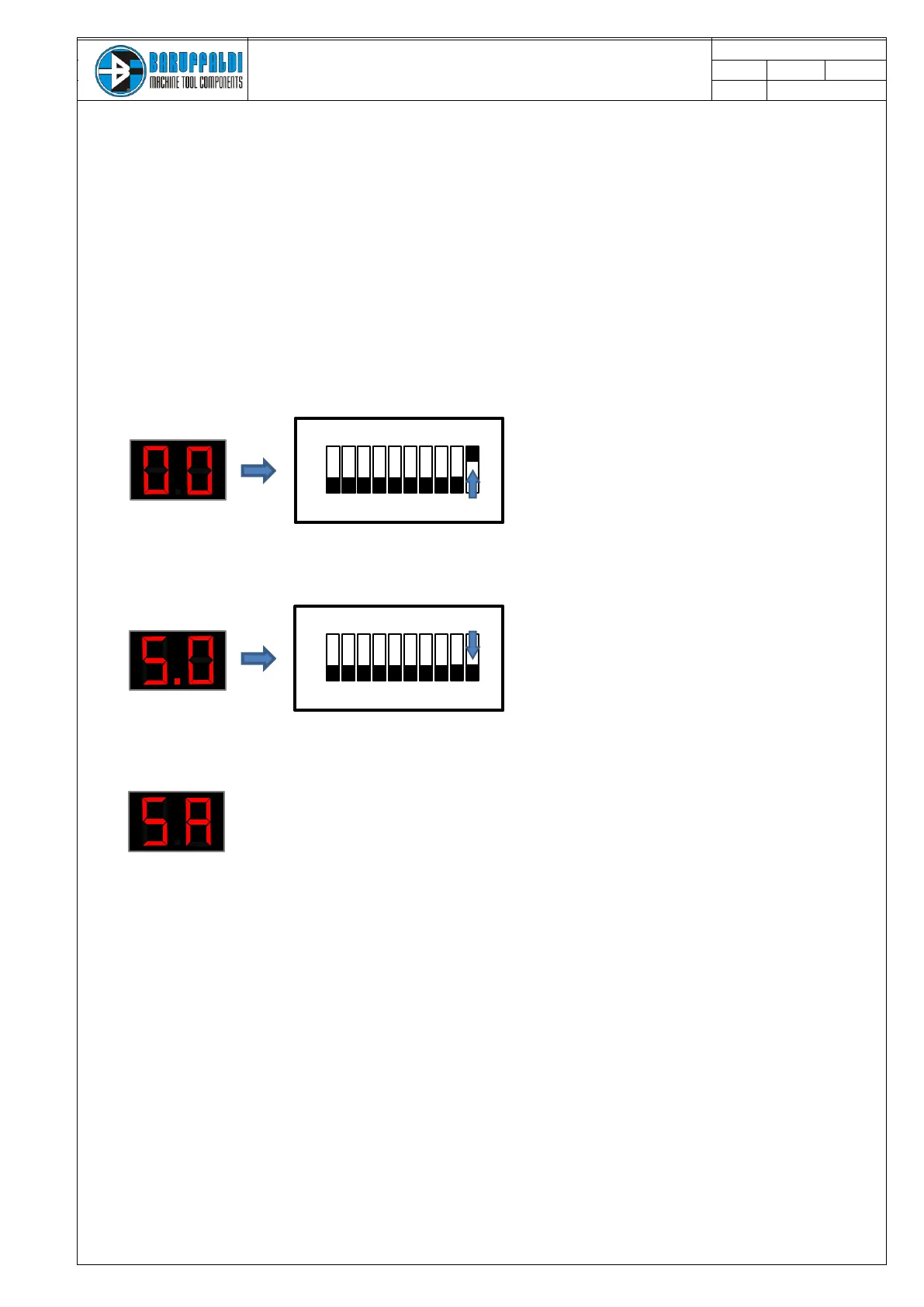

Sequence:
- Make sure the turret is closed in position 1
- Switch on the drive
- Set to ON the dipswitch n°10
- At the end of 5" counting re-set the pin n°10 OFF
- The "SA" letters on the display means that the acquisition is finished
- The Drive is now ready to work
