Baruffaldi DB21 - DRIVE REPLACEMENT (SET-UP AND SETTING)

INSTALLATION AND USE MANUAL
SERVO DRIVE TYPE – DB21
M.DRIVE.DB-21.GEN.ENG
Ed.
2022
Rev.11
Pag.
28 di 34

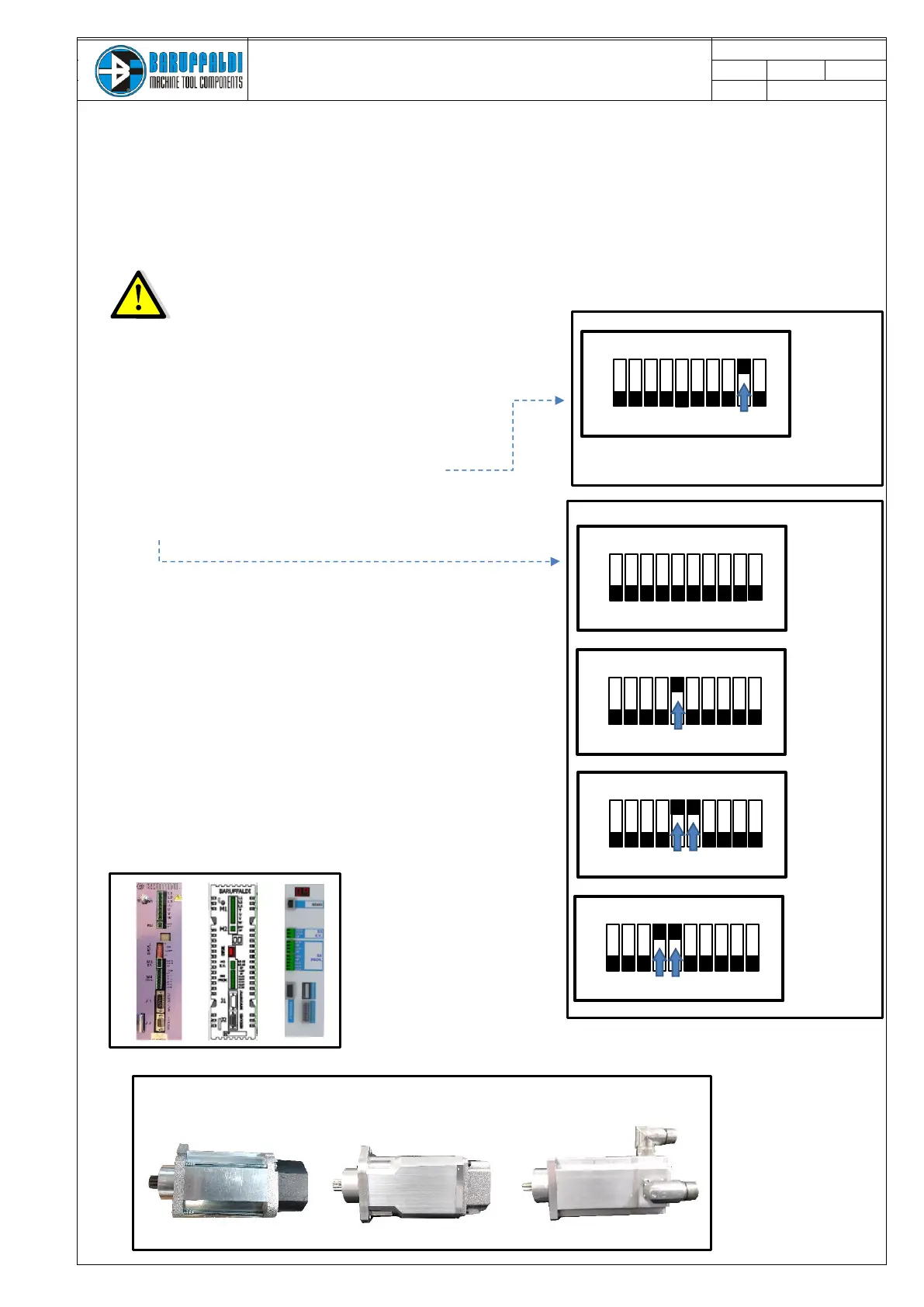

13.3 DRIVE REPLACEMENT (SET-UP AND SETTING)
This procedure is used to change the setting of the drive in order to use it with all turrets type and motor
produced. Follow the timeline (chapter 13.2.1) for understand the correct setup to apply to the drive:
Before indexing the turret complete all the step here below, included the input voltage
selection, turret is supplied with its own drive already pre-set and ready to work with 400 V
VOLTAGE.
Lafert 10KHz
TB-TBH-TAB Lines
MB-21
TB-TBH-TAB Lines
MB-22
TC Line
Sequence of operations N°1:
1. Drive OFF (24Vdc Off)
2. Set to OFF all dipswitch
3. Set to ON dipswitch n°9 (turret setting mode)
4. Set the input motor and turret type as the
tables below.
5. Turn ON the drive (auxiliary supply 24V dc)
Display shows ="AF"
6. Set to on the dipswitch n°10 and after 5” set
them off
7. The message on the display "SA" means that
the setup has been saved
8. Switch OFF the drive
5. Turn ON the drive (auxiliary supply 24V dc) Display
shows ="AF"
6. Set to ON the dipswitch n°10, the drive counts upto
5, then re-set OFF the dipswitch n°10 the drive counts
down and will displays 01.
7. The message on the display "SA" means that the
setup has been saved
8. Switch OFF the drive
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
K2
TB SERIES
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
K5
TB SERIES
TC SERIES
K3
TB SERIES
K5-BIS
TBH SERIES
DMS08
-BF
DB-21
DMS08
-BF
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
