13.5 MOTOR REPLACEMENT FOR LINEA LEONARDO (TC/TCMA/TCMR/TCMQ)

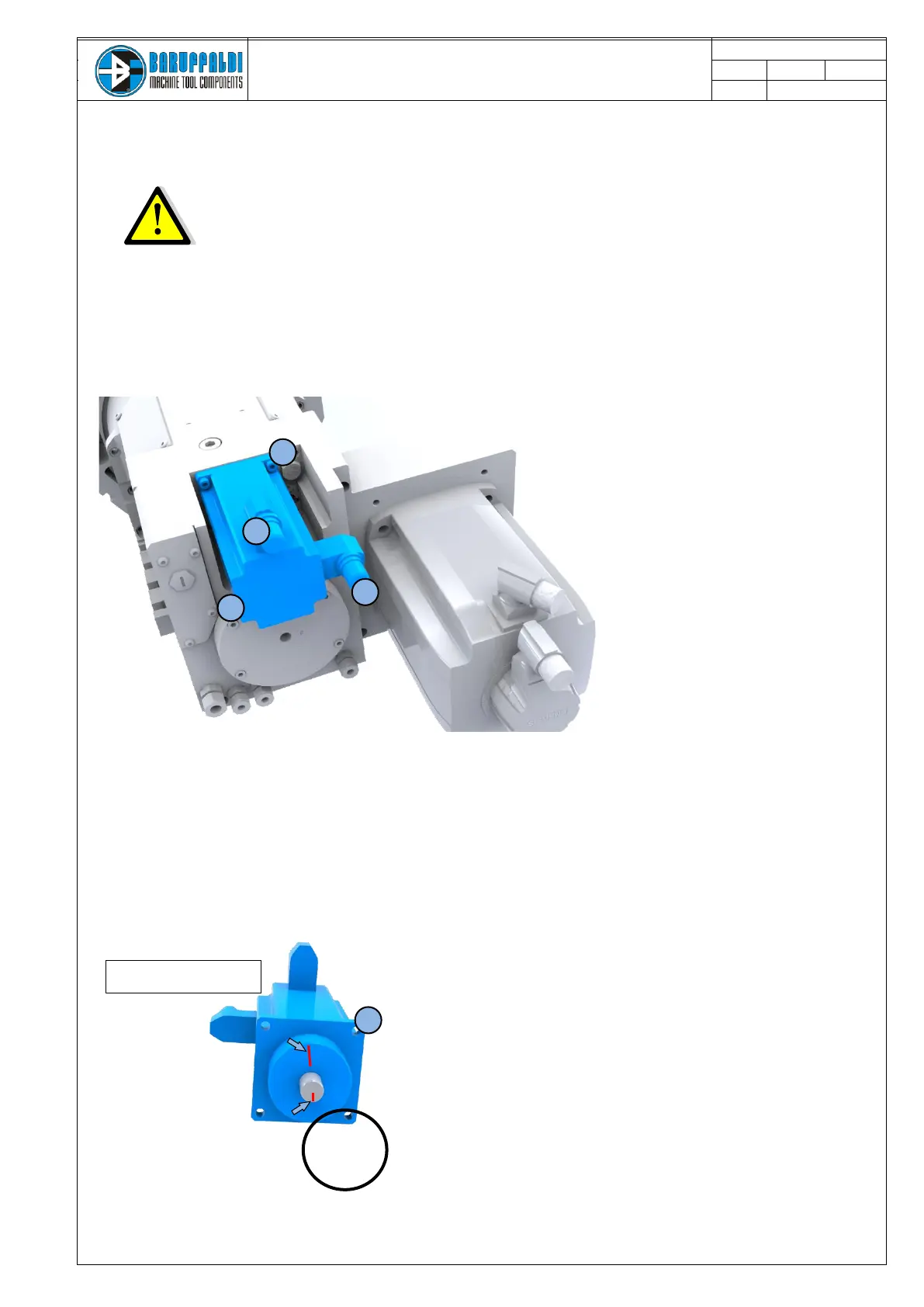

➢ Disassembling the motor
- Lock the turret on the 1
st
position and Power OFF the machine, the hydraulic pressure must be zero.
- Remove the machine cables disconnecting connectors (1)
- Remove the bolts (2)
- Remove the Motor (3) and it’s o-ring
➢ Putting on new motor
- Before to fit the new motor into the turret rotate the motor gear aligning Y mark, as shown in the
picture below, opposite to the X mark
- Fit new motor (3) on turret housing and check that O-ring is properly fitted in its own seat
- While locking screws (2), slightly turn motor housing clockwise, in order to reduce clearance between
motor pinion and gear inside turret housing
- Re-connect the connectors (1)
- Make a zero acquisition (chapter 13.6)
This operation must be carried out with locked turret in POSITION 1 no pressure in all
circuits and motor+drive power off!
Instructions below refer to turrets equipped with Baruffaldi motor; for different motors,
please contact our Technical Department.
