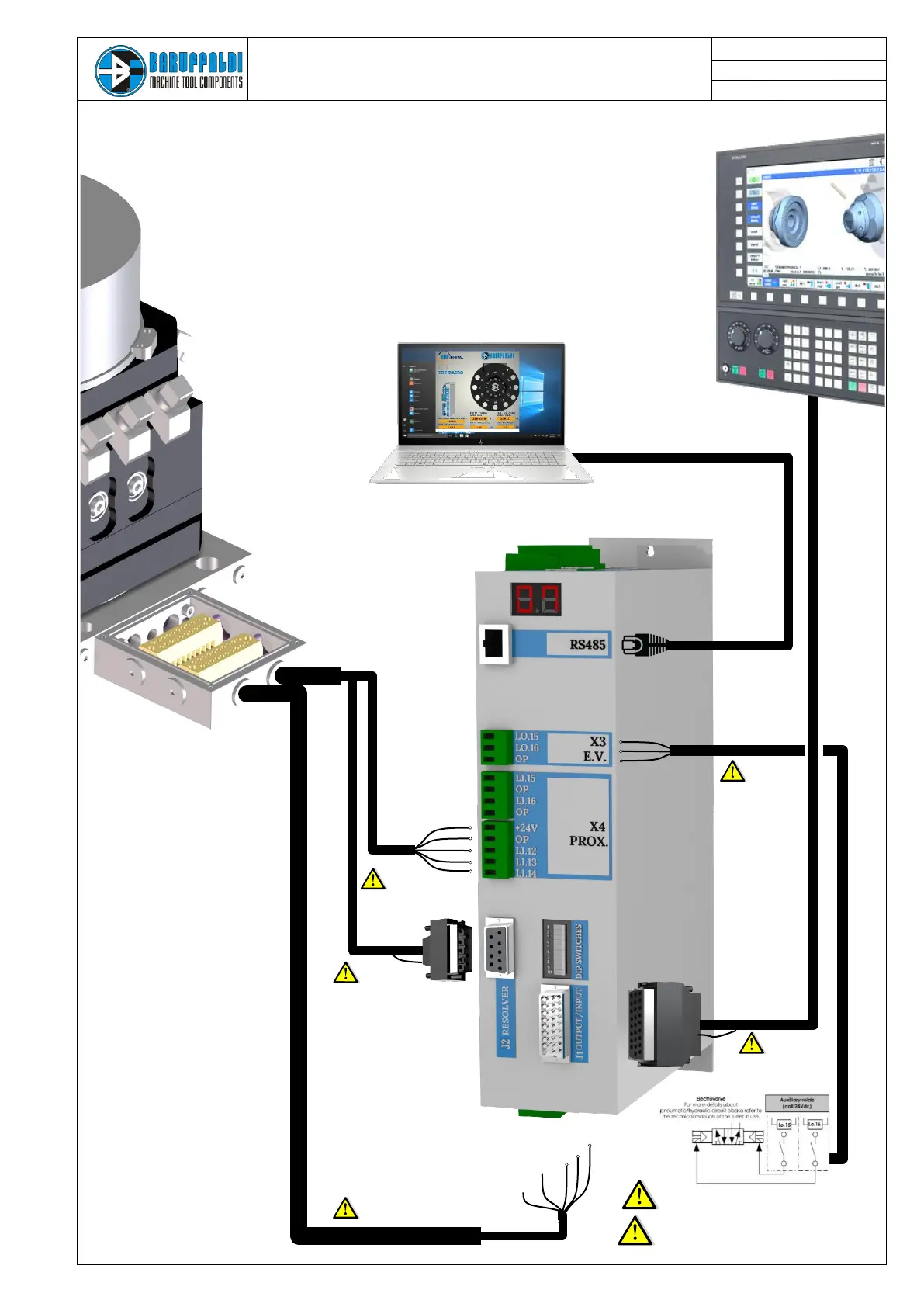

3. DRIVE AND TURRET LAYOUT
U
V
W
ground
shield
X5
X4
J2
X3
RS485
J1
X3
Software supervisior only for Service support
The using of auxilliary relais between the
drive and the electrovalves is mandatory
X4 connections (Lo.15, Lo.16, OP) must be conencted
directly to the drive without bypass the signals trhu
the CNC
shield cable
shielded cable
shielded cable
shielded cable
shielded cable
shielded cable
