13.4 MOTOR REPLACEMENT FOR LINEA ARCHIMEDE (TB/TBMA/TBMR) AND LINEA ECOLINE (TBH/TBHMA)
➢ Disassembling the motor
- Lock the turret on the 1
st
position and Power OFF the machine, the hydraulic pressure must be zero.
- Remove the cover of the motor (1)
- Disconnect the motor wires from the terminal block (2)
- Remove the motor (3)
➢ Putting on new motor

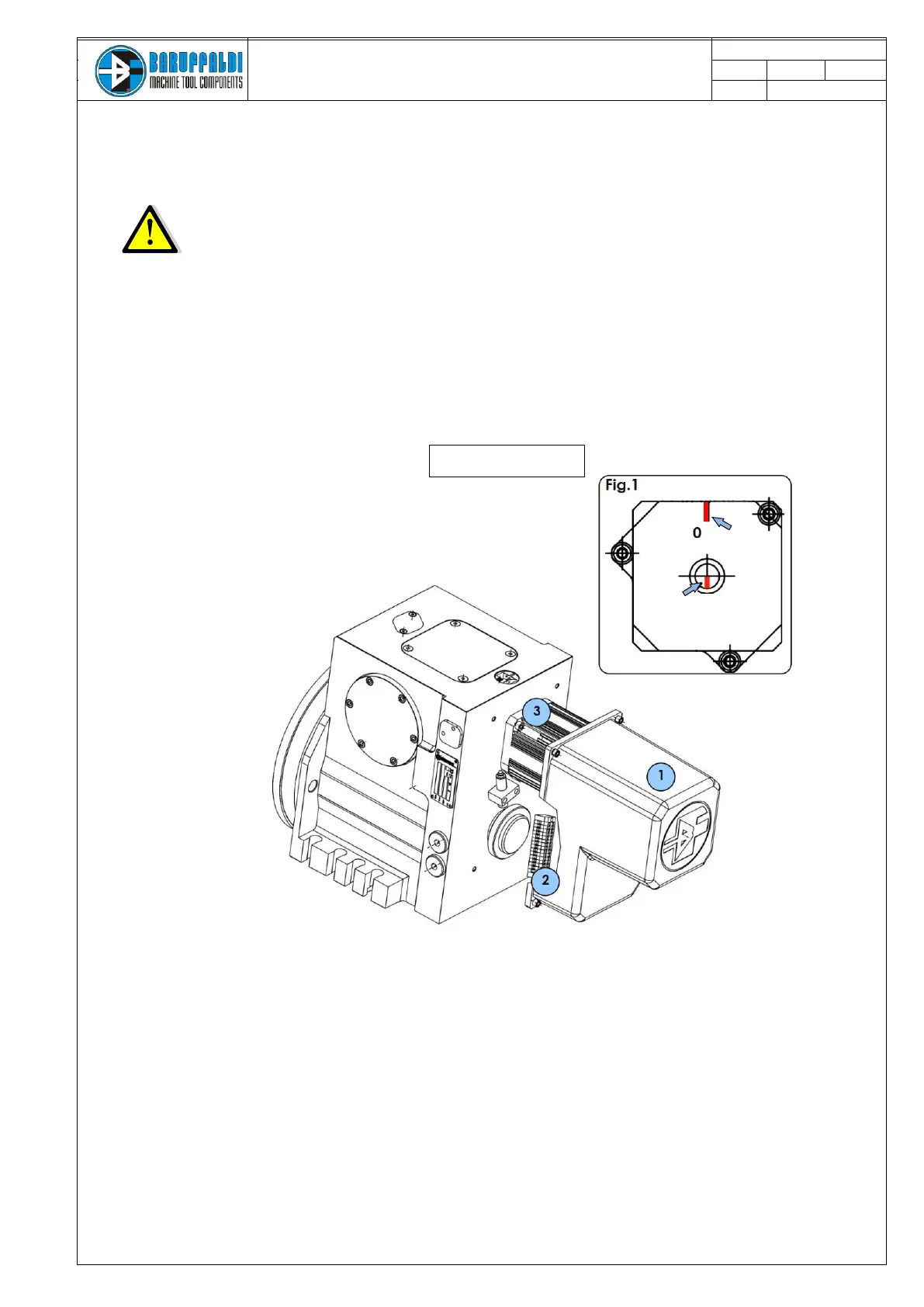

- Before to fit the new motor into the turret rotate the motor gear aligning Y mark, as shown in the
picture below, opposite to the X mark
- Fit new motor (3) on turret housing and check that O-ring is properly fitted in its own seat
- While locking screws, slightly turn motor housing clockwise, in order to reduce clearance between
motor pinion and gear inside turret housing
- Re-connect the cables to terminal block (2)
- Make a zero acquisition (chapter 13.6)
This operation must be carried out with locked turret in POSITION 1 no pressure in all
circuits and motor+drive power off!
Instructions below refer to turrets equipped with Baruffaldi motor; for different motors,
please contact our Technical Department.
