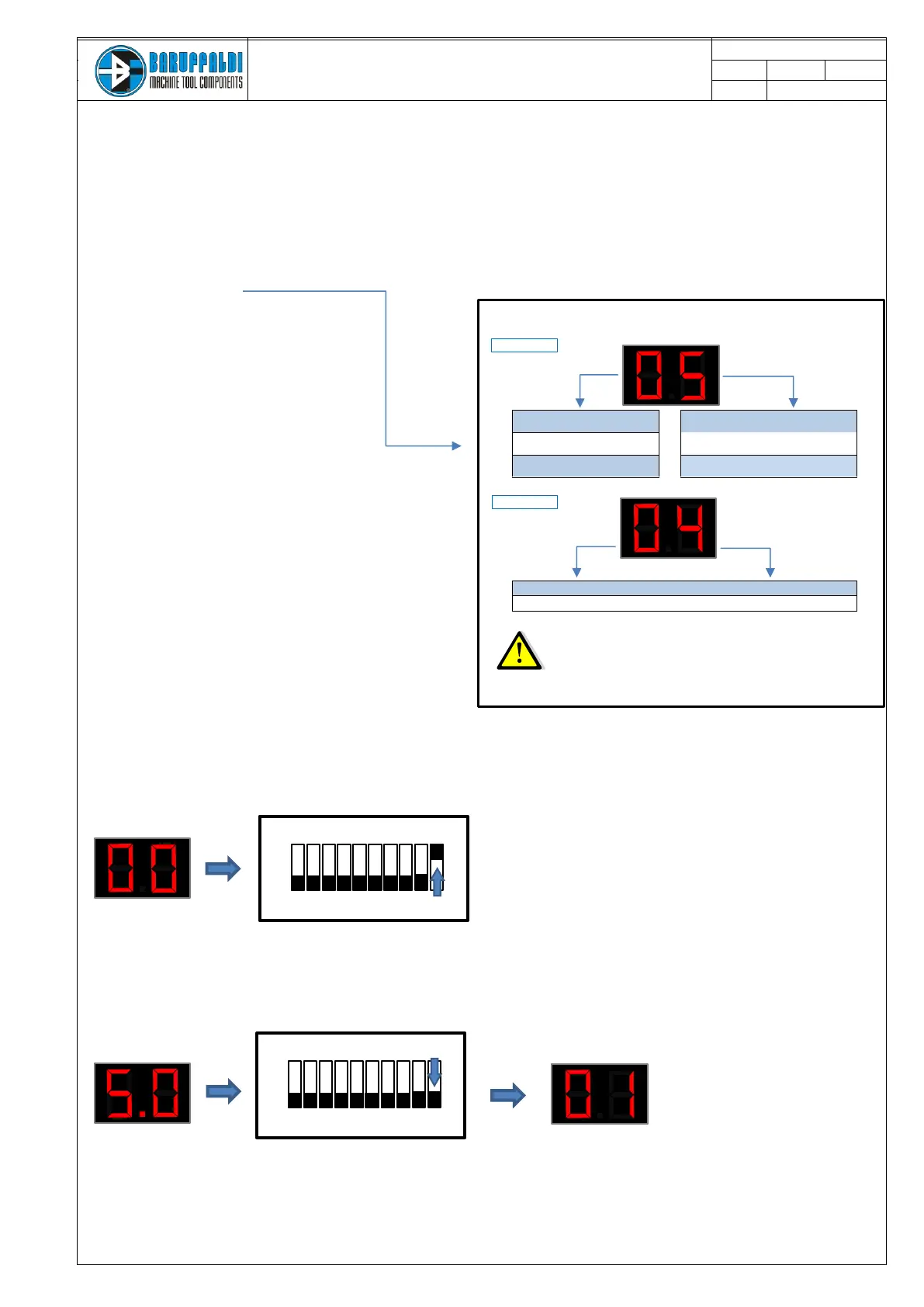

The display will alternate the turret set up and the voltage set up
5 - CODE FOR K5/KL TURRETS
+
0 - CODE FOR LAFERT 10KHz MOTOR
. (TB-TBH)
3 - CODE FOR K3 TURRETS
0 - CODE FOR MB21 10KHz MOTOR
. (TB-TBH)
2 - CODE FOR K2 TURRETS
0 - CODE FOR MB22 10KHz MOTOR
. (TC)
40 - CODE FOR 400V INPUT VOLTAGE SETUP
23 - CODE FOR 230V INPUT VOLTAGE SETUP
In the case of WRONG SET UP could be activate one of the following alarms:
- Voltage not set-up incorrect or not connected (EE)
- Resolver failure 8.0 at startup
- Locking Error (5.x) after position inquiry
- Position Error (6.x) after position inquiry
3. Switch ON the drive
4. Check on the display if the drive setup correctly.
The display will flash for 10 seconds shown:
- as a first indication the turret series and motor setup
- as second indication the input voltage selected
(see tables below)
5. ACQUISITION PROCEDURE : Set to ON the dipswitch n°10 for
a count to 5 on the drive display
then re-set the dipswitch n°10 OFF for a countdown to 0.
The Drive/Turret is ready to work
DISPLAY
VOLTAGE SET UP
c
TURRET SET UP
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
