9. DRIVE SET-UP (NEW TURRET INSTALLATION)
CAREFULLY CHECK THE SERVO DRIVE INPUT VOLTAGE SETTING.
A WRONG SETTING OF THE INPUT VOLTAGE WOULD DAMAGE IRREVERSIBLY THE UNIT.
THE DRIVE ARRIVE WITH THE TURRET PRE-SET, IN CASE OF WRONG PRESELECTION OF THE
TURRET SIZE AND TYPE CONTACT BARUFFALDI.

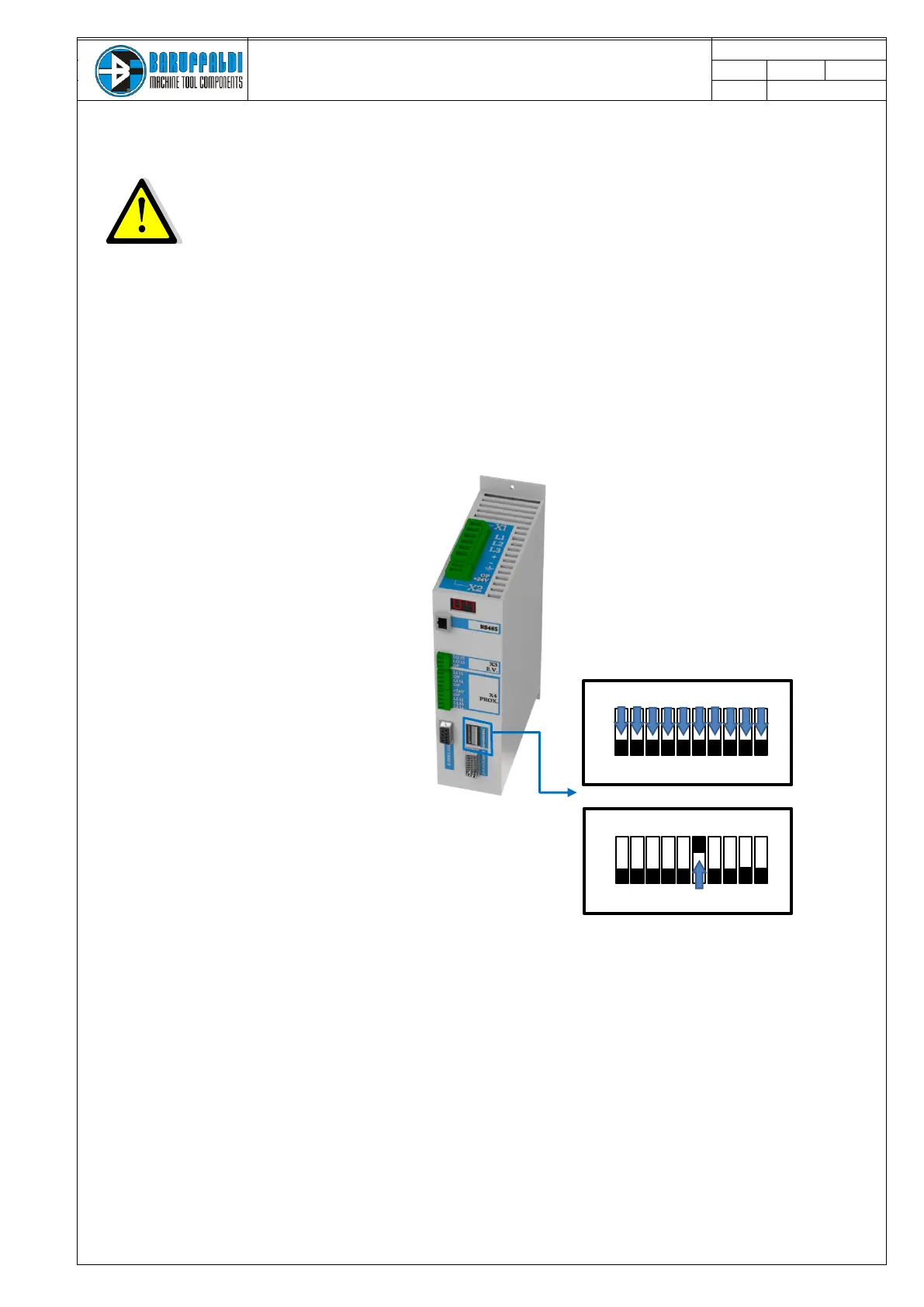

Sequence of operations N°2
(VOLTAGE SETTING)
1. Drive OFF (24Vdc Off)
2. Set OFF dipswitch n°6 if the input voltage
is 400V, set ON dipswitch n°6 if input voltage
is 230V.
3. Drive ON
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
220V
400V
Dipswitch
ON
OFF
1 2 3 4 5 6 7 8 9 10
