INSTALLATION AND USE MANUAL
SERVO DRIVE TYPE – DB21

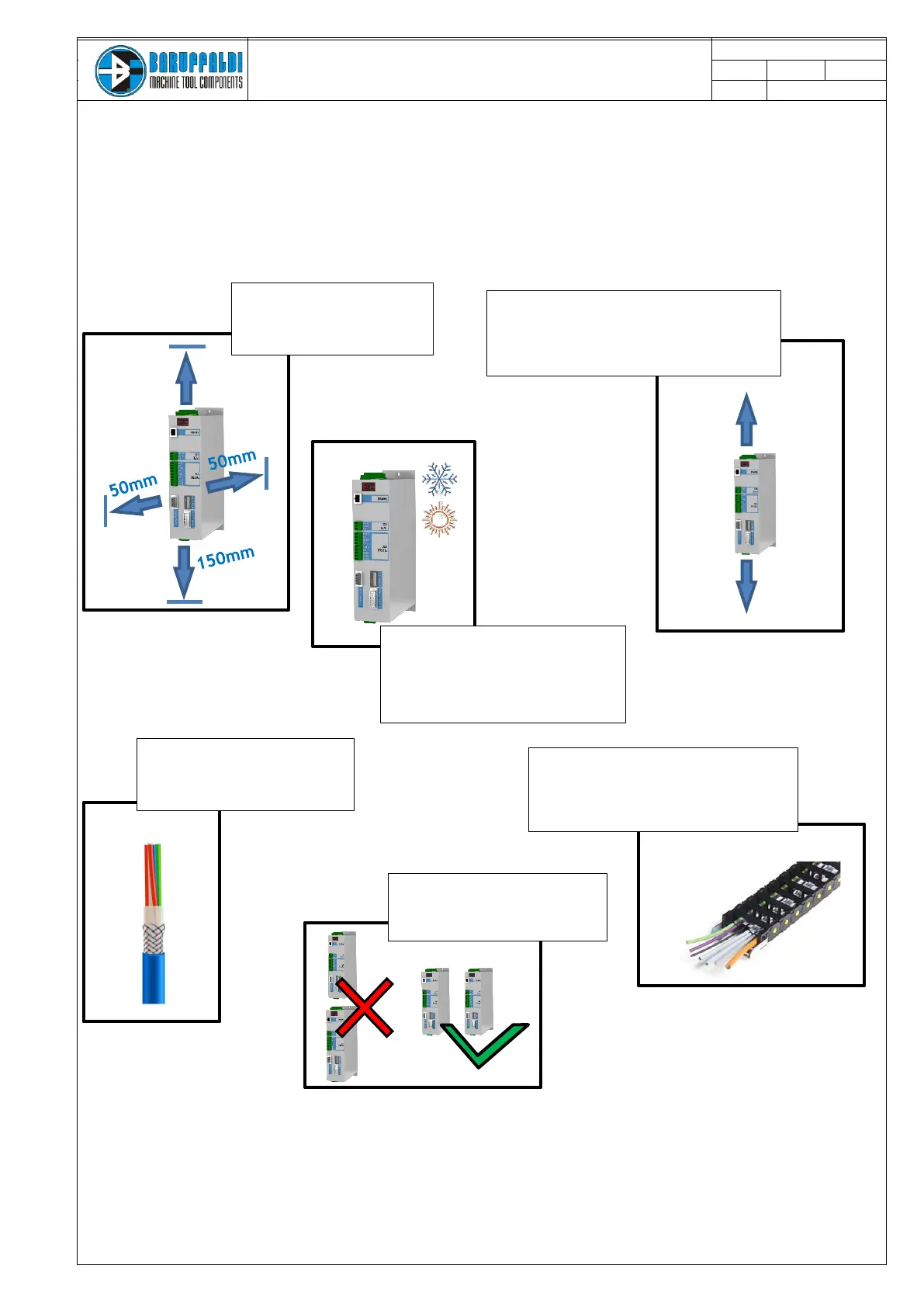

►It is advisable to install the power parts of the motor control unit (drive, transformer, filters and resistances)
in metallic divisions separate from those assigned to command and control devices. If the power supplies of
the power groups are the same as the control apparatus, they should be connected in the same position
(entrance point of the electronic device) in a star configuration.
The servo amplifiers must not be install
in the venting flow of other devices
All the cables must be shielded and
connected to the ground in order to
TURRET CABLE INSTALLATION
It is necessary to separate the turret cables from
other machines cables (e.g separate
canalisations) or the use of an external shielded
wiring harness on the turret cables
Smooth operations and life of Servo amplifier
module rely on keeping temperature at all
times within the operating range of 0°C to
+40°C. Temperature should then regularly
The Drive must has a clearance of
50mm on the side and 150mm
Servo amplifier module must be installed in vertical
position only. Sideways or horizontal placement should
not be made, as in this way correct heat exhaustion
isnot guaranteed, and failures would occur
