9424200996 20-3
BE1-11m Thermal Curve (49TC) Protection

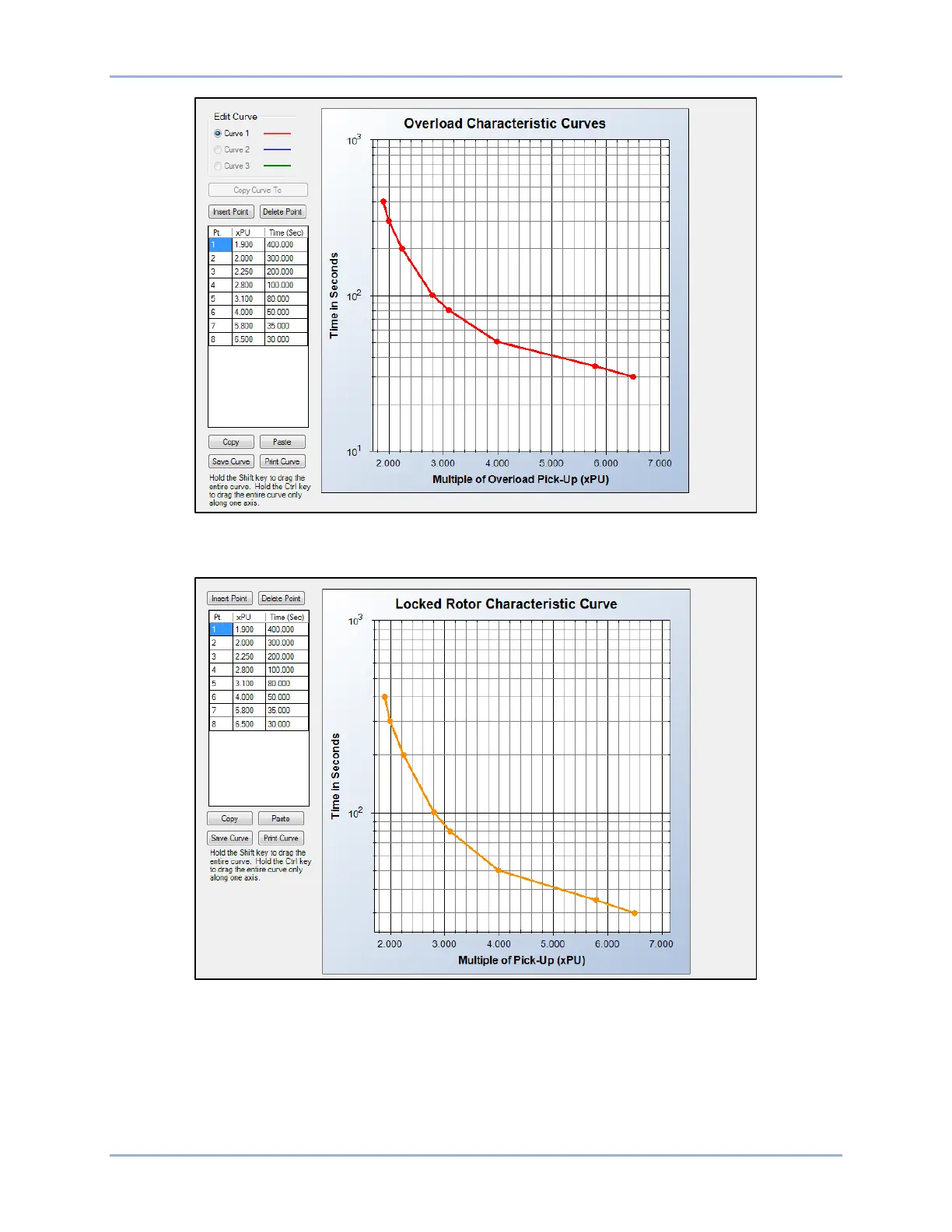

Figure 20-1. Overload Characteristic Curves Screen
Figure 20-2 shows the Locked Rotor Characteristic Curve screen.
Figure 20-2. Locked Rotor Characteristic Curve Screen
