Analog Input Protection BE1-11m
Element Blocking
The Block input provides logic-supervision control of the element. When true, the Block input disables the
element by forcing the Trip and Pickup outputs to logic 0 and resetting the element timer. Connect the
element Block input to the desired logic in BESTlogicPlus. When the element is initially selected from the
Elements view, the default condition of the Block input is a logic 0.
Logic Connections
Remote analog input element logic connections are made on the BESTlogicPlus screen in
BESTCOMSPlus. The remote analog input element logic block is illustrated in Figure 24-1. Logic inputs
and outputs are summarized in Table 24-1.

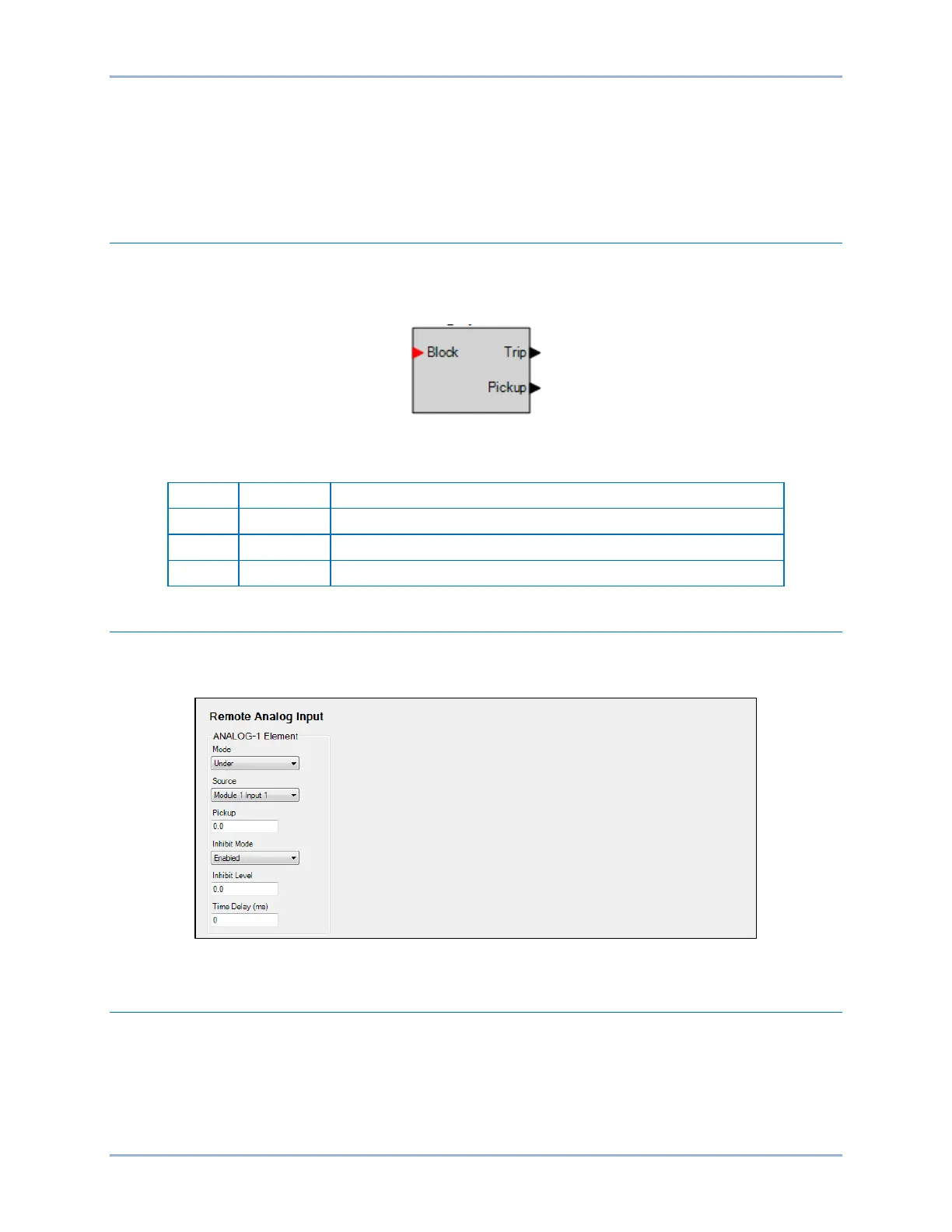

Figure 24-1. Remote Analog Input Element Logic Block
Table 24-1. Logic Inputs and Outputs
Disables the analog input element when true
True when the analog input element is in trip condition
True when the analog input element is in pickup condition
Operational Settings
Remote analog input element operational settings are configured on the Remote Analog Input settings
screen (Figure 24-2) in BESTCOMSPlus.
Figure 24-2. Remote Analog Input Settings Screen
Remote Analog Input Metering
Analog input metering values are obtained through BESTCOMSPlus by using the Metering Explorer to
open the Analog Metering, Analog Inputs tree branch. BESTCOMSPlus must be online with the BE1-11m
to view analog input metering. Alternately, values can be obtained through the front-panel display by
navigating to the Metering, Analog Metering, Analog Input screen.
