9424200996 43-5
BE1-11m BESTnet™Plus
Sequence of Events
Figure 43-7 illustrates the Sequence of Events Summary page. A summary of the sequence of events is
shown on this screen. The view can be customized by clicking on View New, View Protection, View
Alarms, or View Targets. A selected subset of event data can be downloaded as a *.csv (comma-
separated values) file.

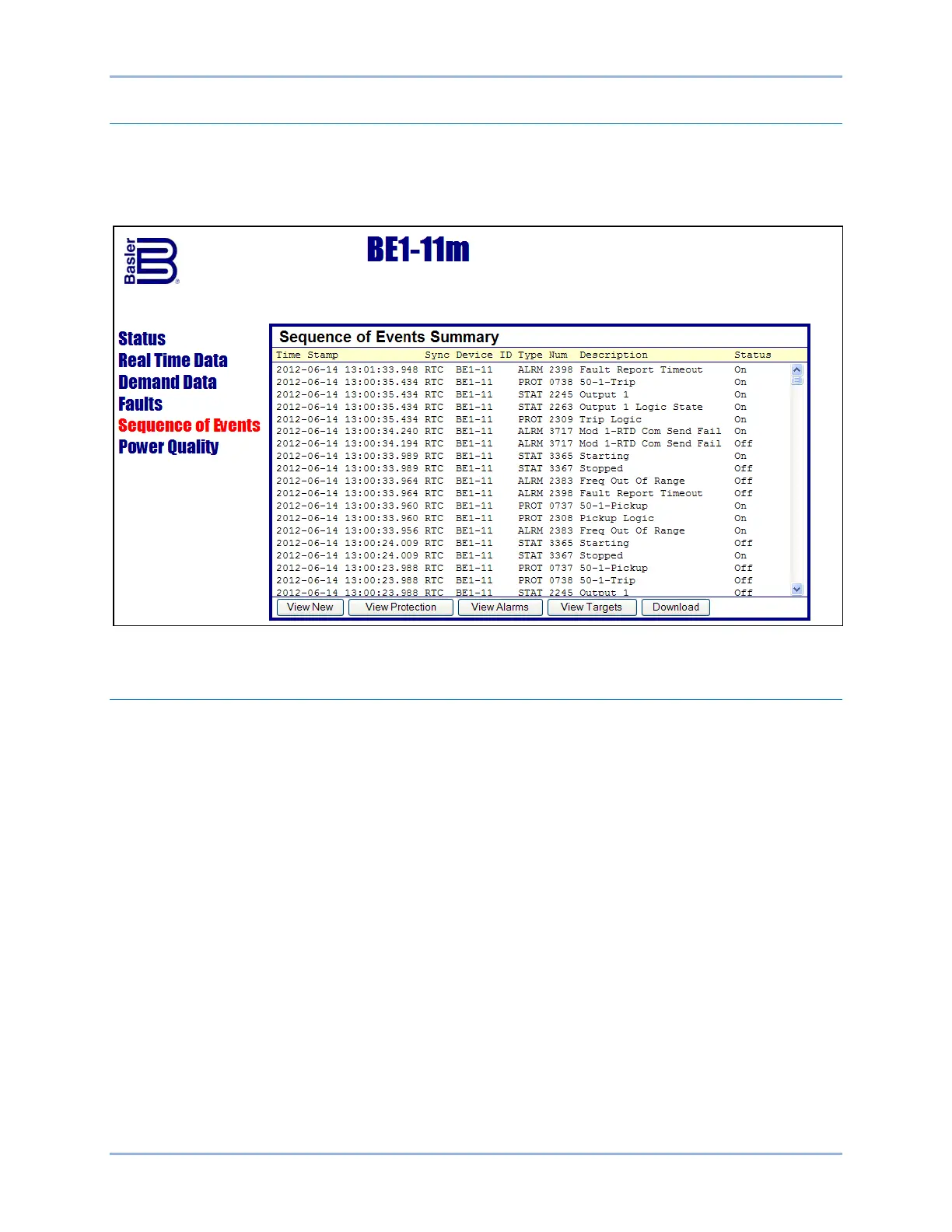

Figure 43-7. Sequence of Events Summary Page
Power Quality
Figure 43-8 illustrates the Power Quality page.
