Basler BE1-11m User Manual

9424200996 64-3
BE1-11m Breaker Fail (50BF) Test
Setting
Value
BESTCOMSPlus Screen
Description
Pickup
2 A
Protection, Current, Instantaneous
Overcurrent (50-1)
Sets pickup to 2 A
Source
CT Circuit 1
Protection, Current, Instantaneous
Overcurrent (50-1)
Selects CT circuit 1 as the
source
Step 8: Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure
64-2.
• 50BF Blocking is disabled.
• 50BFI is initiated with 50-1 Trip.
• 52BFI is disabled.
• OUT1 closes for 50BF Trip.
• OUT2 closes for 50BF ReTrip.
• OUT3 closes when minor alarm is true. (Minor Alarm = Breaker Fail)
• Fault recording is enabled.
• Breaker Status is disabled.
• 50-1 Blocking is disabled.

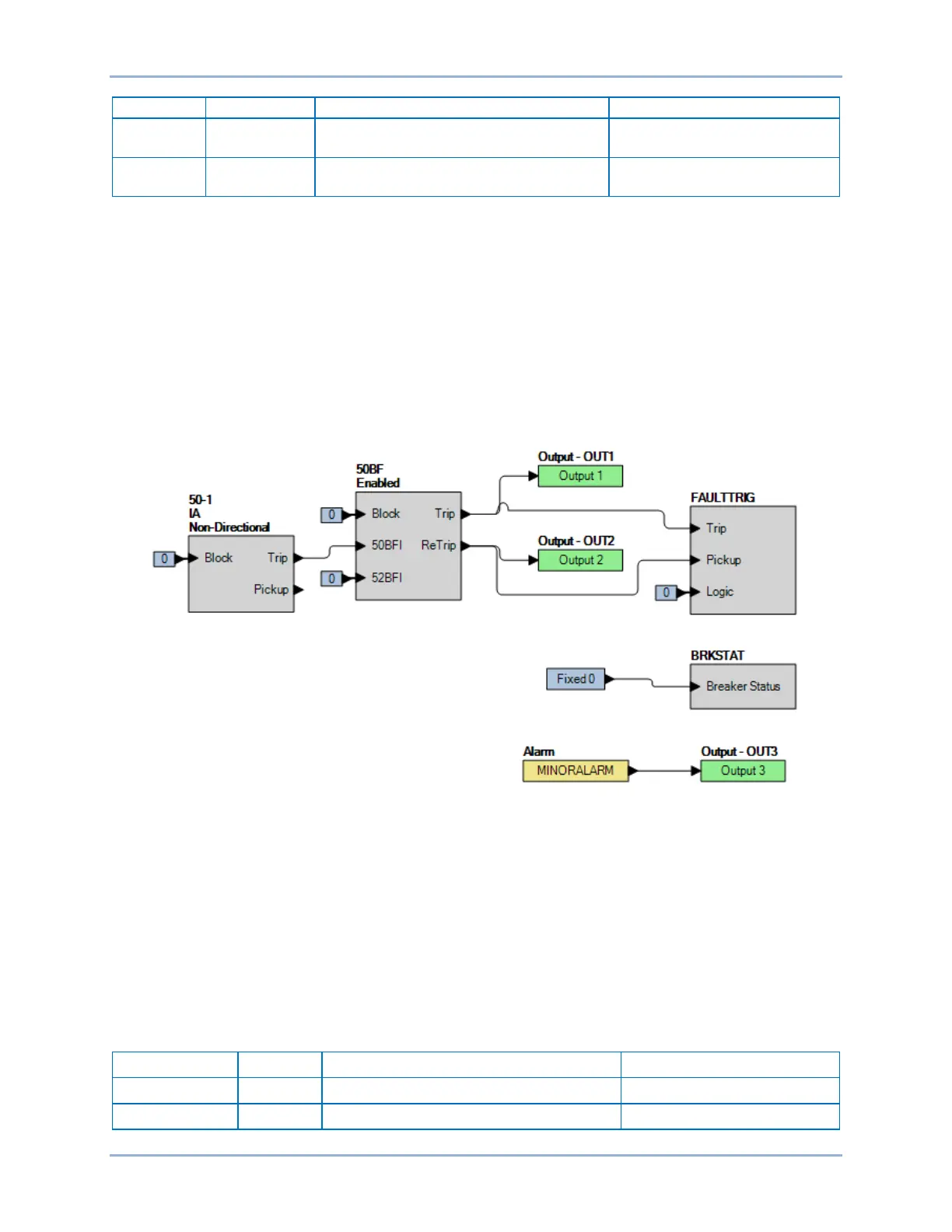

Figure 64-2. BESTlogicPlus Settings (BFI50 Current Supervised BE1-11m Trip Initiate)
Step 9: Verify the BF time delay by applying pickup current (above 2 A) to phase A for at least 100 ms.
A 50BF Trip should occur. Use BESTCOMSPlus to retrieve an SER report and verify that a
50BF Trip was logged 100 milliseconds ±0.5% (1¼ cycles maximum for currents ≥ 5 times the
pickup setting. 1¾ cycles maximum for a current of 2 times pickup. Two cycles maximum for a
current of 1.05 times the pickup setting) after application of pickup current.
Step 10: (Optional.) Raise 50-1 Pickup setting to 10 amps and apply nominal current to the BE1-11m.
Note that OUT1 and OUT2 do not operate. No initiate prevents operation of the breaker failure
function, blocking the breaker fail logic.
Step 11: Verify the Control Time function by using BESTCOMSPlus to send the settings in Table 64-3 to
the BE1-11m.
Table 64-3. Control Time Delay Settings
Setting
Value
BESTCOMSPlus Screen
Description
Phase Pickup
1 A
Protection, Current, Breaker Fail (50BF)
Sets phase pickup to 1 A
Ground Pickup
1 A
Protection, Current, Breaker Fail (50BF)
Sets ground pickup to 1 A
