Phase Current Differential (87) Test BE1-11m
Setting
Value
BESTCOMSPlus Screen
Description
27/59 Mode
PN
System Parameters, Sensing
Transformers
Sets 27/59 mode to phase-
neutral
Circuit 1 Tap
2.00
System Parameters, Sensing
Transformers
Sets the tap for circuit 1 to
2.00 A secondary
Circuit 2 Tap
2.00
System Parameters, Sensing
Transformers
Sets the tap for circuit 2 to
2.00 A secondary
Mode
Percent
Differential
Protection, Current, Phase
Differential (87)
Sets the type of operation
protection to traditional phase
current differential
Slope Mode
Maximum
Protection, Current, Phase
Differential (87)
Sets the element to operate
using maximum restraint
current
Min. Rest.
Pickup (MOT)
0.10
Protection, Current, Phase
Differential (87)
Sets the minimum amount of
operate current required for a
trip to 0.10x tap
Restraint
Slope 1 (%)
20
Protection, Current, Phase
Differential (87)
Sets the 1
st
slope of the
restraint characteristic to 20%
2
nd
Slope
Pickup (MOT)
3.00
Protection, Current, Phase
Differential (87)
The 2
nd
slope is active when
the measured maximum
restraint current is greater 3x
tap
Restraint
Slope 2 (%)
40
Protection, Current, Phase
Differential (87)
Sets the 2
nd
slope of the
restraint characteristic to 40%
Time Delay
(ms)
100
Protection, Current, Phase
Differential (87)
Sets the trip time delay to 100
ms
Step 2: Use BESTCOMSPlus to configure the BESTlogicPlus programmable logic shown in Figure
66-1.
• Blocking is disabled.
• OUT1 closes for 87 Trip.
• OUT2 closes for 87 Pickup.
• Fault recording is enabled.

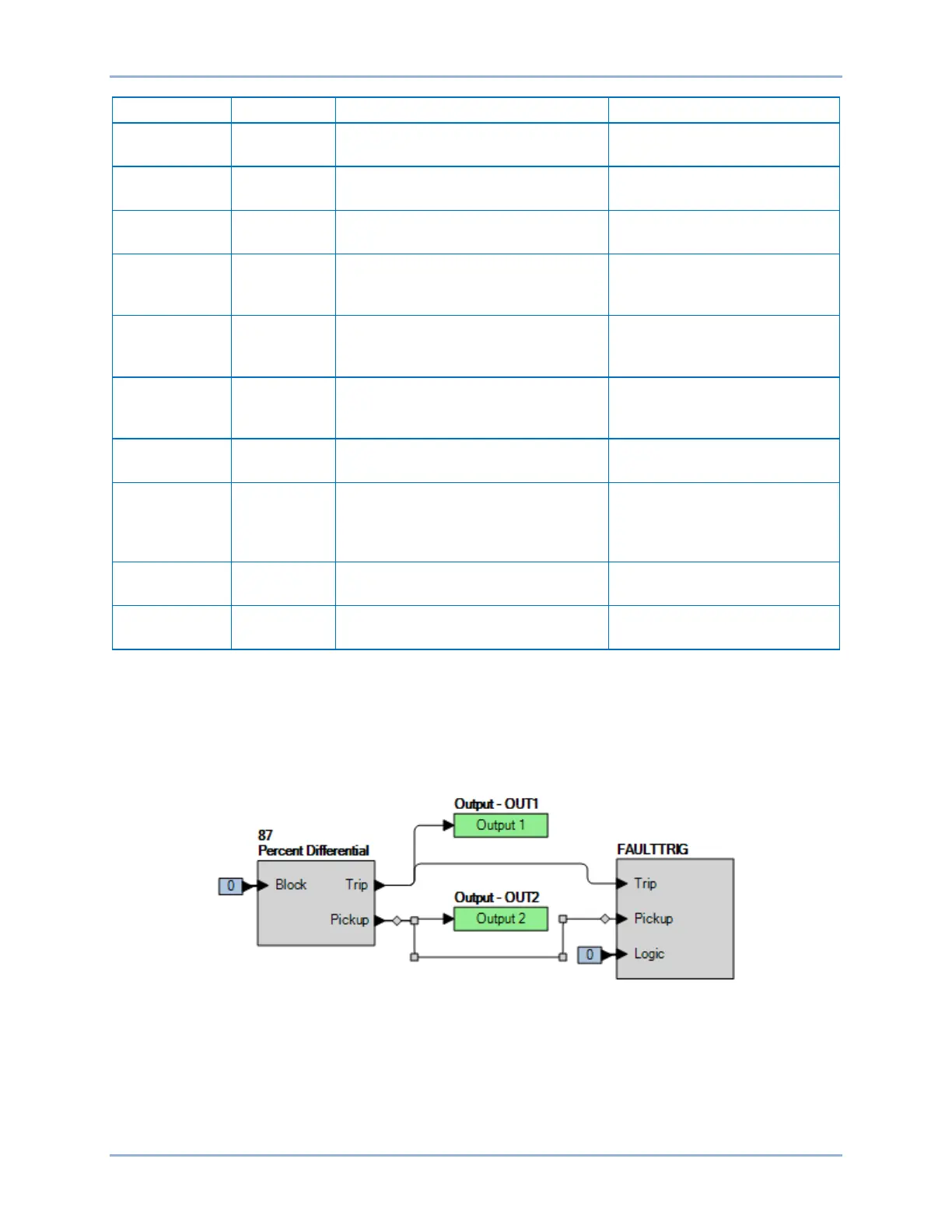

Figure 66-1. BESTlogicPlus Settings (87R)
Step 3: Prepare to monitor the 87R function operation. Operation can be verified by monitoring OUT2
(see Figure 66-1).
Step 4: To test the Minimum Restrained Pickup setting, connect two balanced three-phase current
sources to the BE1-11m in ABC rotation: 0.5∠0°, 0.5∠–120°, 0.5∠120° amps to terminals D1
through D6 and 0.5∠180°, 0.5∠60°, 0.5∠–60° amps to terminals F1 through F6 (0.25x tap).
