Time Curve Characteristics BE1-11m

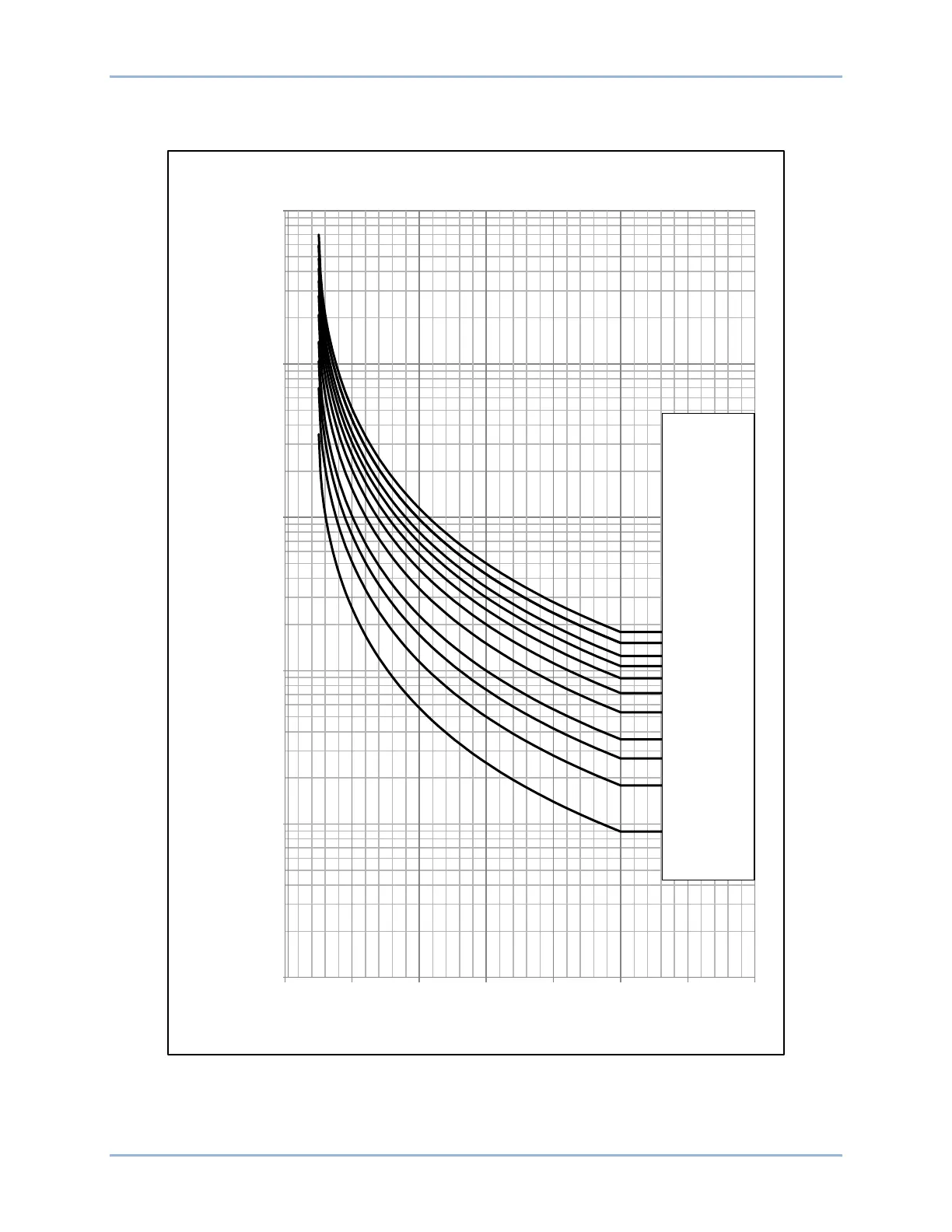

The standard curve is illustrated in Figure 82-26.
Figure 82-26. 49TC Standard Curve
0.1
1
10
100
1000
10000
0 2 4 6 8 10 12 14
TIME IN SECONDS
Multiple of Overload Pickup
T
I
M
E
D
I
A
L
20
17
14
12
4
10
8
6
3
2
1
