83-10 9424200996
RTD Module BE1-11m

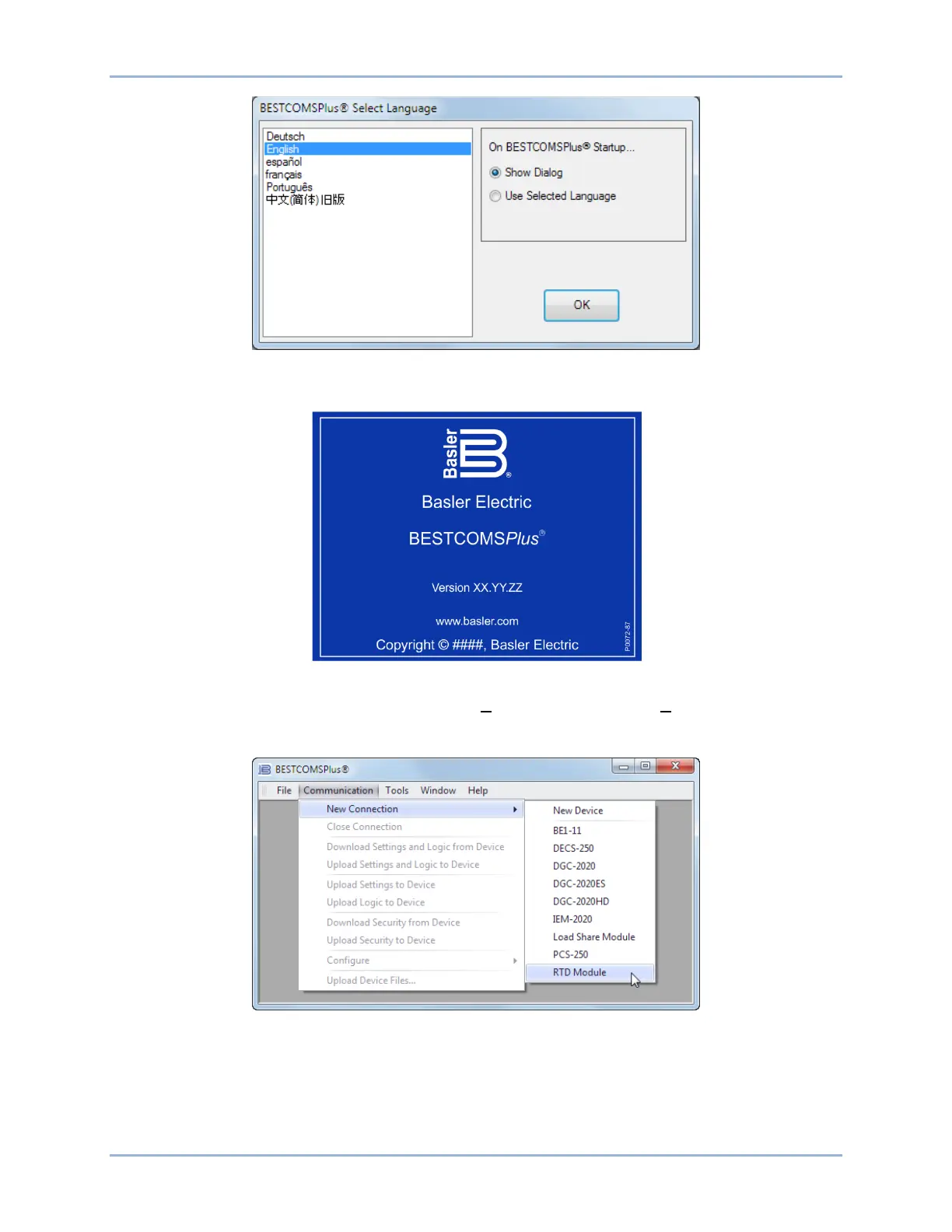

Figure 83-9. BESTCOMSPlus Select Language Screen
The BESTCOMSPlus splash screen is shown for a brief time. See Figure 83-10.
Figure 83-10. BESTCOMSPlus Splash Screen
The BESTCOMSPlus platform window opens. Select New Connection from the Communication pull-down
menu and select RTD Module. See Figure 83-11. The RTD Module plugin is activated automatically after
connecting to an RTD module.
Figure 83-11. Communication Pull-Down Menu
The RTD Module Connection screen shown in Figure 83-12 appears. Under Device Discovery, click the
Ethernet button.
