BE1-11m Instantaneous Overcurrent (50) Protection

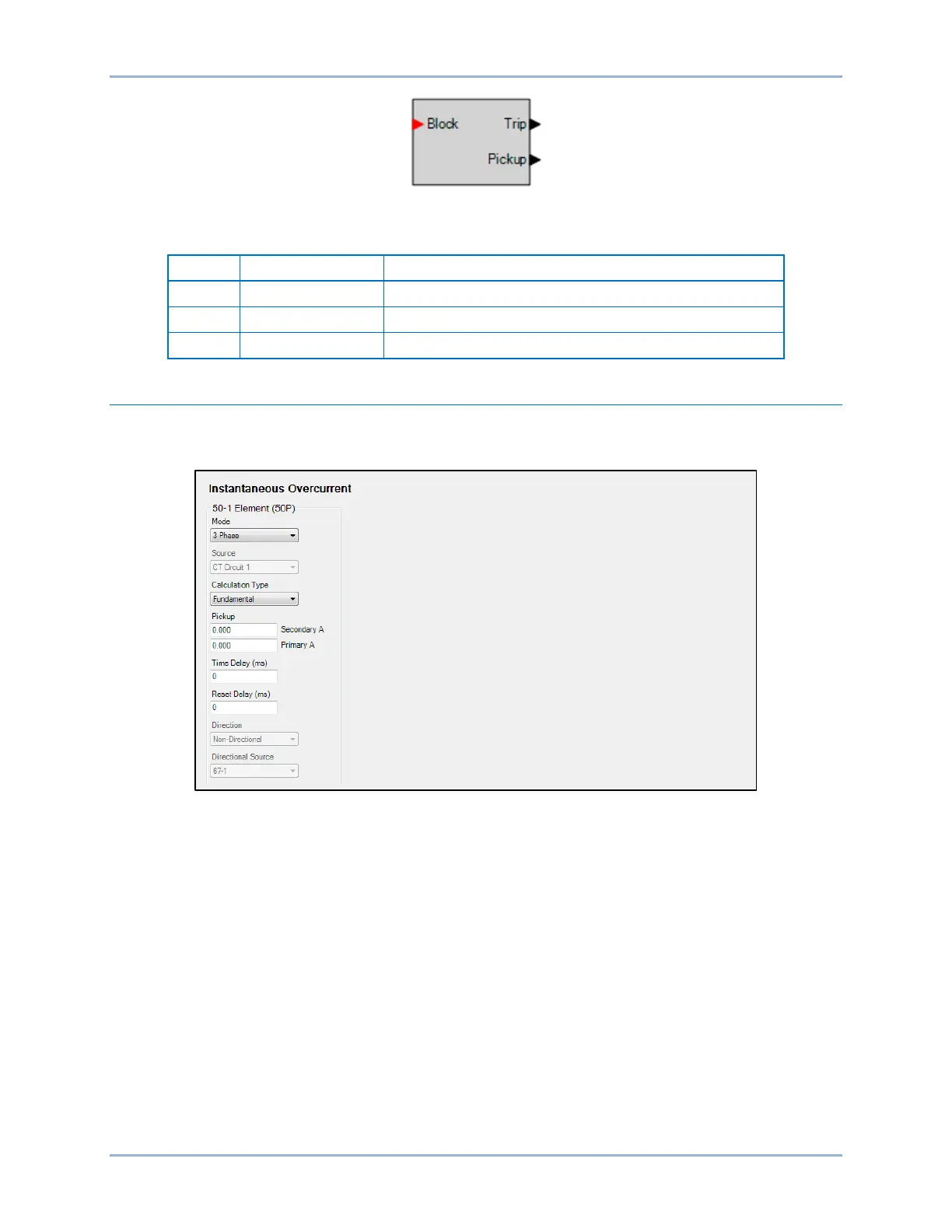

Figure 12-1. Instantaneous Overcurrent Element Logic Block
Table 12-1. Logic Inputs and Outputs
Name
Logic Function
Purpose
Block
Input
Disables the 50 function when true
Trip
Output
True when the 50 element is in a trip condition
Pickup
Output
True when the 50 element is in a pickup condition
Operational Settings
Instantaneous overcurrent element operational settings are configured on the Instantaneous Overcurrent
(50) settings screen (Figure 12-2) in BESTCOMSPlus.
Figure 12-2. Instantaneous Overcurrent Settings Screen
