Baudoulin 6 M26.2 - A100 - Engine Description

- 1/1 -
A100 - Engine description 6 M26.2
00339 - Edition 01 -September 11
Description
Non-contractual illustrations
2
1
30
2728
29
29
5
9
12
1
30
13 214
22
151617
6
30
7
3
2’
19
18
21
4
10 11
20 4 18
19
30
21
2
2
23
23’
2526 24
8

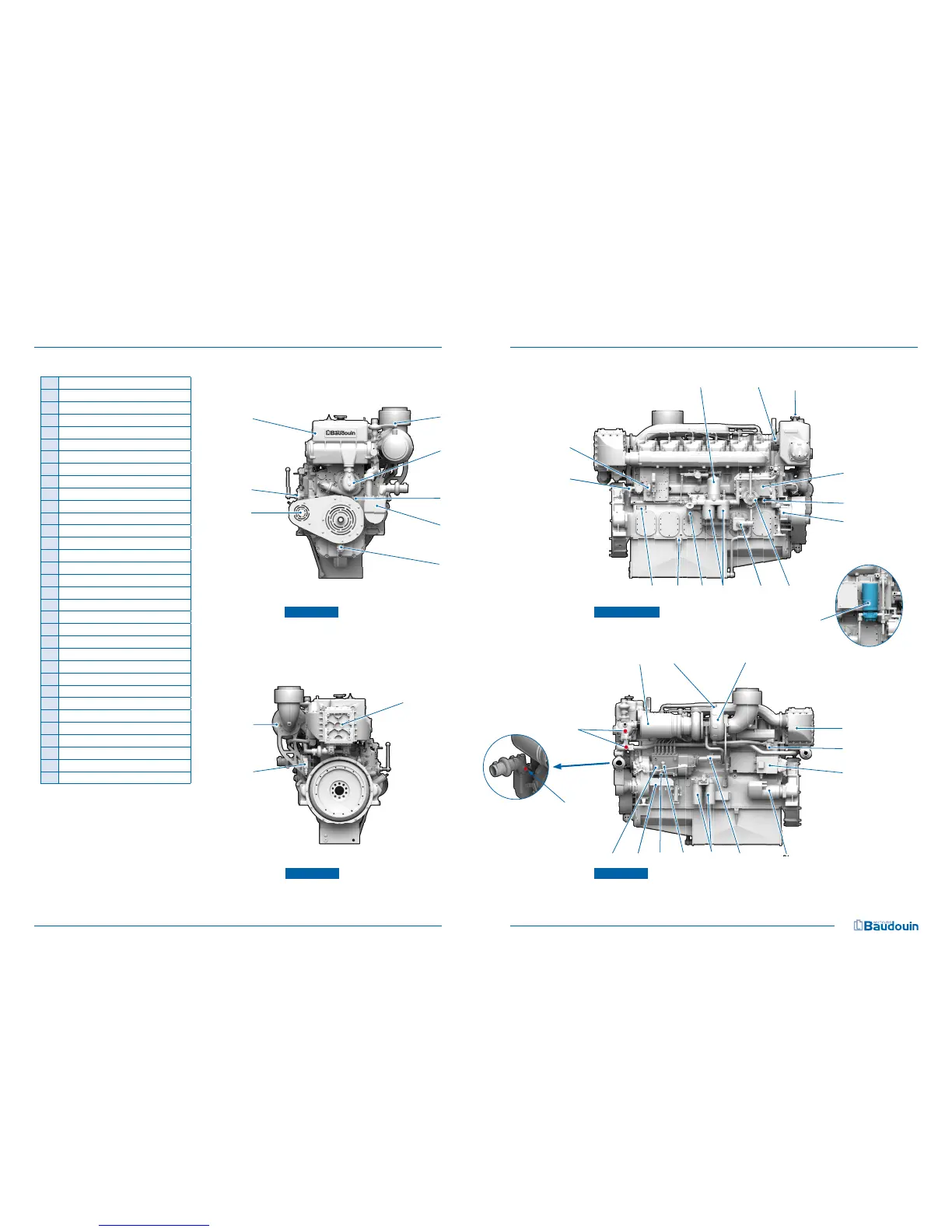

Rep Description
1 Charging alternator
2 Draining pump
2’ Electric oil draining pump (optional)
3 Fresh water/raw water exchanger
4 Fresh water circuit vent plug
5 Fresh water pump (cooling)
6 Raw water pump (cooling)
7 Fuel transfer pump (option)
8 Engine safety devices
9 Centrifugal oil fi lter
10 Thermostat housing
11 Coolant fi lling cap
12 Oil cooler
13 Blow-by vent pipe
14 Oil fi lter
15 Engine oil fi ller cap
16 Oil dipstick
17 Engine identifi cation plate
18 Turbocharger
19 Supercharging air coolant
20 Dry air fi lter
21 Electrical connexion cabinet
22 Starter
23 Stop solenoïd (engine stop)
23’ Actuator (electronic control) (optional)
24 Fuel fi lter
25 Fuel circuit priming pump
26 Fuel feed pump
27 Fuel connection terminal block
28 Injection pump
29 Zinc anode
30 Drainage valves
Front view Starboard side view
Rear view Port side view
