Cooling circuit recommendation
To provide effective protection of the engine against freezing,
chemical and galvanic corrosion, cavitation and depositing, it
is IMPERATIVE that you use coolant as dened in technical
documentation DT 03.G01 provided with the engine. These
products are available from the S. I. Moteurs Baudouin
network.
Total circuit capacity
Engine 6 M26.2: 79 litres
Cooling circuit
The engine is cooled by two circuits:
b by a coolant circulating in a closed circuit (HT circuit),
b by raw water (standard equipment) circulating in an open
circuit (LT circuit).
The closed circuit circulation pump situated on the front side
of the engine feeds the oil cooler, cylinder liners,
turbochargers and cylinder heads.
The coolant temperature is controlled by 2 thermostatic
valves.

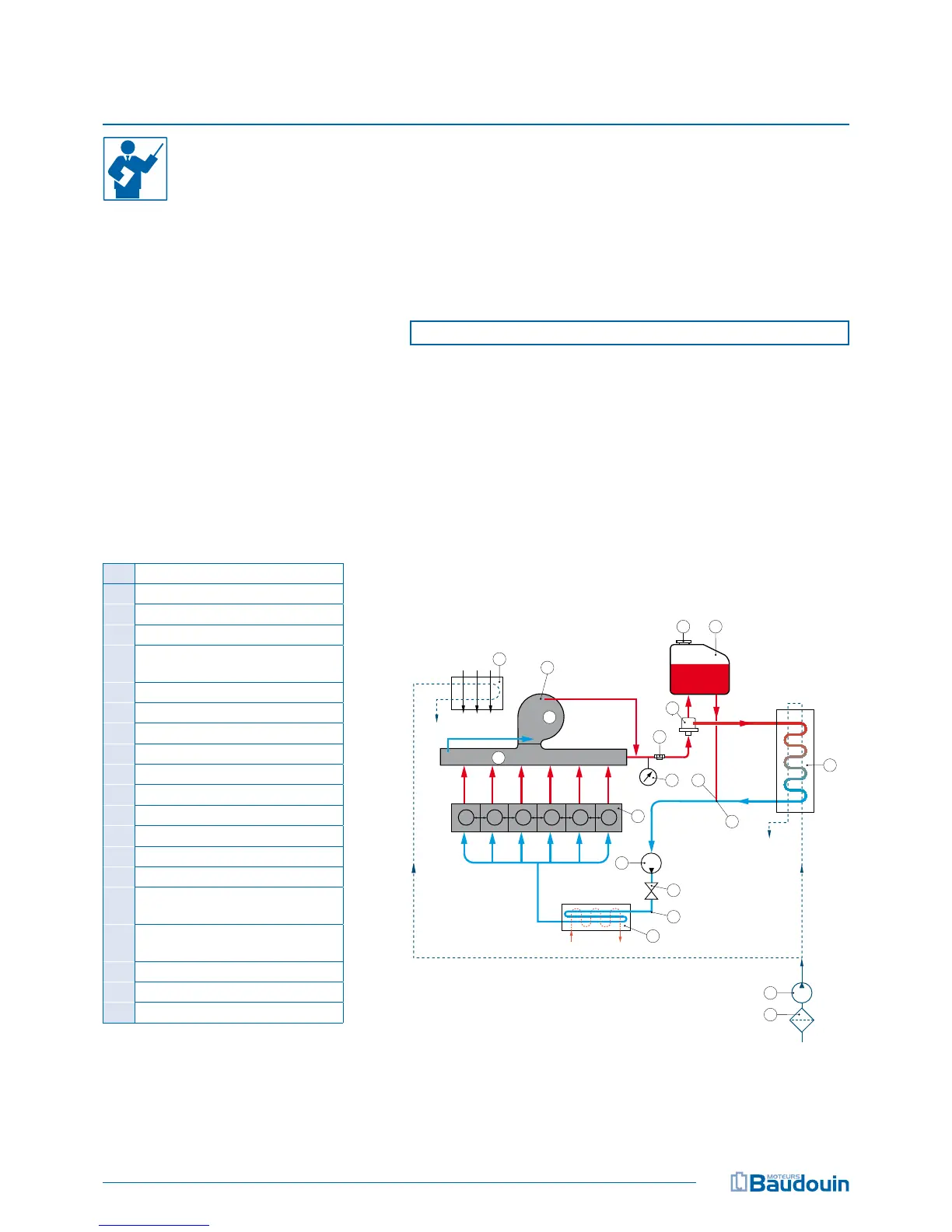

DT 03.G01
Rep Description
1 Turbocharger
2 Cylinder/cylinder head block
3 Engine oil cooler
4 Fresh water circuit ller/
pressurised cap
5 Expansion tank
6 Heater return plug (option)
7 Fresh water pump
8 Water temperature thermometer
9 Water temperature alarm switch
10 Heater connection plug (option)
11 Thermostat
12 Heat exchanger
13 Cooled exhaust manifold
14 Supercharger air cooler
15 Safety raw water pump exit
(option)
16 Safety raw water pump intake
(option)
17 Cut-off valve
18 Raw water pump
19 Raw water lter
Oil
To RHR
Raw
water
Air
12
3
2
10
4 5
14
16
Raw water
output
8
6
7
17
18
19
11
1
13
9
15
