Maintenance
D500 - Maintenance operations
Every 800 hours (P1 Service)
Every 600 hours (P2 Service)
M2
Non-contractual illustrations
PR Catalogue
see chapters
04
05
08

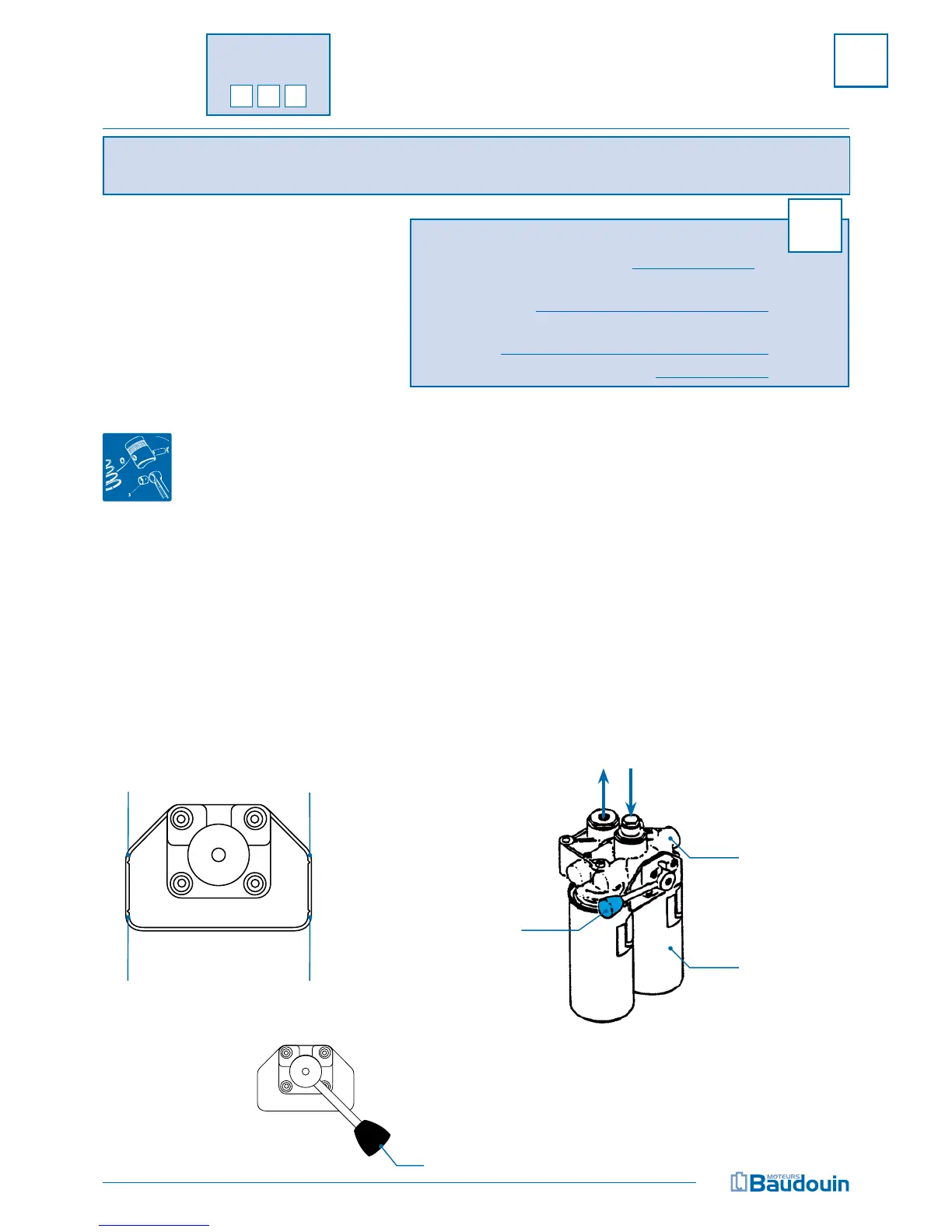

Replacing fuel cartridges (ref. 15 05 063 0F)
b Close isolation valves.
b Remove the lter cartridge with an appropriate wrench.
b Clean the seal seating.
b Oil the seal on the new cartridge.
b Screw cartridge in place by hand until contact with seal is
made.
b Tighten the cartridge by ¾ turn maximum.
Operating mode
b Using the right-hand cartridge
Bleed the right-hand cartridge:
v Unscrew the bleed screws located on the fuel lter head
(right-hand side).
v Move the lever to the “R” bleed position.
SAFETY WARNING
Users should carefully read the safety instructions prior to any intervention.
The engine warranty is conditioned
on the exclusive use of S. I. Moteurs
Baudouin OEM lters.
Lever in "R "
operation position
(right-hand cartridge
in service)
Right-hand
cartridge
Bleed right-hand
cartridge
Fuel outlet Fuel inlet
v Use the hand priming pump until the fuel runs without any
air bubbles,
v Screw the bleed screws back on.
Lever in "R " bleed position (bleed
the right-hand cartridge)
Catalogue
P.R.
05
Summary of maintenance operations
b fuel cartridges replacement 1-2/4
b replacement of the water separator
lter cartridge 3/4
b replacement of the centrifugal lter
cartridge 3/4
b replacement of the dry air lter 4/4
M2
Fill in the maintenance table on sheet D1000
D
G
G
D
on on
bleed bleed
