Maintenance
D400 - Maintenance operations
After 400 hours (P1 Service)
After 300 hours (P2 Service)
M1
Non-contractual illustrations

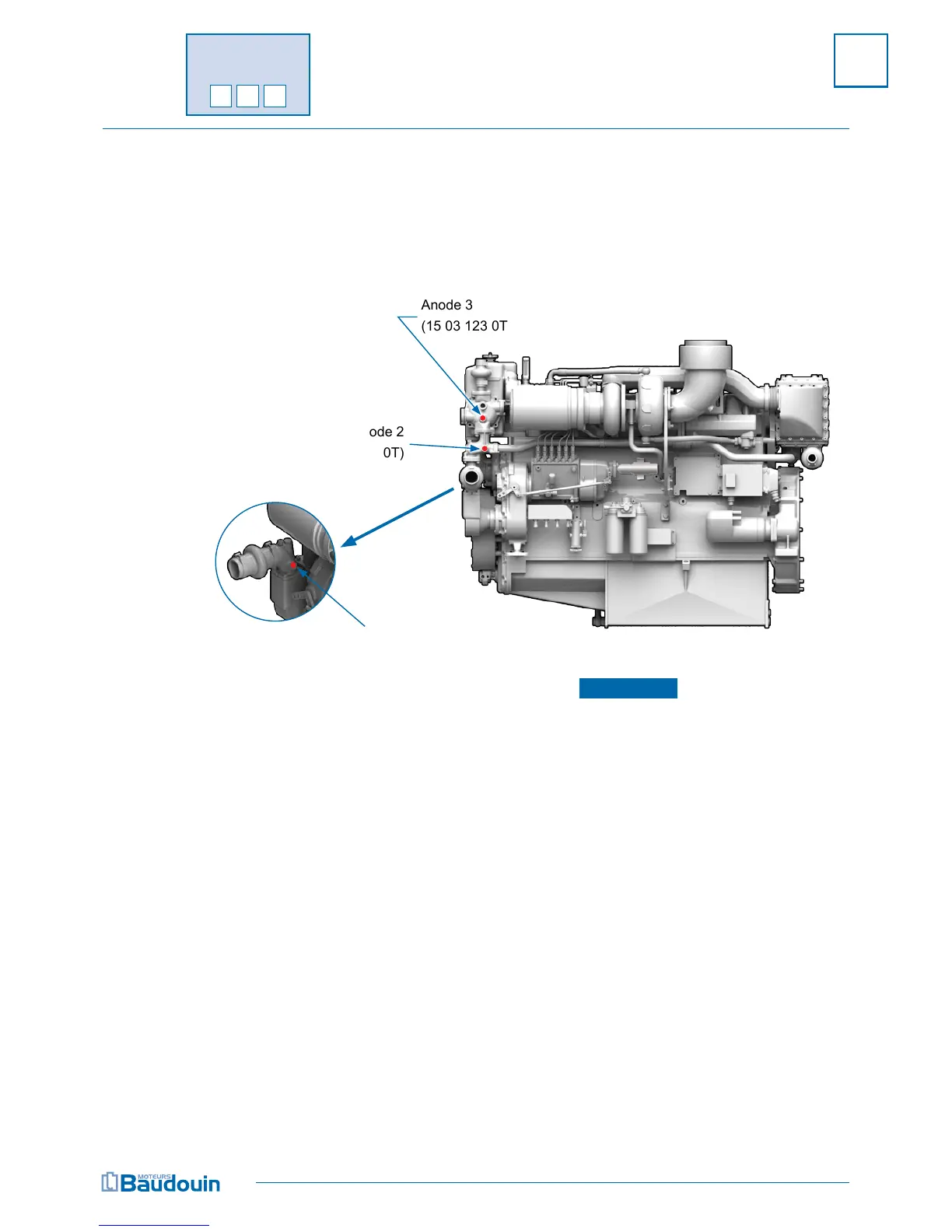

b The anodes positioned in the raw water cooling circuit are
represented in the illustration below in the order of ow of the
RW circuit (fore-port side):
v Anode 1 located in the RW suction tube,
v Anode 2 located in the RW port-starboard proportioning
valve,
v Anode 3 located in the RW inlet/outlet cap.
Anode 3
(15 03 123 0T)
Anode 2
(15 03 123 0T)
Anode 1
(16 08 158 0D)
Port side view
M1 Final operations
b Let the engine run and check that the circuits are leakproof.
b Check the engine oil level, with engine stopped.
b Top up if necessary to bring the level up to 3mm below the
maximum level on the dipstick.
b Carry out the safety checks.
PR Catalogue
see chapters
03
04
05
To Next Page
